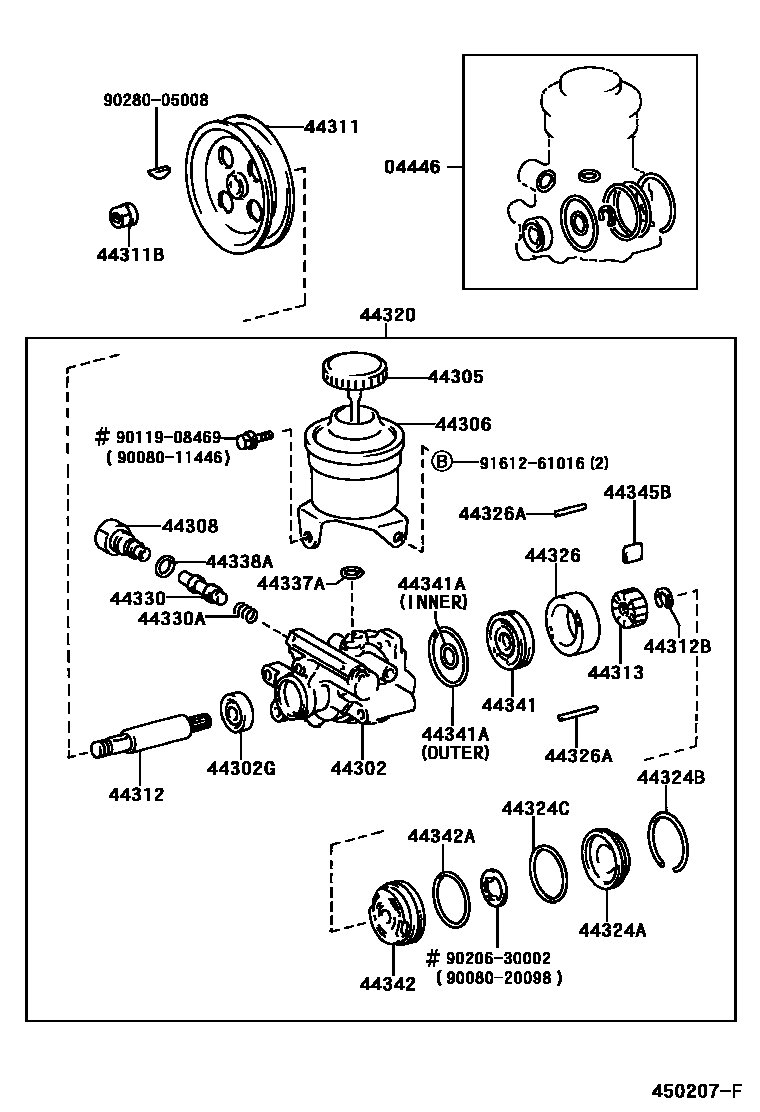

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0005 1 0006 1

04446GASKET KIT, POWER STEERING PUMP

main04446-0B020iRZF81,82..GL200010-200503

main04446-0B030iLF61,81,85200306-200503

main04446-10021iKF80..MA,TAIW;KF60,72,82..LUB,T2199612-200501

main04446-10022iKF80..SHRW200501-200612

main04446-26030iLF82..RHD;LF60,7#,80199612-200501

main04446-30120iRZF84,85..LHD199911-200501

main04446-60210iRZF84,85..LHD200501-200612

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-04030iRZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200208-200503

main44302-04050iLF61,81,85200004-200503

main44302-0B010iKF7#,82..(DLX,GL)..RHD;KF80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)199810-200601

main44302-26012iRZF84,85..LHD199911-200612

main44302-30110iLF82..RHD;LF60,7#,80199612-200501

main44302-60030iKF80..SHRW..TAIW199612-200612

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90080-31070iLF61,81,85200009-200503

main90080-31095iKF82..RHD;KF72,80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)200206-200412

main90311-17004iLF82;LF60,80..GEN199612-200410

main90311-17007iRZF71,80,81,84,85199911-200503

main90311-17008iLF82200410-200501

main90311-17011iRZF84,85..LHD200501-200612

main90311-18007iKF60,80..TAIW199612-200412

main90311-18015iLF61,81,85200004-200009

main90311-18017iKF80..SHRW200501-200612

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28020iLF82,RZF82;LF6#,80,81,85,RZF61,80,81,84,85..GEN,SA,TAIW199612-200612

sub44305-28050

main44305-50010iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

sub44305-50020

44306RESERVOIR SUB-ASSY, VANE PUMP OIL

main44306-38010iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200601

main44306-38050iKF80..SHRW200505-200612

44308UNION SUB-ASSY, PRESSURE PORT

main44308-14041iLF82;LF60,80..GEN199612-200501

main44308-26041iLF85,RZF84,85199911-200612

main44308-38010iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

main44308-51010iLF61,81,RZF61,80,81,82..DLX,GL,STD200004-200503

44311PULLEY, VANE PUMP

main44311-26010iRZF71,80,81,84,85199911-200612

main44311-26060iLF61,81,85200004-200503

main44311-30150iLF82..RHD;LF60,7#,80199612-200501

main44311-38020iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iLF60,80;KF80..STD..LHD;KF70,80,RZF81..DLX,GL,GLX;KF60,72,82,LF61,7#,81,82,85,RZF71,80,84,85..(LUB,T2)..(GEN,SA,TAIW)199804-200612

main90179-12022iLF60,80;KF70,80,LF70..DLX,GL199612-199804

44312SHAFT, VANE PUMP

main44312-06030iLF61,81,85200201-200503

main44312-12030iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

main44312-26010iRZF71,80,81,84,85199911-200612

main44312-28010iLF82;LF60,80..GEN199612-200501

main44312-32020iLF61,81,85200004-200201

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90080-52137iKF82,LF61..GEN,SA;KF72,80,LF81,85..(DLX,GL,GLX)..(GEN,MA,PHL,SA,VN)200009-200601

main90520-10003iKF60,80..(SCB,SHRV)..LHD199612-200612

main90520-15001iRZF71,80,81,84,85199911-200212

sub90520-15005

main90520-15005iLF82,RZF82;LF60,80,RZF61,80,81,84,85..GEN,SA,TAIW199612-200612

44313ROTOR, VANE PUMP

main44313-02160iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200009-200503

NO MARK

main44313-02170iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200009-200503

MARK 1

main44313-02180iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200009-200503

MARK 2

main44313-02190iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200009-200503

MARK 3

main44313-02200iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200009-200503

MARK 4

main44313-22040iLF60,80..GEN;KF60,72,82,LF82..LUB,T2;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

NO MARK

main44313-22050iLF60,80;KF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82,LF7#,82..(LUB,T2)..(GEN,TAIW)199612-200612

MARK 1

main44313-22060iKF80..SHRW..TAIW199612-200612

MARK 2

main44313-22070iLF60,80..GEN;KF60,72,82,LF82..LUB,T2;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

MARK 3

main44313-22080iLF60,80;KF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82,LF7#,82..(LUB,T2)..(GEN,TAIW)199612-200612

MARK 4

main44313-26060iLF61,81,85,RZF8#199911-200612

NO MARK

main44313-26070iLF61,81,85,RZF8#199911-200612

MARK 1

main44313-26080iLF61,81,85,RZF8#199911-200612

MARK 2

main44313-26090iRZF84,85..LHD199911-200612

MARK 3

main44313-26100iLF61,81,85,RZF8#199911-200612

MARK 4

44320PUMP ASSY, VANE

main44320-0B010iKF7#,82..(DLX,GL)..RHD;KF80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)199810-200601

main44320-0B030iRZF61,80,81,82..DLX,GL,STD200010-200503

main44320-0B050iRZF85..RHD200306-200503

main44320-0B060iLF85200306-200503

main44320-35540iRZF84,85..LHD199911-200501

main44320-38020iLF82..RHD;LF60,7#,80199612-200501

main44320-38050iKF60,80..TAIW199612-200612

main44320-38070iRZF84,85..LHD200501-200612

44324AHOUSING, PUMP, REAR

main44324-12031iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

main44324-26031iRZF71,80,81,84,85199911-200612

main44324-28030iLF61,81,85200004-200503

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

44324CRING, O(FOR PUMP HOUSING REAR)

main90080-30112iKF82..RHD;KF72,80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)200206-200601

main90301-53006iKF80..STD..LHD;KF60,72,82..LUB,T2;KF70,80..DLX,GL,GLX199612-200210

sub90301-53007

main90301-53007iKF80..SHRW..TAIW200210-200612

44326RING, CAM(FOR VANE PUMP)

main44325-06110iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200009-200503

NO MARK

main44325-06120iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200009-200503

MARK 1

main44325-06130iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200009-200503

MARK 2

main44325-06140iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200009-200503

MARK 3

main44325-06150iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200009-200503

MARK 4

main44325-12010iLF82..RHD;LF60,7#,80199612-200501

NO MARK

main44325-12020iLF82;LF60,80..GEN199612-200501

MARK 1

main44325-12030iLF82..RHD;LF60,7#,80199612-200501

MARK 2

main44325-12040iLF82..RHD;LF60,7#,80199612-200501

MARK 3

main44325-12050iLF82..RHD;LF60,7#,80199612-200501

MARK 4

main44325-12110iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

NO MARK

main44325-12120iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

MARK 1

main44325-12130iKF80..SHRW..TAIW199612-200612

MARK 2

main44325-12140iKF80..SHRW..TAIW199612-200612

MARK 3

main44325-12150iKF60,72,82..LUB,T2;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

MARK 4

main44325-32270iLF61,81,85,RZF8#199911-200612

NO MARK

main44325-32280iRZF84,85..LHD199911-200612

MARK 1

main44325-32290iRZF84,85..LHD199911-200612

MARK 2

main44325-32300iRZF84,85..LHD199911-200612

MARK 3

main44325-32310iRZF84,85..LHD199911-200612

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90080-25027iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200009-200503

L=23.3,OD=4.0

main90250-04047iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200612

L=28,OD=4.0

main90250-04049iKF60,72,82..LUB,T2;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

L=43,OD=4.0

main90250-04071iLF61,81,85,RZF8#199911-200612

L=23.3,OD=4.0

main90250-05008iLF82;LF60,80..GEN199612-200501

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-0B010iKF7#,82..(DLX,GL)..RHD;KF80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)199810-200601

MARK A

main44330-0B020iKF7#,82..(DLX,GL)..RHD;KF80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)199810-200601

MARK B

main44330-0B030iKF82;KF72,80..(DLX,GL)..RHD199810-200601

MARK C

main44330-0B040iKF7#,82..(DLX,GL)..RHD;KF80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)199810-200601

MARK D

main44330-0B050iKF82;KF72,80..(DLX,GL)..RHD199810-200601

MARK E

main44330-0B060iKF82;KF72,80..(DLX,GL)..RHD199810-200601

MARK F

main44330-12131iLF82..RHD;LF60,7#,80199612-200212

MARK A

sub44330-32670

main44330-12141iLF82..RHD;LF60,7#,80199612-200212

MARK B

sub44330-32680

main44330-12151iLF82..RHD;LF60,7#,80199612-200212

MARK C

sub44330-32690

main44330-12161iLF82..RHD;LF60,7#,80199612-200212

MARK D

sub44330-32700

main44330-12171iLF82..RHD;LF60,7#,80199612-200212

MARK E

sub44330-32710

main44330-12181iLF82..RHD;LF60,7#,80199612-200212

MARK F

sub44330-32720

main44330-20010iKF60,80..TAIW199612-200210

MARK A

sub44330-35191

main44330-20020iKF60,80..TAIW199612-200210

MARK B

sub44330-35201

main44330-20030iKF70,80..DLX,GL199612-200210

MARK C

sub44330-35211

main44330-20040iKF70,80..DLX,GL199612-200210

MARK D

sub44330-35221

main44330-20050iKF70,80..DLX,GL199612-200210

MARK E

sub44330-35231

main44330-20060iKF70,80..DLX,GL199612-200210

MARK F

sub44330-35241

main44330-28011iLF61,81,85,RZF61,8#..DLX,GL,STD199911-200612

MARK A

main44330-28021iLF61,81,85,RZF61,8#..DLX,GL,STD199911-200612

MARK B

main44330-28031iLF61,81,85,RZF61,8#..DLX,GL,STD199911-200612

MARK C

main44330-28041iLF61,81,85,RZF61,8#..DLX,GL,STD199911-200612

MARK D

main44330-28051iLF61,81,85,RZF61,8#..DLX,GL,STD199911-200612

MARK E

main44330-28061iLF61,81,85,RZF61,8#..DLX,GL,STD199911-200612

MARK F

main44330-32670iLF82;LF60,80..GEN200208-200501

MARK A

main44330-32680iLF82;LF60,80..GEN200208-200501

MARK B

main44330-32690iLF82;LF60,80..GEN200208-200501

MARK C

main44330-32700iLF82;LF60,80..GEN200208-200501

MARK D

main44330-32710iLF82;LF60,80..GEN200208-200501

MARK E

main44330-32720iLF60,80,82200212-200501

MARK F

main44330-35191iKF80..SHRW..TAIW200210-200612

MARK A

main44330-35201iKF80..SHRW..TAIW200210-200612

MARK B

main44330-35211iKF60,80..(SCB,SHRV)..LHD200210-200612

MARK C

main44330-35221iKF80..SHRW..TAIW200210-200612

MARK D

main44330-35231iKF80..SHRW..TAIW200210-200612

MARK E

main44330-35241iKF80..SHRW..TAIW200210-200612

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50247iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200004-200503

main90080-50329iKF82..RHD;KF72,80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)200206-200601

main90501-12103iKF70,80..DLX,GL,GLX;KF80,LF60..(SCB,SHRV)..STD;KF60,72,82,LF7#,80,82..LUB,T2199612-200612

main90501-13034iRZF84,85..LHD199911-200612

44337UNION, POWER STEERING SUCTION PORT

main44337-20050iRZF61,8#..DLX,GL,STD199911-200612

main44337-22130iLF61,81,85200004-200503

main44337-38010iLF82;LF60,80..GEN199612-200501

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30049iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200009-200601

main90301-11016iRZF84,85..LHD;KF80..SHRW..TAIW199612-200612

main96711-19013iLF82;LF60,80..GEN199612-200501

44338ARING, O(FOR PRESSURE PORT UNION)

main90080-30074iKF82,LF61,RZF61,82;KF72,80,LF81,85,RZF80,81,85..(DLX,GL)..(GEN,MA,SA)200009-200601

ID=19.2,OD=22.3

main90301-19013iKF60,80,RZF84,85..TAIW199612-200210

ID=19.2,OD=22.3

sub90301-19018

main90301-19018iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

ID=19.2,OD=22.3

main90301-22001iLF82..RHD;LF60,7#,80199612-200501

OD=25.5,ID=22.5

main96711-19014iLF82..RHD;LF60,7#,80199612-200501

OD=17.0,ID=13.0

44341PLATE, VANE PUMP SIDE, FRONT

main44341-0A010iKF82..RHD;KF72,80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)200206-200601

main44341-32010iKF80..STD..LHD;KF60,72,82..LUB,T2;KF70,80..DLX,GL,GLX199612-200612

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90080-30109iKF82;KF72,80..(DLX,GL)..RHD200206-200601

INNER

main90080-30111iKF82..RHD;KF72,80..(DLX,GL,GLX)..(GEN,MA,PHL,VN)200206-200601

OUTER

main90301-25001iKF60,80..TAIW199612-200210

INNER

sub90301-25008

main90301-25008iKF80..SHRW..TAIW200210-200612

INNER

main90301-52001iKF80..STD..LHD;KF60,72,82..LUB,T2;KF70,80..DLX,GL,GLX199612-200612

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLF82..RHD;LF60,7#,80199612-200501

main44342-0A010iKF82;KF72,80..(DLX,GL)..RHD200206-200601

main44342-26020iLF61,81,85,RZF61,8#..DLX,GL,STD199911-200612

main44342-32010iKF80..STD..LHD;KF60,72,82..LUB,T2;KF70,80..DLX,GL,GLX199612-200612

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90080-30053iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200004-200503

INNER

main90080-30054iLF61,81,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA)200004-200503

OUTER

main90080-30111iKF82;KF72,80..(DLX,GL)..RHD200206-200601

main90301-18007iRZF84,85..LHD199911-200612

INNER

main90301-47001iRZF84,85..LHD199911-200612

OUTER

main90301-52001iKF60,80..TAIW199612-200612

main90301-53002iLF82..RHD;LF60,7#,80199612-200501

44345BPLATE, VANE PUMP

main44345-06060iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200201-200503

L=15.000

main44345-06070iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200201-200503

L=14.998

main44345-06080iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200201-200503

L=14.996

main44345-06090iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200201-200503

L=14.994

main44345-06100iLF61,81,85,RZF71,80,81,85..GEN,PHL,SA200201-200503

L=14.992

main44345-12010iLF60,80..GEN;KF60,72,82,LF82..LUB,T2;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

L=14.997

main44345-12020iLF60,80..GEN;KF60,72,82,LF82..LUB,T2;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

L=14.995

main44345-12030iLF60,80;KF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82,LF7#,82..(LUB,T2)..(GEN,TAIW)199612-200612

L=14.993

main44345-12040iLF60,80..GEN;KF60,72,82,LF82..LUB,T2;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

L=14.991

main44345-12050iLF60,80;KF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82,LF7#,82..(LUB,T2)..(GEN,TAIW)199612-200612

L=14.989

main44345-26010iRZF84,85..LHD199911-200612

L=15.000

main44345-26020iRZF84,85..LHD199911-200612

L=14.998

main44345-26030iRZF84,85..LHD199911-200612

L=14.996

main44345-26040iRZF84,85..LHD199911-200612

L=14.994

main44345-26050iRZF84,85..LHD199911-200612

L=14.992

9008011446

main90080-11446

9008020098

main90080-20098

9011908469

main90119-08469

9020630002

main90206-30002

9028005008

main90280-05008

9161261016

main91612-61016

33 parts on this diagram · 3 diagrams in section
