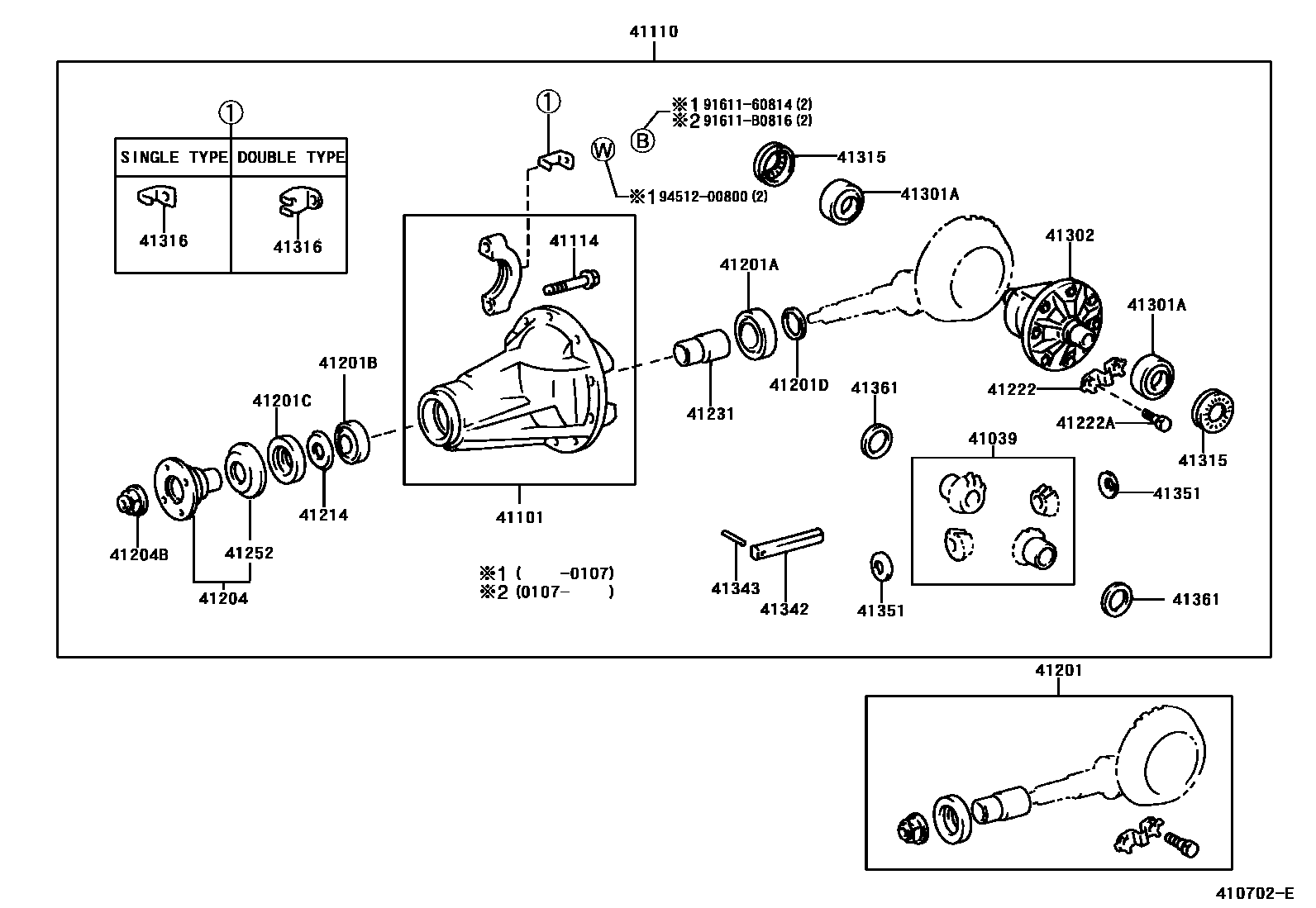

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-0B010iKF60,7#,8#..GEN199612-200612

main41039-28010iLF60,80;KF80,LF72,82..SRF..(DLX,GL,GLX)199612-200612

main41039-34090iRZF71,81,84,85..GEN,PHL,TAIW200005-200612

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iKF60,7#,8#,LF60,7#,80,82199612-200612

main41101-30031iRZF81,82,84,85..GL..(GEN,PHL,TAIW)199911-200612

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0B020iKF60,7#,8#..GEN199612-200612

*FGR=43:9=4.778

main41110-20241iLF60,70,80..GEN199612-200001

*FGR=41:10=4.100

main41110-21020iLF82;LF60,80..GEN199804-200501

*FGR=43:10=4.300

main41110-27100iKF82..LHD;KF60,80..MA,TAIW199804-200707

*FGR=43:9=4.778

main41110-28070iRZF84,85..LHD199911-200612

*FGR=43:10=4.300

main41110-30490iRZF71,81200010-200501

*FGR=41:9=4.555

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iRZF71,81,84,85..GEN,PHL,TAIW199911-200612

main90105-12240iKF80,LF80..MA,PHL199612-200612

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29217iLF60,72,82..5F..RHD;LF80..5F..(GLX,STD);LF80..(DLX,GL)..(MA,PHL)199804-200501

*FGR=43:10=4.300

main41201-29865iKF60..RHD199612-200612

*FGR=43:9=4.778

main41201-39555iLF60,70,80..GEN199612-200001

*FGR=41:10=4.100

main41201-80004iRZF84,85..LHD199911-200612

*FGR=43:10=4.300

main41201-80015iRZF71,81200010-200501

*FGR=41:9=4.556

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iKF60,7#,8#,LF60,72,80,82,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199911-200612

main90366-35064iKF60,7#,8#,LF60,72,80,82200203-200612

main90366-35067iKF60,7#,8#,LF60,7#,80,82199612-200203

sub90366-35064

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30055iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199911-200612

main90311-38133iKF60,7#,8#,LF60,7#,80,82199612-200107

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

T=2.36,MARK 05

main90201-35397iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199612-200612

T=2.39,MARK 06

main90201-35398iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199612-200612

T=2.42,MARK 07

main90201-35399iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

T=2.43,MARK 08

main90201-35400iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

T=2.48,MARK 09

main90201-35401iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199612-200612

T=2.51,MARK 10

main90201-35402iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

T=2.54,MARK 11

main90201-35403iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199612-200612

T=2.57,MARK 12

main90201-35404iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

T=2.60,MARK 13

main90201-35438iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

T=2.63,MARK 14

main90201-35439iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

T=2.66,MARK 15

main90201-35440iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

T=2.69,MARK 16

main90201-35441iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

T=2.72,MARK 17

main90201-35515iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

OD=47,T=2.24,MARK 01

main90201-35516iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

OD=47,T=2.27,MARK 02

main90201-35517iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

OD=47,T=2.30,MARK 03

main90201-35518iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)199612-200612

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iKF60,7#,8#,LF60,7#,80,82,RZF71,81199612-200612

main41204-35050iRZF84,85..LHD199911-200612

41204BNUT (FOR REAR DRIVE PINION)

main90179-18020iKF60,7#,8#,LF60,7#,80,82,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

OD=33.5

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iKF60,7#,8#,LF60,7#,80,82,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iKF80,LF80..MA,PHL199612-200612

main41222-35030iRZF71,81,84,85..GEN,PHL,TAIW199911-200612

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iKF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)199612-200612

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iRZF71,81,84,85..GEN,PHL,TAIW199911-200612

main41231-22020iKF60,7#,8#,LF60,7#,80,82199612-200612

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iRZF84,85..LHD;KF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,MA,PHL199612-200612

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45014iKF60,7#,8#,LF60,7#,80,82199612-200612

main90368-45066iRZF71,81,84,85..GEN,PHL,TAIW199911-200206

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41311-30022iKF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)199612-200612

main41311-30050iRZF81,82,84,85..GL..(GEN,PHL,TAIW)199911-200612

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0B010iKF60,70,80,LF60,70,80199908-200208

main41315-0B010iKF60,7#,8#..GEN200208-200612

(L)

main41315-30010iKF80,LF80..MA,PHL199612-200212

main41315-30010iKF60,7#,8#..GEN200208-200612

(J)

main41315-35010iRZF81,82,84,85..GL..(GEN,PHL,TAIW)199911-200612

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199612-200612

SINGLE TYPE

main41317-30010iRZF84,85..LHD;KF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,MA,PHL199612-200612

DOUBLE TYPE

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0B010iKF60,7#,8#..GEN199612-200612

main41342-22020iRZF84,85..LHD199911-200005

sub41342-22021

main41342-22021iRZF81,82,84,85..GL..(GEN,PHL,TAIW)200005-200612

main41342-30011iKF80..SHRW..TAIW199612-200612

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iKF60,7#,8#,LF60,7#,80,82,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iKF60,7#,8#,LF60,7#,80,82199612-200612

main41351-30060iRZF81,82,84,85..GL..(GEN,PHL,TAIW)199911-200612

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iKF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)199612-200612

T=1.00,MARK 02

main41361-22030iKF60,7#,8#,LF60,72,80,82..GEN,MA,PHL199612-200612

T=1.10,MARK 03

main41361-22040iKF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)199612-200612

T=1.20,MARK 04

main41361-22140iKF60,7#,8#,LF60,7#,80,82199612-200612

T=0.95,MARK 14

main41361-22150iKF80,LF80..MA,PHL199612-200612

T=1.05,MARK 15

main41361-22160iLF60,80..GEN;KF60,7#,82,LF82..LUB,T2;KF80..(SHRV,SRF)..(GEN,MA,TAIW)199612-200612

T=1.15,MARK 16

main41361-30040iRZF71,81,84,85..GEN,PHL,TAIW199911-200612

T=1.0

main41361-30050iRZF71,81,84,85..GEN,PHL,TAIW199911-200612

T=1.1

main41361-30060iRZF71,81,84,85..GEN,PHL,TAIW199911-200612

T=1.2

main41361-30070iRZF81,82,84,85..GL..(GEN,PHL,TAIW)199911-200612

T=1.3

9161160814

main91611-60814

91611B0816

main91611-B0816

9451200800

main94512-00800

27 parts on this diagram · 3 diagrams in section
