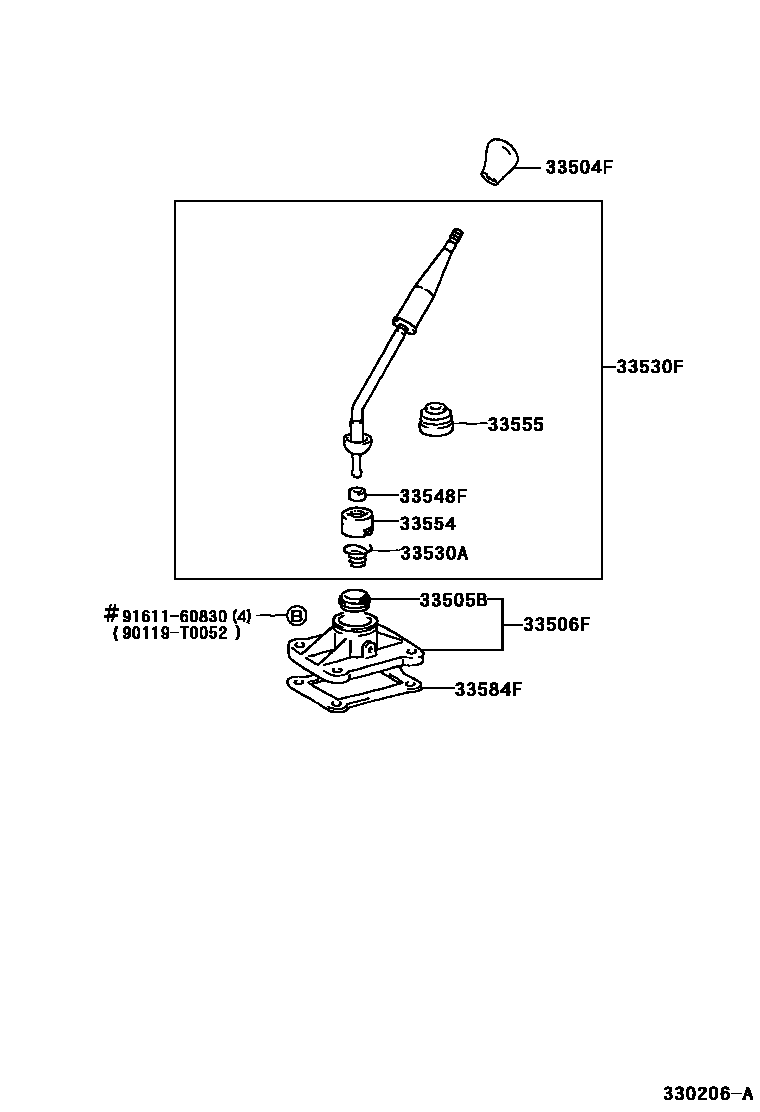

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0B030-B0iLF61,81,85,RZF61,80,81,85..SA200306-200503

BLUISH GRAY,TRIM1#

main33504-0B030-E0iLF81,85,RZF80,81,85..SA200306-200503

ORCHID BROWN,TRIM4#

main33504-27010iKF72,LF82..IV7200102-200208

main33504-27010-B0iKF60,7#,8#,LF60,72,80,82,RZF71,81,85..5F..CBU..(GEN,MA,PHL,TAIW,VN)199612-200707

BLUISH GRAY,TRIM1#

main33504-27010-C0iKF60,80,RZF85..5F..TAIW200104-200210

BLACK,TRIM1#

main33504-27010-E1iKF80..5F..MA;KF72,82,LF82,RZF81,82,85..(SHRV,SRF)..5F..GL200208-200612

ORCHID BROWN,TRIM4#

main33504-27020-B0iKF60,70,80,LF60,80..STD..RHD199612-200001

BLUISH GRAY,TRIM1#

main33542-20100-B0iKF80..4FC..RHD199612-200212

BLUISH GRAY,TRIM1#

sub33542-20100

main33542-20100-E5iKF8#,RZF81..4FC..RHD200208-200503

ORCHID BROWN,TRIM4#

sub33542-20100

main33542-20150-B0iKF80,RZF81..4FC..PHL199810-200707

BLUISH GRAY,TRIM1#

sub33542-20150

main33542-20150-C0iKF80..4FC..TAIW200104-200210

BLACK,TRIM1#

sub33542-20150

main33542-20150-E1iKF8#,RZF82..4FC..GL..LHD200210-200707

ORCHID BROWN,TRIM4#

sub33542-20150

main33542-35140-B0iRZF84,85..4FC199911-200612

BLUISH GRAY,TRIM1#

sub33542-35140

main33542-35140-C0iRZF84,85..4FC200104-200210

BLACK,TRIM1#

sub33542-35140

main33542-35140-E2iRZF84,85..4FC200210-200612

ORCHID BROWN,TRIM4#

sub33542-35140

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,RZF61,80,81,82..5F..(DLX,GL,STD)199612-200707

main33505-35030iLF85,RZF85..5F200109-200612

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0W040iKF82,LF82..5F..RHD;KF60,7#,80,LF60,72,80,RZF71,81,YF60,80..5F200010-200707

TAP

sub33506-35070

main33506-0W040iKF60,7#,8#,LF60,7#,80,82,YF60,80..MTM199812-200406

sub33506-35070

main33506-35070iKF60,70,80,LF60,70,80..MTM199612-199812

main33506-35070iYF60,80200010-200503

AISIN

main33506-35140iLF85,RZF85..5F200109-200612

main33506-35160iLF85,RZF85..5F200108-200109

main33506-38010iLF61,81,RZF80200004-200503

main33506-60030iLF85,RZF85..5F199911-200108

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90502-26007iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200612

main90502-T0001iKF60,7#,8#,LF60,80,82,RZF81..5F..(GEN,MA)200303-200612

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0B010iKF60,7#,8#,LF60,80,82,RZF81..5F..(GEN,MA)200303-200612

main33530-38100iKF60,7#,8#,LF60,7#,80,82,RZF71,81,YF60,80..MTM..RHD199612-200503

main33530-38120iKF60,80,LF80,RZF81,YF60,80..5F..LHD199810-200306

main33530-38130iLF85,RZF85..5F..LHD199911-200612

main33530-38140iLF85,RZF85..RHD200004-200503

main33530-38160iLF81,RZF80..RHD200004-200503

main33530-38170iLF61,81..LHD200004-200503

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iKF60,7#,8#,LF60,80,82,RZF81..5F..(GEN,MA)200303-200612

main33548-31010iKF80..5F..RHD;KF60,7#,82,LF60,80,82,RZF81..5F..GEN199612-200612

33554CAP, SHIFT LEVER

main33554-04030iKF60,7#,8#,LF60,80,82,RZF81..5F..(GEN,MA)200303-200612

main33554-30012iLF85,RZF85,YF60,80..SA199612-200612

main33554-38010iLF61,81,RZF80200004-200503

33555BOOT, SHIFT LEVER

main33555-04010iKF60,7#,8#,LF60,80,82,RZF81..5F..(GEN,MA)200303-200612

sub33555-35040

main33555-35040iLF61,81,RZF80,YF60,80199612-200306

main33555-35100iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200612

main33555-35160iRZF84,85..4FC199911-200612

main33555-60030iLF85,RZF85..5F199911-200612

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-60010iLF85,RZF85..5F199612-200707

90119T0052

main90119-T0052

9161160830

main91611-60830

11 parts on this diagram · 5 diagrams in section
