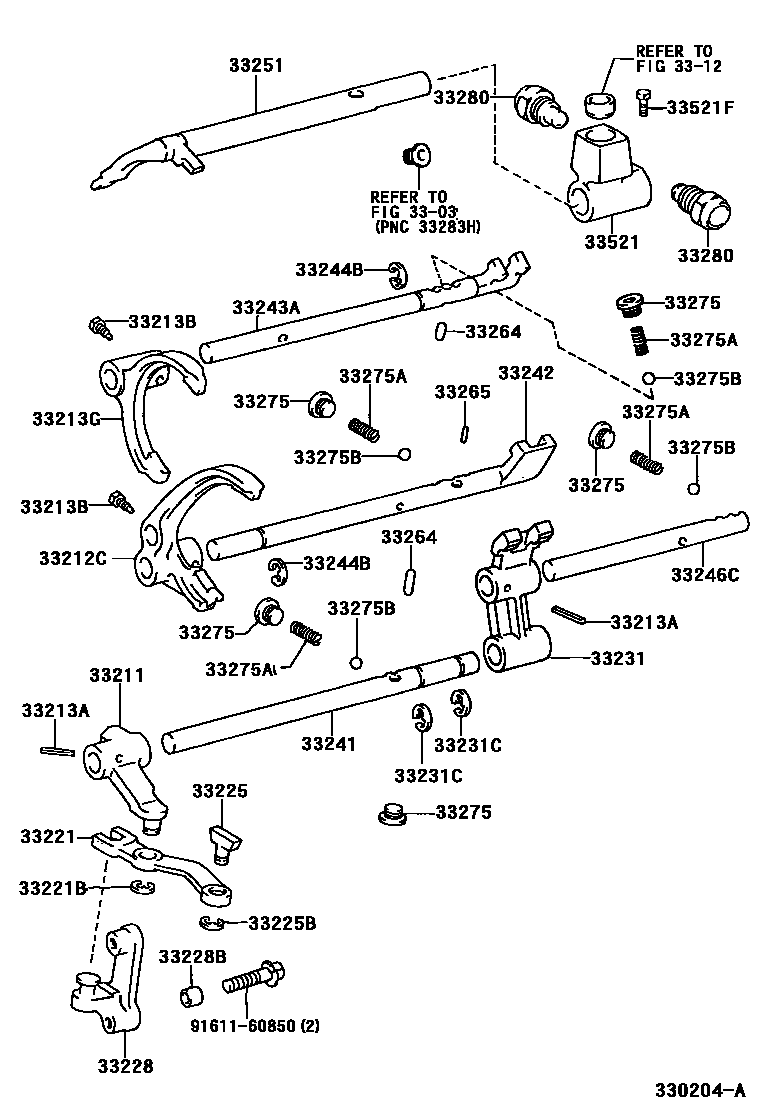

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1G48 0002 1G52,G58 0003 1G53,G58

3303

3312

33211FORK, REVERSE SHIFT

main33211-28010iKF60..FD199612-200707

33212CFORK, GEAR SHIFT, NO.1

main33212-0K010iKF60,82,LF61,8#,RZF61,80,81,82,85..(FD,LUB,SD)..5F..(GEN,PHL,SA,TAIW)200412-200707

TAP

sub33212-35023

main33212-0K010iKF60,80..5F..LHD200607-200707

sub33212-35023

main33212-35023iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200607

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKF60..FD199612-200707

33213BBOLT(FOR SHIFT FORK SET)

main90105-06143iKF60..FD199612-200707

33213GFORK, GEAR SHIFT, NO.2

main33213-0K010iKF60,80..5F..LHD200607-200707

sub33213-0K011

main33213-0K010iKF60,82,LF61,8#,RZF61,80,81,82,85..(FD,LUB,SD)..5F..(GEN,PHL,SA,TAIW)200412-200707

TAP

sub33213-0K011

main33213-35033iKF60..FD199612-200607

sub33213-35034

33221ARM, REVERSE SHIFT

main33221-28010iLF60,80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82,85..(LUB,SD,T2)..5F..(DLX,GL,STD)199612-200707

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-01000iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200707

33225SHOE, SHIFT ARM

main33225-35030iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200707

33225BRING, E(FOR SHIFT ARM SHOE)

main96160-00800iKF60..FD199612-200707

33228BRACKET, REVERSE SHIFT ARM

main33228-28010iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200707

33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)

main90253-11001iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200707

33231HEAD, REVERSE SHIFT

main33231-35050iKF60,70,80,LF60,80..STD..RHD199612-200001

main33231-35070iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..5F199612-200707

33231CRING(FOR REVERSE SHIFT HEAD)

main90520-12006iKF60,70,80,LF60,80..STD..RHD199612-200707

33241SHAFT, REVERSE SHIFT FORK

main33244-04020iKF60..RHD200408-200707

TAP

main33244-35031iKF60,70,80,LF60,80..STD..RHD199612-200001

main33244-35050iKF60..FD199612-200503

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-04010iKF60,8#,LF61,8#,RZF61,80,81,82,85..(LUB,T2)..5F200408-200707

TAP

main33242-04010iKF60..RHD200412-200612

main33242-35022iKF60..SD199612-200503

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-04010iKF60..RHD200412-200612

main33243-04010iKF60,8#,LF61,8#,RZF61,80,81,82,85..(LUB,T2)..5F200408-200707

TAP

main33243-35042iKF60..FD199612-200503

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12006iKF80..5F..(MA,TAIW);RZF81..5F..(GEN,SA);KF60,82,LF61,81,82,85,RZF61,80,82,85..5F..(PHL,SA,TAIW,VN)199612-200707

33246CSHAFT, GEAR SHIFT FORK, NO.5

main33246-04010iKF60,8#,LF61,8#,RZF61,80,81,82,85..(LUB,T2)..5F200408-200707

TAP

main33246-04010iKF60..RHD200412-200612

main33246-35020iKF60..SD199612-200503

33251LEVER, SHIFT & SELECT

main33251-35060iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF60,82,RZF81,82..5F..(DLX,GL,STD)199612-200303

sub33251-35061

sub90109-08305

main33251-35061iKF60..RHD200303-200612

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90360-10003iLF60,80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82,85..(LUB,SD,T2)..5F..(DLX,GL,STD)199612-200707

OD=9.52,STEEL

main90361-10002iLF60,80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82,85..(LUB,SD,T2)..5F..(DLX,GL,STD)199612-200707

L=21.6,PIN

main90361-10003iKF60..FD199612-200707

L=13.6,OD=9.5

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020iKF60,70,80,LF60,80..STD..RHD199612-200707

L=11.1,OD=4.8

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200707

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-10061iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200707

L=22.1

main90501-14123iKF60..FD199612-200707

L=20.2

main90501-14132iKF82,LF82,RZF82..SRF..5F;KF7#,80,LF6#,80,81,85,RZF61,80,81,85..5F..(GEN,SA)199612-200503

L=31

main90501-14183iKF60,8#,RZF85..5F..(GEN,MA,TAIW,VN)200501-200707

L=33.5

33275BBALL, SHAFT DETENT

main90360-10003iKF60,70,80,LF60,80..STD..RHD199612-200707

33280PIN ASSY, REVERSE RESTRICT

main33280-35021iKF60..FD199612-200707

RH

main33280-35021iLF61,81,RZF80200010-200306

AISIN,RH

main33280-35031iLF61,81,RZF80200004-200010

RH

main33280-35031iLF61,81,RZF80200010-200503

TAP,RH

main33280-35072iKF60..FD199612-200707

LH

33521HOUSING, SHIFT LEVER

main33521-27050iKF60..FD199612-200707

main33521-38010iLF85,RZF85..5F199911-200612

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90105-08079iKF80,LF80,RZF81..5F..(MA,PHL,VN)199612-200212

main90109-08305iKF80,LF61,81,RZF80,YF60,80..SA,VN200210-200612

main90109-08305iRZF61,81..SA200306-200503

TAP

9161160850

main91611-60850

30 parts on this diagram · 3 diagrams in section
