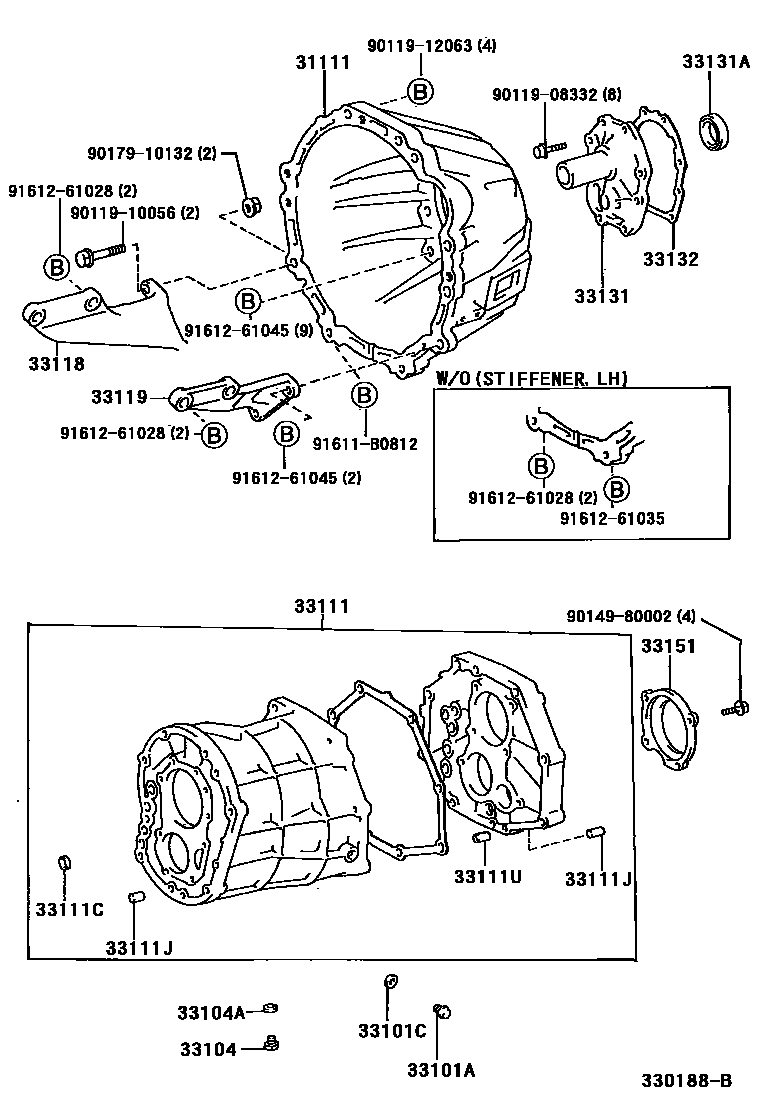

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G48,G52,G58 0002 1G48,G52,G58 0003 1G52,G53,G58 0004 1G58

31111HOUSING, CLUTCH

main31111-0B010iKF60,7#,8#..MTM..GEN199804-200208

main31111-0B020iLF60,80,82..GEN200208-200406

main31111-0W010iKF60,70,80..MTM199612-199804

sub31111-27030

main31111-0W050iLF60,70,80199612-199804

TAP

main31111-22114iLF61,81200010-200306

AISIN

main31111-26032iRZF61,80,81,82..5F..(DLX,GL,STD)200208-200503

main31111-30190iYF60,80200004-200306

main31111-35070iRZF85..5F200210-200612

main31111-60280iLF85200004-200306

sub31111-60281

sub31126-60110

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKF60..FD200406-200707

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKF60..FD200405-200406

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

33111CASE, MANUAL TRANSMISSION

main33101-0B010iKF60..FD200405-200406

main33101-0K020iRZF81..5F..GEN;KF80..5F..(MA,TAIW);KF60,82,LF82,RZF82,85..5F..LHD200208-200707

sub33101-71020

main33101-0W020iLF61,81,85,RZF80,85,YF60,80..SA200010-200306

TAP

main33101-35050iLF61,81,85,RZF80,85,YF60,80..SA200010-200306

AISIN

main33101-35051iLF61,8#,RZF61,80,81,85..SA200501-200503

sub33101-71020

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×4iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

OD=14

main96411-41800iKF60..FD200208-200405

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×4iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×2iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

L=14,OD=15

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKF60,7#,82..5F;KF80..5F..(GEN,MA,TAIW)200208

main33118-25020iLF6#,7#,8#199612-200208

main33118-26011iRZF80,81,85..5F..(PHL,SA,TAIW)200208-200306

main33118-28010iYF60,80200004-200306

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLF82;LF6#,80,81..GEN,SA200208-200503

main33119-26021iRZF71,80,81..5F200004-200208

main33119-28010iYF60,80200004-200306

main33119-38010iKF60,80..5F..(MA,PHL,TAIW,VN)200208-200302

main33119-38020iRZF85..5F199911-200306

main33119-38030iLF85200306-200503

33131RETAINER, BEARING, FRONT(MTM)

main33131-0B010iKF60..FD200406-200412

main33131-0K030iKF60,8#,RZF85..5F..(GEN,MA,TAIW,VN)200412-200707

main33131-0W020iRZF81..5F..GEN;KF82,LF82,RZF82..5F..PHL200208-200501

main33131-26020iKF80,LF80..5F..MA199804-199809

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iKF60..FD200208-200405

main90311-T0021iKF60,8#,RZF85..5F..(GEN,MA,TAIW,VN)200412-200707

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iKF60..FD200406-200412

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K020iKF60,82,LF61,8#,RZF61,80,81,82,85..(FD,LUB,SD)..5F..(GEN,PHL,SA,TAIW)200412-200707

TAP

main33151-35030iKF60..FD200405-200406

9011908332

main90119-08332

9011910056

main90119-10056

9011912063

main90119-12063

9014980002

main90149-80002

9017910132

main90179-10132

91611B0812

main91611-B0812

9161261028

main91612-61028

9161261035

main91612-61035

9161261045

main91612-61045

24 parts on this diagram · 4 diagrams in section
