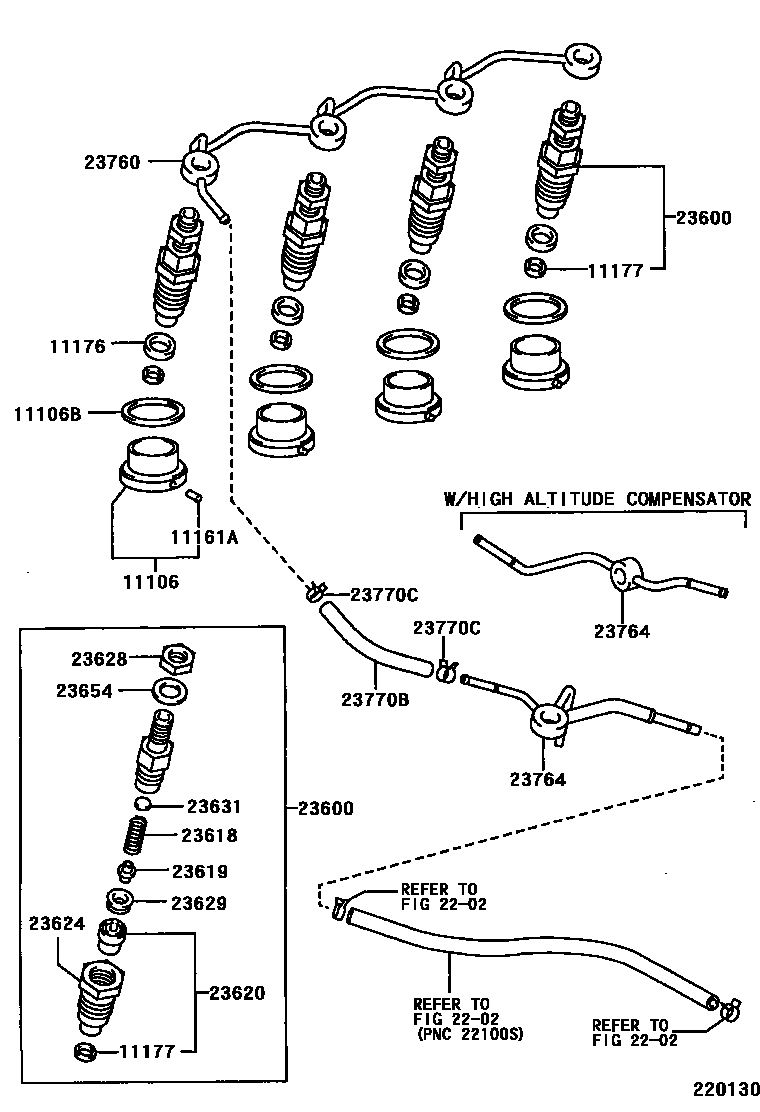

INJECTION NOZZLE

0001 1 0002 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-05010i5L..LF61,81,85200004-200402

(L)

main11106-05020i2L..LF60,70,80199801-199805

main11106-05020i2L..LF60,72,80,82..GEN200001-200402

(L)

main11106-54100i2L..LF82..LHD200001-200501

(J)

main11106-54100i2L..LF60,70,80199612-200102

main11106-54171i5L..LF61,81,85200004-200503

(J)

sub11106-54170

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-54030i2L..LF60,80,82..GEN199612-200503

T=0.03

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

11176SEAT, INJECTION NOZZLE

main11176-05010i2L..LF60,80,82..GEN199704-200503

(L)

main11176-64010i2L..LF80..MA199612-200503

(J)

11177GASKET, INJECTION NOZZLE SEAT

main11177-54020i2L..LF60,80,82..GEN199612-200503

2202

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59105i2L..LF82;2L..LF60,80..GEN199612-200501

main23600-59255i2L..LF80..MA199804-200212

main23600-59266i5L..LF61,81,85200306-200402

TYPE A:REFER TO ILLUSTRATION

main23600-59266i5L..LF61,81,85200004-200306

main23600-59266i5L..LF61,81,85200402-200503

TYPE A:REFER ILLUST.

main23600-59315i5L..LF61,81,85200402-200503

TYPE B:REFER ILLUST.

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54080i2L..LF60,7#,80,82..GEN,PHL199612-200501

main23618-54730i5L..LF61,81,85199804-200503

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

23620NOZZLE ASSY

main23620-59045i2L..LF82;2L..LF60,80..GEN199612-200501

main23620-59095i2L..LF80..MA199804-200212

main23620-59115i5L..LF61,81,85200004-200503

23624NUT, NOZZLE RETAINING

main23624-64040i2L..LF60,70,80199612-200501

sub23624-64041

main23624-64041i5L..LF61,81,85200402-200503

23628NUT(FOR RING PACKING SETTING)

main23628-64010i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-54080i2L..LF60,70,80199612-200503

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i2L..LF60,70,80199612-200503

T=0.900

main23631-64012i2L,5L..LF6#,7#,8#..GEN,PHL,SA199612-200503

T=0.950

main23631-64014i5L..LF61,81,85199612-200503

T=1.000

main23631-64016i2L..LF82..RHD;2L,5L..LF6#,72,80,81,85199612-200503

T=1.050

main23631-64018i2L..LF82..RHD;2L,5L..LF6#,72,80,81,85199612-200503

T=1.100

main23632-64010i2L,5L..LF6#,7#,8#..GEN,PHL,SA199612-200503

T=1.150

main23632-64012i2L..LF60,70,80199612-200503

T=1.200

main23632-64014i2L..LF82..LHD199612-200503

T=1.250

main23632-64016i5L..LF61,81,85199612-200503

T=1.300

main23632-64018i2L..LF82..RHD;2L,5L..LF6#,72,80,81,85199612-200503

T=1.350

main23633-64010i2L..LF60,80,82..GEN199612-200503

T=1.400

main23633-64012i2L..LF82..LHD199612-200503

T=1.450

main23633-64014i2L..LF82..RHD;2L,5L..LF6#,72,80,81,85199612-200503

T=1.500

main23633-64016i5L..LF61,81,85199612-200503

T=1.550

main23633-64018i5L..LF61,81,85199612-200503

T=1.600

main23634-64010i2L..LF60,80,82..GEN199612-200503

T=1.650

main23634-64012i2L,5L..LF6#,7#,8#..GEN,PHL,SA199612-200503

T=1.700

main23634-64014i5L..LF61,81,85199612-200503

T=1.750

main23634-64016i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

T=1.800

main23634-64018i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

T=1.850

main23635-64010i2L..LF82..LHD199612-200503

T=1.900

main23635-64012i5L..LF61,81,85199612-200503

T=1.950

23654WASHER(FOR RING PACKING)

main23654-64010i2L..LF60,80,82..GEN199612-200503

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-05010i2L..LF82..RHD;2L..LF60,72,80199704-200503

(L)

main23760-54030i2L..LF60,70,80199612-200503

(J)

main23760-54030i5L..LF61,81,85200103-200402

23764PIPE, NOZZLE LEAKAGE, NO.4

main23764-54090i2L..LF82..DLX..CBU;2L..LF60,70,80..(DLX,STD)..RHD199612-200406

W(HIGH ALTITUDE COMPENSATOR)

main23764-54090i5L..LF61,81,85200004-200503

main23764-54110i2L..LF82..RHD;2L..LF60,7#,80199612-200501

23770BHOSE, FUEL

main90082-53003i2L..LF82..RHD;2L..LF60,72,80199612-200402

L=120,(L)

main90082-53003i2L..LF82;2L..LF60,80..GEN200208-200301

L=120

main95333-04020i2L..LF60,72,80,82..GEN,PHL199704-200212

L=200(*H,L=120),ID=4,(J)

main95333-04020i2L..LF60,80..4F;2L,5L..LF61,70,81,85;2L..LF80..DLX,GL,GLX199805-200503

L=200(*H,L=120),ID=4

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-51000i2L..LF82;2L,5L..LF6#,80,81,85..GEN,SA200208-200503

main96133-41000i2L,5L..LF6#,7#,8#199612-200208

sub96132-51000

19 parts on this diagram · 2 diagrams in section
