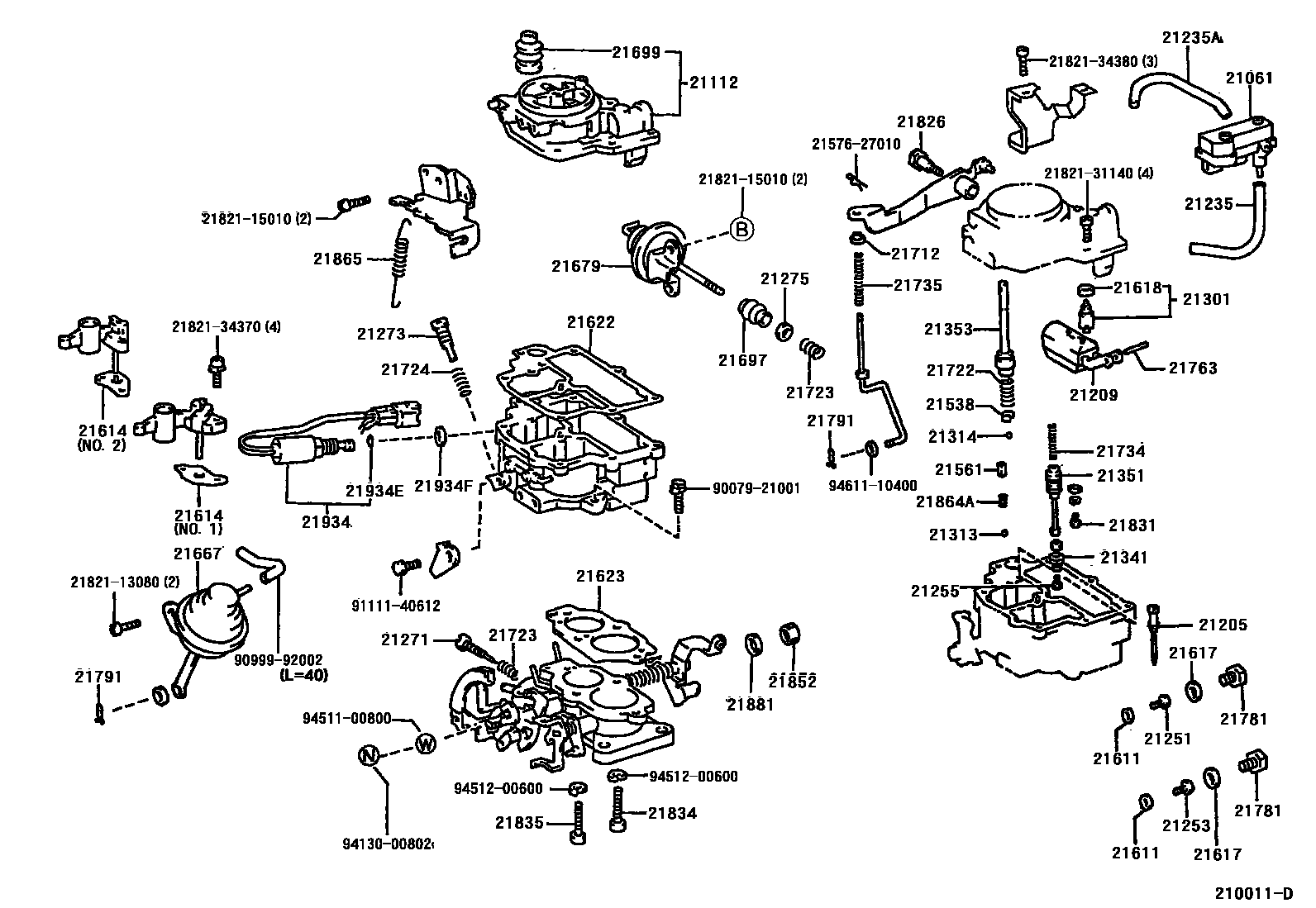

CARBURETOR
21061VALVE SUB-ASSY, THERMOSTATIC
21112HORN, AIR
21205JET SUB-ASSY, SLOW
21209FLOAT SUB-ASSY
21235PIPE OR HOSE, CONNECTING
21235APIPE OR HOSE, CONNECTING
21251JET, 1ST MAIN
21253JET, 2ND MAIN
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21341VALVE, POWER
21351PISTON, POWER
21353PLUNGER, PUMP
21538RETAINER, BALL CHECK
21561WEIGHT, PUMP DISCHARGE
21611GASKET, MAIN JET
21614GASKET, VENTURI
NO.1
NO.2
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21622GASKET, AIR HORN
21623GASKET, BODY FLANGE
21667DIAPHRAGM
21679POSITIONER
21697BOOT(FOR SLIDING ROD)
21699BOOT(FOR PUMP PLUNGER)
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21734SPRING, POWER PISTON
21735SPRING, PUMP ARM
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
21826SCREW, PUMP ARM SET
21831SCREW, POWER PISTON STOP
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21835SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21852NUT, THROTTLE LEVER SET
21864ASPRING(FOR PUMP DISCHARGE WEIGHT)
21865SPRING
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2157627010CLIP, PUMP STRAINER
main21576-27010
2182113080SCREW, 2ND THROTTLE VALVE SET
main21821-13080
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182134370SCREW, 2ND THROTTLE VALVE SET
main21821-34370
2182134380SCREW, 2ND THROTTLE VALVE SET
main21821-34380
9007921001
main90079-21001
9099992002
main90999-92002
9111140612
main91111-40612
9413000802
main94130-00802
9451100800
main94511-00800
9451200600
main94512-00600
9461110400
main94611-10400
63 parts on this diagram · 3 diagrams in section
