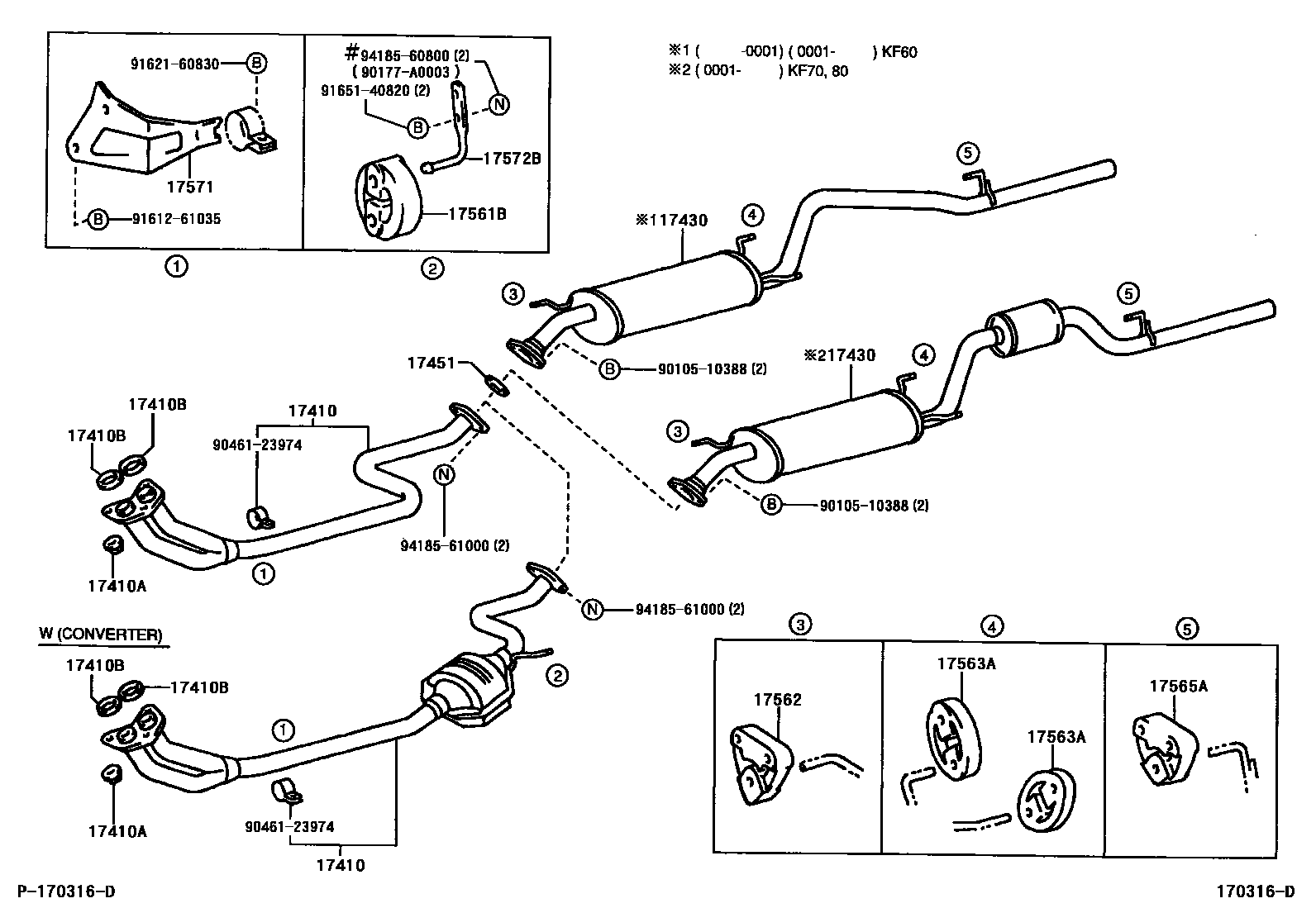

EXHAUST PIPE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0009 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-05010i2L..LF60,7#,80,82..GEN199612-200208

main17401-05020i2L..LF80..MA199804-200212

main17401-05030i2L..LF80..LHD199810-200211

main17401-05050i5L..LF61,81200306-200503

main17401-05060i5L..LF85200306-200503

main17401-05100i5L..LF61,81..LHD200306-200503

W(CONVERTER)

main17401-06010i7K..KF70200208-200404

main17401-06020i7K..KF80..CBU199612-200208

W(CONVERTER)

main17401-06030i7KE..KF80..RHD199804-200212

main17401-06040i7KE..KF82..PHL200211-200501

main17401-06050i7KE..KF80..SHRW..TAIW200210-200612

main17401-06060i7KE..KF72,82200001-200208

main17401-06070i7KE..KF82..DLX..RHD200208-200406

W(CONVERTER)

main17401-06080i7KE..KF80..VN199909-200302

main17401-0C010i2RZE..RZF84,85..LHD200210-200612

main17401-0C021i1RZE,2RZE..RZF61,80,81..SA200306-200503

main17401-0C031i2RZE..RZF85..RHD200306-200503

main17401-0C100i1RZE..RZF81..5F..GEN200208-200406

main17401-0C110i1RZE..RZF71,81..4FC..RHD200010-200208

main17401-0C130i1RZE..RZF81..5F..LHD200102-200211

main17401-0C140i1RZE..RZF81..4FC..LHD200102-200211

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i7KE..KF80..SHRW..TAIW;7K,2RZE..KF60,RZF84,85..GEN,TAIW200208-200612

17410BGASKET, EXHAUST PIPE

main17451-54010i1RZE,2RZE..RZF61,80,81,82,85..PHL,SA200211-200503

REAR

main17451-64030i7KE..KF60,80..MA,TAIW199804-200212

REAR

sub17451-64031

main90917-06064×2i1RZE,2RZE,2Y..RZF71,80,81,84,85,YF60,80199911-200306

FRONT

main90917-06066i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200306

main90917-06069×2i7KE..KF82;7K#..KF60,7#,80..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)200208

FRONT

17430PIPE ASSY, EXHAUST, TAIL

main17405-04050i1RZE,2RZE..RZF61,80,81..SA200306-200503

main17405-05010i2L..LF70199612-200001

main17405-05011i2L..LF72200001-200208

main17405-05020i2L..LF60200208-200406

main17405-05040i2L..LF80..MA199804-200212

main17405-05050i2L..LF82..LHD200211-200501

main17405-05070i5L..LF61,81200306-200503

main17405-05080i5L..LF85200306-200503

main17405-05090i2L..LF80,82..GEN200001-200208

main17405-05130i5L..LF61,81..LHD200306-200503

W(CONVERTER)

main17405-06010i7K..KF70199612-200001

main17405-06011i7K#..KF7#200102-200208

main17405-06020i7K..KF60200208-200612

main17405-06040i7KE..KF80..RHD200212-200503

main17405-06050i7KE..KF80..PHL199810-200211

main17405-06060i7KE..KF82..VN;7KE..KF80..SHRV200210

main17405-06070i7KE..KF60199902-200210

main17405-06080i7K#..KF8#..GEN200102-200208

main17405-0C010i2RZE..RZF84,85..LHD199911-200210

main17405-0C020i2RZE..RZF85..RHD200306-200503

main17405-0C110i1RZE..RZF71200102-200208

main17405-0C120i1RZE..RZF81..RHD200102-200208

main17405-0C130i1RZE..RZF82200211-200501

17451GASKET, EXHAUST PIPE

main90917-06045i2L..LF82..RHD;2L,5L,2RZE,2Y..LF6#,7#,80,81,85,RZF80,84,85,YF60,80199612-200306

main90917-06074i7K#..KF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)200208-200612

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-06020i1RZE..RZF81..LHD200102-200211

main17565-46010i5L..LF61,81..LHD200306-200503

main17565-63020i7KE,2RZE..KF80,RZF80,85..RHD200208-200306

main17565-74110i7KE,2RZE..KF60,80,RZF84,85..TAIW199902-200210

17562SUPPORT, EXHAUST PIPE, NO.2

main17566-06050i7KE,2RZE..KF60,80,RZF84,85..TAIW,VN199902-200302

main17566-06060i7KE,2L,1RZE..KF82,LF82,RZF82..PHL200211-200501

main17566-35030i2L..LF80..GEN;7K#,2L,5L,1RZE,2RZE..KF60,7#,8#,LF6#,81,82,85,RZF61,80,81,85..GEN,MA,SA200208-200612

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-06020×2i7KE,2L,1RZE..KF80,LF80,RZF81..PHL199810-200211

main17565-63020×2i2L..LF80..GEN;7K#,2L,5L,1RZE,2RZE..KF60,7#,8#,LF6#,81,82,85,RZF61,80,81,85..GEN,MA,SA200208-200612

main17565-74110×2i7KE,2RZE..KF60,80,RZF84,85..TAIW,VN199902-200302

17565ASUPPORT, EXHAUST PIPE, NO.4

main17566-06050i7KE..KF82..VN;7KE..KF60,80..SCB,SHRV200210

main17566-06060i7KE,2L,1RZE..KF82,LF82,RZF82..PHL200211-200501

main17566-35030i2L..LF80..GEN;7K#,2L,5L,1RZE,2RZE..KF60,7#,8#,LF6#,81,82,85,RZF61,80,81,85..GEN,MA,SA200208-200612

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17506-0C010i2RZE..RZF84,85..4FC199911-200210

main17571-05010i2L..LF60,80,82..GEN200208-200406

main17571-06010i7K..KF60,70,80200208-200612

main17571-06020i7KE..KF82..PHL200211-200501

main17571-06030i7KE..KF82..VN;7KE..KF60,80..SCB,SHRV200210

main17571-06040i7KE..KF72,82200001-200208

main17571-0C030i2RZE..RZF85..5F..LHD199911-200210

main17571-13290i7KE..KF80..RHD199804-200212

main17571-54330i5L..LF61,81..LHD200306-200503

W(CONVERTER)

main17571-54520i2L,5L..LF61,81,82,85..PHL,SA200211-200503

main17571-72160i2Y..YF60,80200004-200306

main17571-75190i1RZE,2RZE..RZF61,80,81,85..SA200306-200503

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-06010i7K..KF80..CBU;7KE..KF82..DLX;7KE..KF82..4FC199612-200208

main17572-06020i7KE..KF82..VN;7KE..KF60,80..SCB,SHRV200210

main17572-0C010i2RZE..RZF85..5F..LHD200210-200612

main17572-0C020i2RZE..RZF84,85..4FC200210-200612

main17572-13190i7KE..KF80..RHD200212-200503

main17572-75160i2RZE..RZF85..RHD200306-200503

9010510388

main90105-10388

90177A0003

main90177-A0003

9046123974

main90461-23974

9161261035

main91612-61035

9162160830

main91621-60830

9165140820

main91651-40820

9418560800

main94185-60800

9418561000

main94185-61000

19 parts on this diagram · 7 diagrams in section
