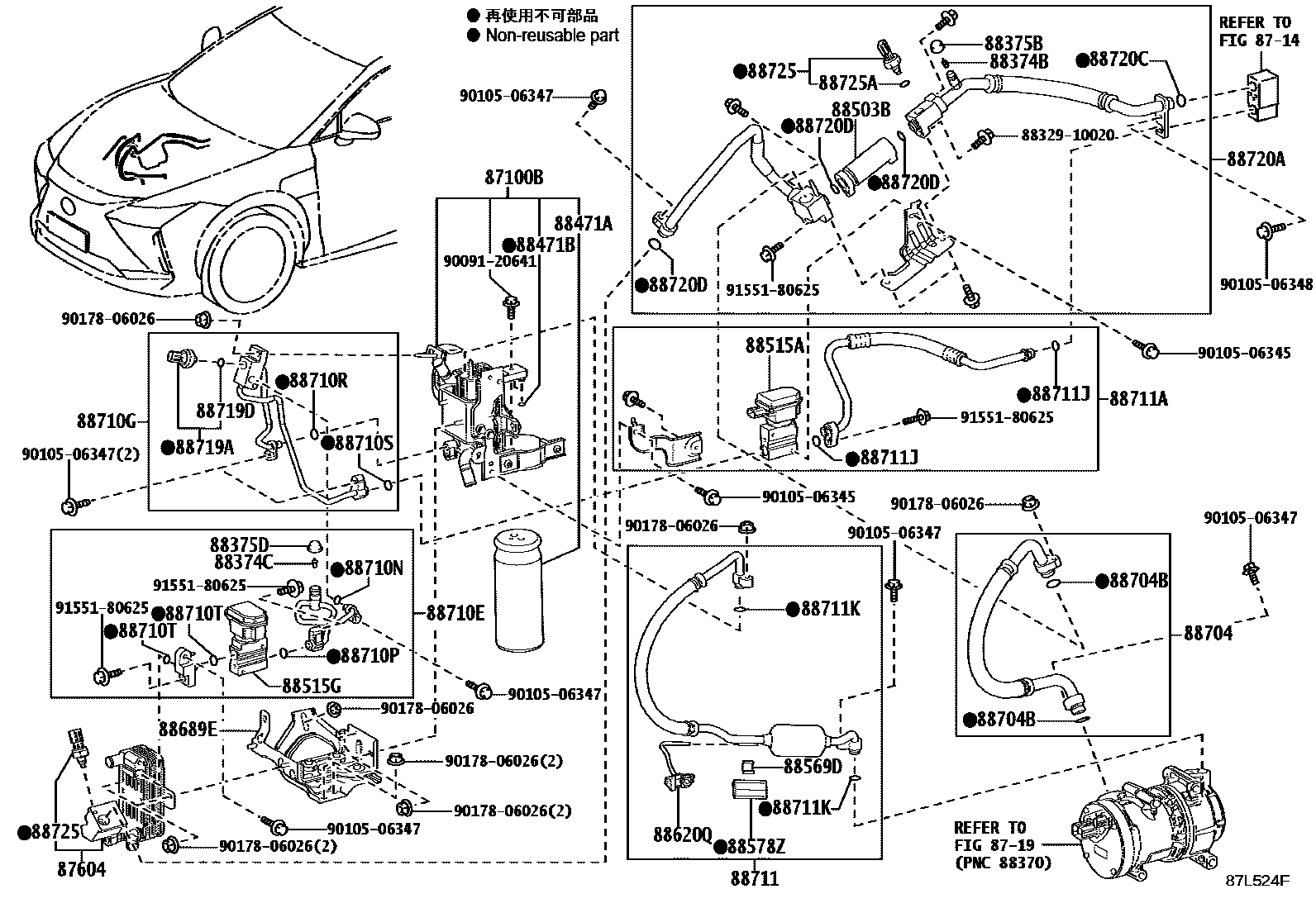

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

87100BCONDENSER ASSY

main87100-42050iXEBM15..B..CHI¥43,100202301-202311

8714

8719

87604UNIT SUB-ASSY, HEAT EXCHANGER

main87604-42010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

88374BVALVE, SERVICE, NO.1

main88374-30010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

88374CVALVE, SERVICE, NO.2

main88374-30010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iXEBM15..LHD..(C,L)..EUR202311

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

main88375-30290iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)202311

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

main88375-30290iXEBM15..(C,L)..(ARL,CHI,GEN)202301-202311

UKRAINE SPEC

main88375-30290iXEBM15..(C,L)..(ARL,CHI,GEN)202301-202311

TAIWAN SPEC

main88375-30290iXEBM15..B..CHI202301

main88375-30310iXEBM15..EUR202301-202311

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)202311

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

main88375-30280iXEBM1#..LHD..EUR202311

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

main88375-30280iXEBM15..(C,L)..(ARL,CHI,GEN)202301-202311

UKRAINE SPEC

main88375-30280iXEBM15..(C,L)..(ARL,CHI,GEN)202301-202311

TAIWAN SPEC

main88375-30280iXEBM15..B..CHI202301

main88375-30320iXEBM1#..EUR202301-202311

88471ATANK, RECEIVER

main88470-42110iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥3,330202301-202311

88471BRING, O (FOR RECEIVER TANK)

main90099-14119iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

ID=6.7,OD=10.3

88503BREGULATOR SUB-ASSY, PRESSURE

main88503-42020iXEBM15..EUR202301-202311

main88503-42030iXEBM1#..LHD..EUR202311

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

main88503-42030iXEBM1#..LHD..EUR202311

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

main88503-42030iXEBM15..(C,L)..(ARL,CHI,GEN)202301-202311

UKRAINE SPEC

main88503-42030iXEBM15..(C,L)..(ARL,CHI,GEN)202301-202311

TAIWAN SPEC

main88503-42030iXEBM15..B..CHI202301

88515AVALVE, COOLER EXPANSION

main88515-42150iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥17,400202301-202407

sub88515-42151¥15,800

main88515-42151iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥15,800202407

88515GVALVE, COOLER EXPANSION, NO.2

main88515-42140iXEBM15..B..CHI¥17,400202301-202407

sub88515-42141¥15,800

main88515-42141iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥15,800202407

88569DCLAMP, COOLER, NO.1

main88569-74090iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥0202301-202311

88578ZPACKING, COOLER, NO.1

main88578-47070iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

88620QTHERMISTOR ASSY, AIR CONDITIONER NO.1

main88620-42090iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

88689EBRACKET, COOLER, NO.1

main88688-42A30iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

88704HOSE SUB-ASSY, SUCTION

main88704-42790iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥8,600202301-202311

88704BRING, O(FOR SUCTION HOSE)

main90099-14169iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥0202301-202311

ID=17.2,OD=22.0

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-42410iXEBM1#..EUR¥22,200202301-202406

sub88710-42411¥20,100

main88710-42411iXEBM1#..EUR¥20,100202407

main88710-42420iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)¥22,200202311-202406

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

sub88710-42421¥20,100

main88710-42420iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)¥22,200202311-202406

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

sub88710-42421¥20,100

main88710-42420iXEBM15..(C,L)..(ARL,CHI,GEN)¥22,200202301-202311

UKRAINE SPEC

sub88710-42421¥20,100

main88710-42420iXEBM15..(C,L)..(ARL,CHI,GEN)¥22,200202301-202311

TAIWAN SPEC

sub88710-42421¥20,100

main88710-42420iXEBM15..B..CHI¥22,200202301

sub88710-42421¥20,100

main88710-42421iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)¥20,100202407

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

main88710-42421iXEBM15..LHD..(C,L)..EUR¥20,100202407

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-42430iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥10,900202301-202311

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

ID=6.7,OD=10.3

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14120iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥0202301-202311

ID=10.8,OD=15.6

88710RRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)

main90099-14119iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

ID=6.7,OD=10.3

88710SRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)

main90099-14120iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥0202301-202311

ID=10.8,OD=15.6

88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14155iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥0202301-202311

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-42100iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥12,500202301-202311

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-42120iXEBM15..B..CHI¥24,800202301-202406

sub88711-42121¥22,500

main88711-42121iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR¥22,500202407

main88711-42130iXEBM1#..RHD¥25,800202301-202406

sub88711-42131¥23,400

main88711-42131iXEBM1#..RHD¥23,400202407

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90099-14120iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥0202301-202311

ID=10.8,OD=15.6

88711KRING, O, NO.2(FOR DISCHARGE HOSE)

main90099-14120iXEBM15..B..CHI¥0202301-202311

ID=10.8,OD=15.6

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iXEBM15..B..CHI202301-202311

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

ID=10.6,OD=14.16

88720AHOSE & ACCESSORY, AIR CONDITIONER

main88720-42060iXEBM15..LHD..EUR¥30,500202301-202311

main88720-42070iXEBM15..RHD..EUR¥30,600202301-202311

main88720-42080iXEBM15..LHD..(C,L)..(CHI,GEN)¥30,500202301-202311

TAIWAN SPEC

main88720-42080iXEBM10..LHD..(CHI,GEN);XEBM15..LHD..(C,L)..(CHI,GEN)¥30,500202311

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

main88720-42080iXEBM10..LHD..(CHI,GEN);XEBM15..LHD..(C,L)..(CHI,GEN)¥30,500202311

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

main88720-42080iXEBM15..LHD..(C,L)..(CHI,GEN)¥30,500202301-202311

UKRAINE SPEC

main88720-42080iXEBM15..B..CHI¥30,500202301

main88720-42090iXEBM15..RHD..(ARL,GEN)¥30,600202302-202311

88720CRING, O, NO.1(HOSE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14121iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

ID=13.4,OD=18.2

88720DRING, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14157iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥0202301-202311

ID=13.4,OD=18.2

88725SENSOR, REFRIGERANT

main88725-42010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥6,400202301-202311

88725ARING, O (FOR REFRIGERANT SENSOR)

main90099-14170iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

8832910020PISTON SUB-ASSY, COOLER COMPRESSOR

main88329-10020

9009120641

main90091-20641¥0

9010506345

main90105-06345¥60

9010506347

main90105-06347¥60

9010506348

main90105-06348¥60

9017806026

main90178-06026¥80

9155180625

main91551-80625¥60

44 parts on this diagram · 2 diagrams in section
