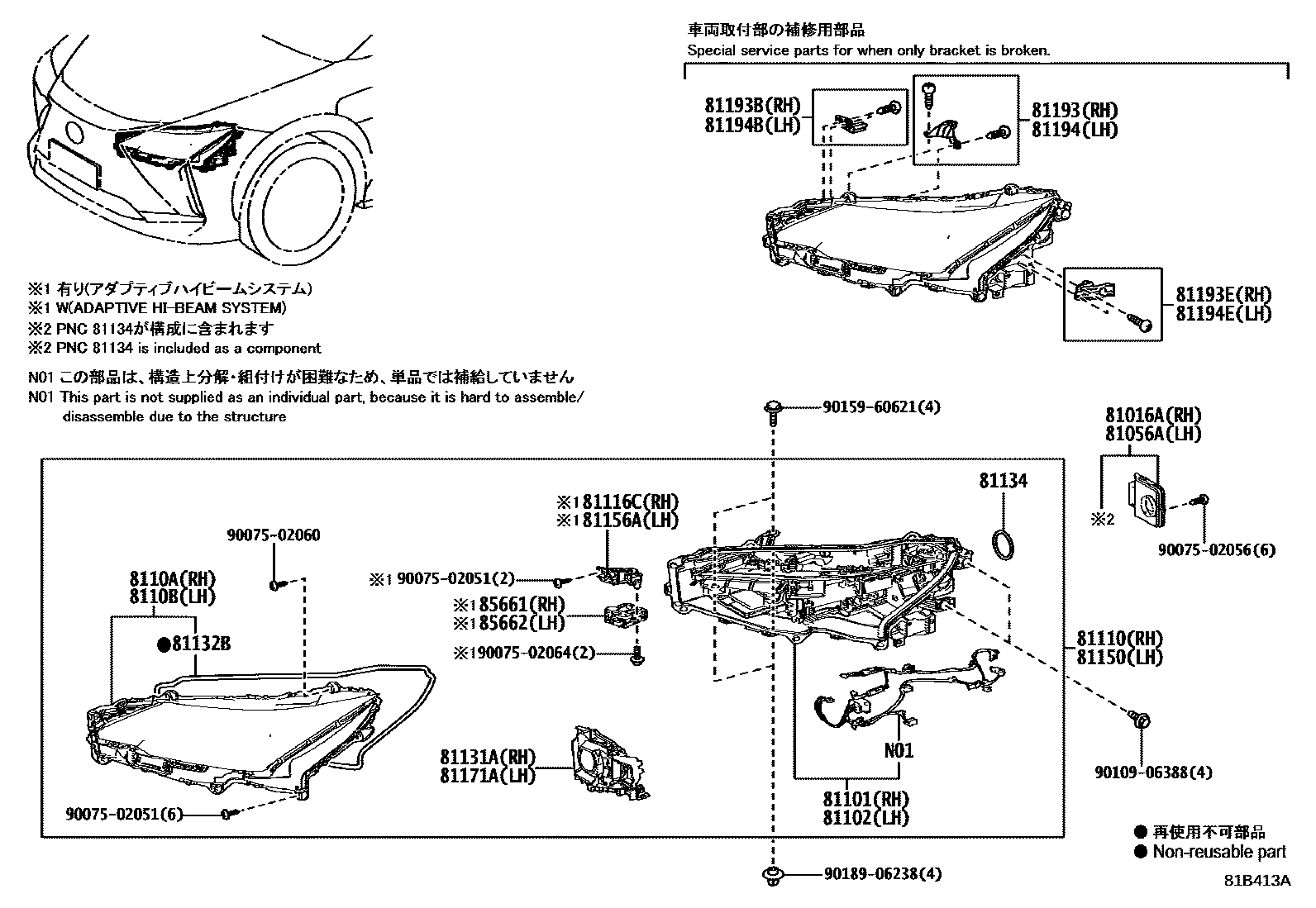

HEADLAMP

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-46090iXEBM10..B,C;XEBM15..C..CHI;XEBM15..(B,C)..(ARL,EUR,GEN)202301-202311

main81016-46100iXEBM1#..L202301-202311

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-46090iXEBM15..B..CHI202301-202311

main81056-46100iXEBM15..L202301-202311

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-46090iXEBM10..B,C;XEBM15..C..CHI;XEBM15..(B,C)..(ARL,EUR,GEN)202301-202311

main8111B-46100iXEBM1#..L202301-202311

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-46090iXEBM15..B..CHI202301-202311

main8115B-46100iXEBM1#..L202301-202311

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-46070iXEBM15..B..CHI202301-202311

main8110A-46080iXEBM1#..LHD..L202301-202311

main8110A-46090iXEBM15..RHD..(B,C)202301-202311

main8110A-46100iXEBM1#..RHD..L202301-202311

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-46070iXEBM15..B..CHI202301-202311

main8110B-46080iXEBM1#..LHD..L202301-202311

main8110B-46090iXEBM15..RHD..(B,C)202301-202311

main8110B-46100iXEBM1#..RHD..L202301-202311

81110HEADLAMP ASSY, RH

main81145-46070iXEBM15..LHD..C;XEBM15..LHD..B..EUR202301-202311

main81145-46080iXEBM15..LHD..L202301-202311

main81145-46090iXEBM1#..RHD..(B,C)202301-202311

main81145-46100iXEBM1#..RHD..L202301-202311

81116CBRACKET, HEADLAMP, RH

main81116-48F80iXEBM15..L202301-202311

81131AUNIT, HEADLAMP, RH

main81130-46070iXEBM15..LHD..C;XEBM10..LHD..(B,C);XEBM15..LHD..B..EUR202301-202311

main81130-46080iXEBM1#..LHD..L202301-202311

main81130-46090iXEBM15..RHD..(B,C)202301-202311

main81130-46100iXEBM15..RHD..L202301-202311

81132BGASKET, HEADLAMP LENS

main81132-50680iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

81134GASKET, HEADLAMP

main90075-23003iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

81150HEADLAMP ASSY, LH

main81185-46070iXEBM15..LHD..C;XEBM10..LHD..(B,C);XEBM15..LHD..B..EUR202301-202311

main81185-46080iXEBM1#..LHD..L202301-202311

main81185-46090iXEBM15..RHD..(B,C)202301-202311

main81185-46100iXEBM15..RHD..L202301-202311

81156ABRACKET, HEADLAMP, LH

main81156-48F80iXEBM15..L202301-202311

81171AUNIT, HEADLAMP, LH

main81170-46070iXEBM15..B..CHI202301-202311

main81170-46080iXEBM1#..LHD..L202301-202311

main81170-46090iXEBM15..RHD..(B,C)202301-202311

main81170-46100iXEBM1#..RHD..L202301-202311

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-46030iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-46040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-46050iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-46040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-46050iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

85661MOTOR, HEADLAMP LEVELING, RH

main85661-45010iXEBM1#..L202301-202311

main85661-48050iXEBM10..B,C;XEBM15..C..CHI;XEBM15..(B,C)..(ARL,EUR,GEN)202301-202311

85662MOTOR, HEADLAMP LEVELING, LH

main85661-48050iXEBM15..B..CHI202301-202311

main85691-45010iXEBM15..L202301-202311

9007502051

main90075-02051

9007502056

main90075-02056

9007502060

main90075-02060

9007502064

main90075-02064

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

29 parts on this diagram · 1 diagram in section
