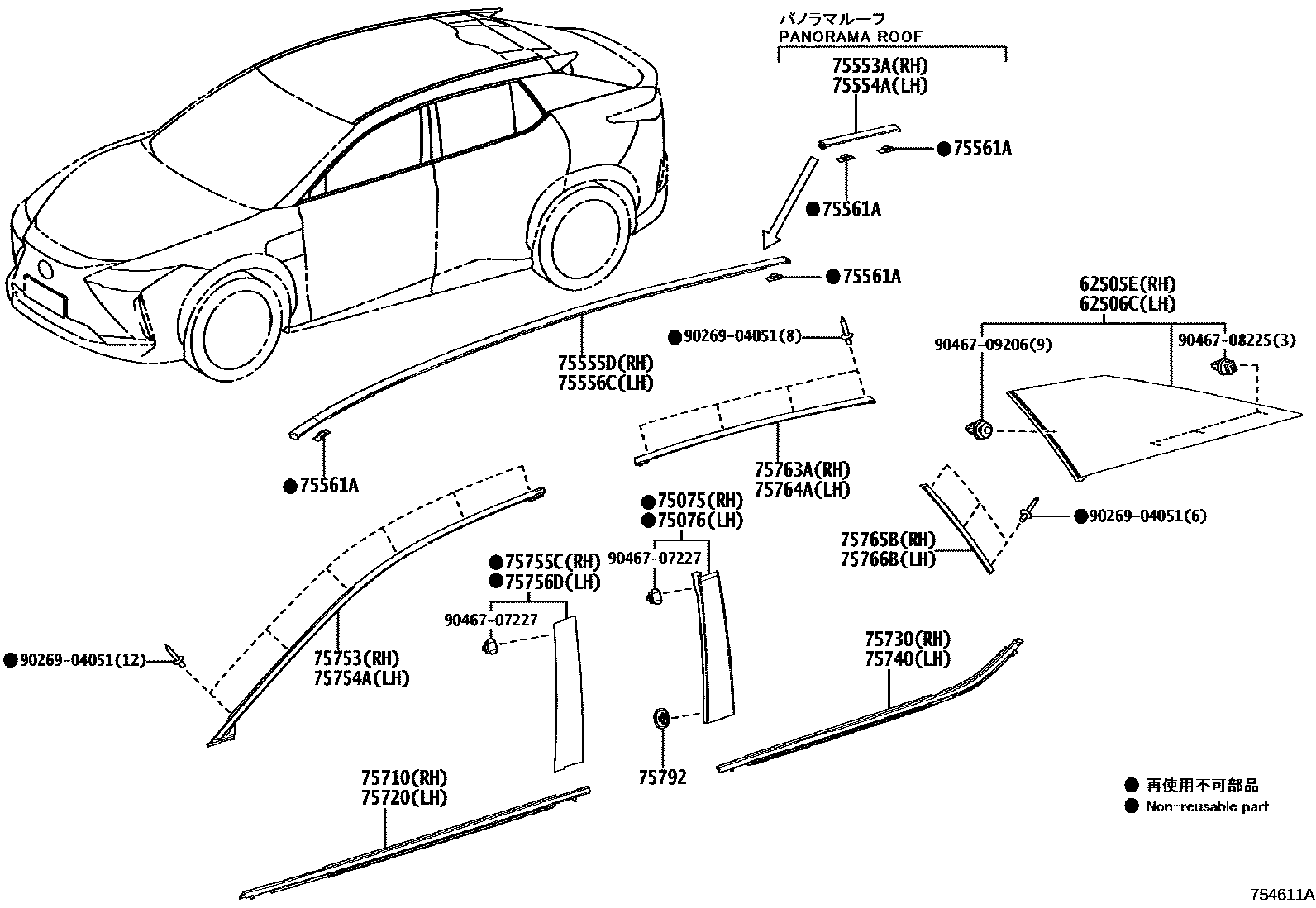

SIDE MOULDING

0001 1ROOF & DOOR MOULDING 0002 1ARCH & ROCKER MOULDING

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

NO PAINT REQ.

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

NO PAINT REQ.

75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH

main75075-46010iXEBM15202301

75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH

main75076-46010iXEBM15202301

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-46010iXEBM15..L..(ARL,EUR,GEN)202301-202311

MOON ROOF-DIMMING PANORAMA ROOF

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-46010iXEBM1#..(C,L)..(ARL,EUR,GEN)202311

ROOF TYPE-PANORAMA ROOF

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-48020×4iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202311

ROOF RAIL-WITH

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-46030iXEBM15202301-202311

main75710-46031iXEBM15..B..CHI202311

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-46030iXEBM15202301-202311

main75720-46031iXEBM15..B..CHI202311

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-46030iXEBM15202301-202311

main75730-46031iXEBM15..B..CHI202311

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-46030iXEBM15202301-202311

main75740-46031iXEBM15..B..CHI202311

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-46010iXEBM15..B..CHI202301

NO PAINT REQ.

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

NO PAINT REQ.

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

NO PAINT REQ.

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-46010iXEBM15..B..CHI202301

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-46010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-46010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-46010iXEBM15..B..CHI202301

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-46010iXEBM15..B..CHI202301

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9026904051

main90269-04051

9046707227

main90467-07227

9046708225

main90467-08225

9046709206

main90467-09206

26 parts on this diagram · 2 diagrams in section
