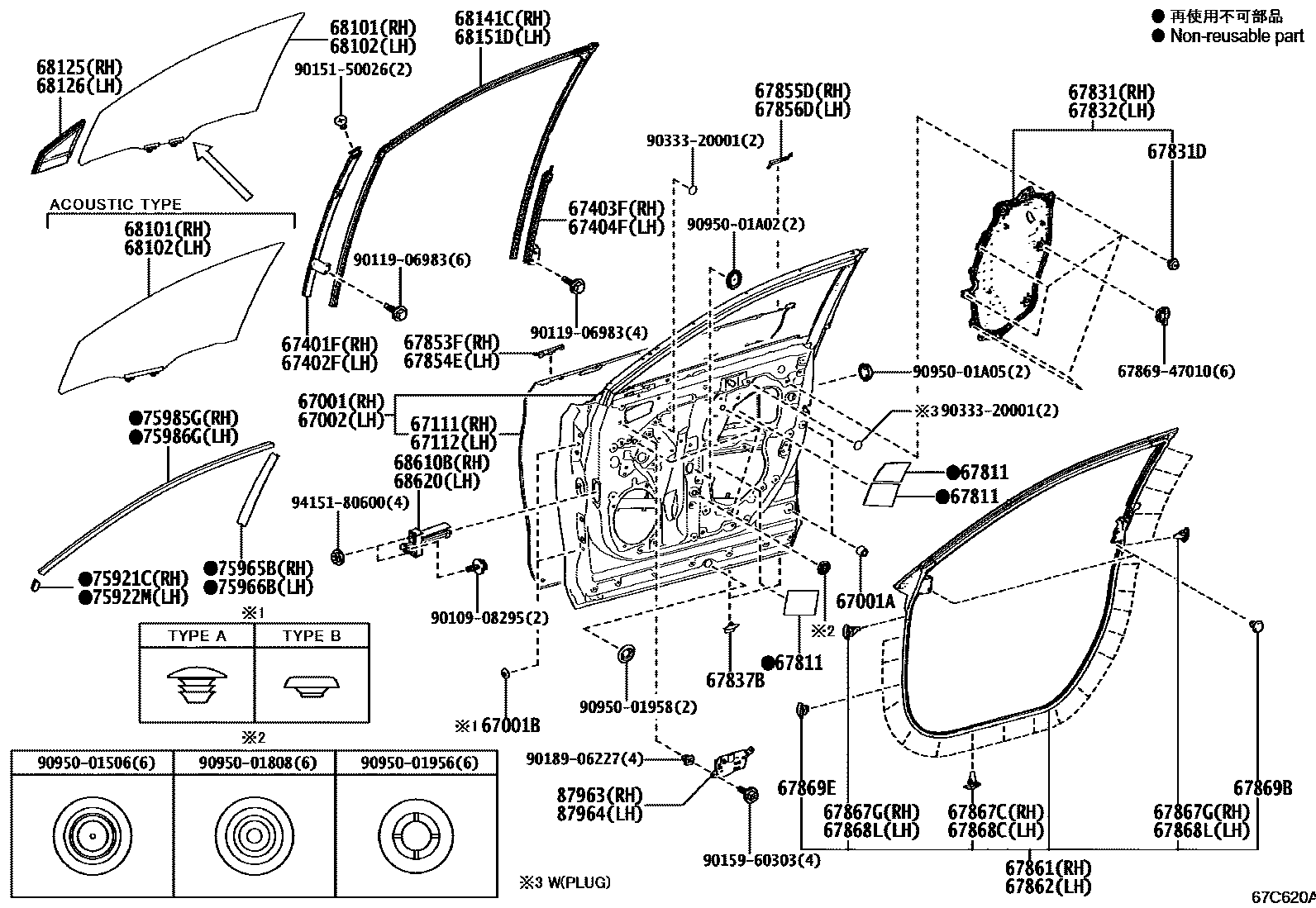

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301

main67001-46060iXEBM15..EUR202301-202302

sub67001-46030

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iXEBM15..B..CHI202301-202311

67001BPLUG, HOLE(FOR FRONT DOOR PANEL)

main68714-50040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

TYPE A:REFER ILLUST.

main90950-01841iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

TYPE B:REFER ILLUST.

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-46030iXEBM15..ARL,CHI,GEN202301

main67002-46060iXEBM15..EUR202301-202302

sub67002-46030

67111PANEL, FRONT DOOR, OUTER RH

main67111-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301

67112PANEL, FRONT DOOR, OUTER LH

main67112-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-46030iXEBM15..B..CHI202301-202311

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-78020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-78020iXEBM15..B..CHI202301-202311

67811PAD, FRONT DOOR SILENCER

main67811-46020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-78020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-78020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67837BSEAL, FRONT DOOR DUST PROOF

main67837-48050iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67853FPROTECTOR, FRONT DOOR, UPPER RH

main67853-46010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67854EPROTECTOR, FRONT DOOR, UPPER LH

main67854-46020iXEBM15..B..CHI202301-202311

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-46010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-48030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-48030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-46060iXEBM15..(B,C)..EUR202301-202311

main68101-46070iXEBM15..C..(ARL,CHI,GEN)202301-202311

main68101-46080iXEBM15..L..EUR202301-202311

REAR SIDE GLASS-PRIVACY(ACOUSTIC)

main68101-46090iXEBM1#..RHD..C..GEN202311

REAR SIDE GLASS-GREEN(ACOUSTIC)

main68101-46090iXEBM15..L..(ARL,CHI,GEN)202301-202311

REAR SIDE GLASS-PRIVACY(ACOUSTIC)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-46060iXEBM1#..(B,C)..EUR202301-202311

main68102-46070iXEBM15..B..CHI202301-202311

main68102-46080iXEBM15..L..EUR202301-202311

REAR SIDE GLASS-PRIVACY(ACOUSTIC)

main68102-46090iXEBM15..C..(ARL,CHI,GEN)202301-202311

REAR SIDE GLASS-PRIVACY(ACOUSTIC)

main68102-46090iXEBM10..LHD..GEN;XEBM1#..L..(ARL,CHI,GEN)202311

REAR SIDE GLASS-GREEN(ACOUSTIC)

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68110-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68120-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

68141CRUN, FRONT DOOR GLASS, RH

main68141-78020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

68151DRUN, FRONT DOOR GLASS, LH

main68151-78020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

68610BCHECK ASSY, FRONT DOOR, RH

main68610-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

68620CHECK ASSY, FRONT DOOR, LH

main68620-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

75921CTAPE, BLACK OUT, NO.1 RH

main75921-46020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

75922MTAPE, BLACK OUT, NO.1 LH

main75922-46020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9033320001

main90333-20001

9095001506

main90950-01506

9095001808

main90950-01808

9095001956

main90950-01956

9095001958

main90950-01958

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9415180600

main94151-80600

57 parts on this diagram · 2 diagrams in section
