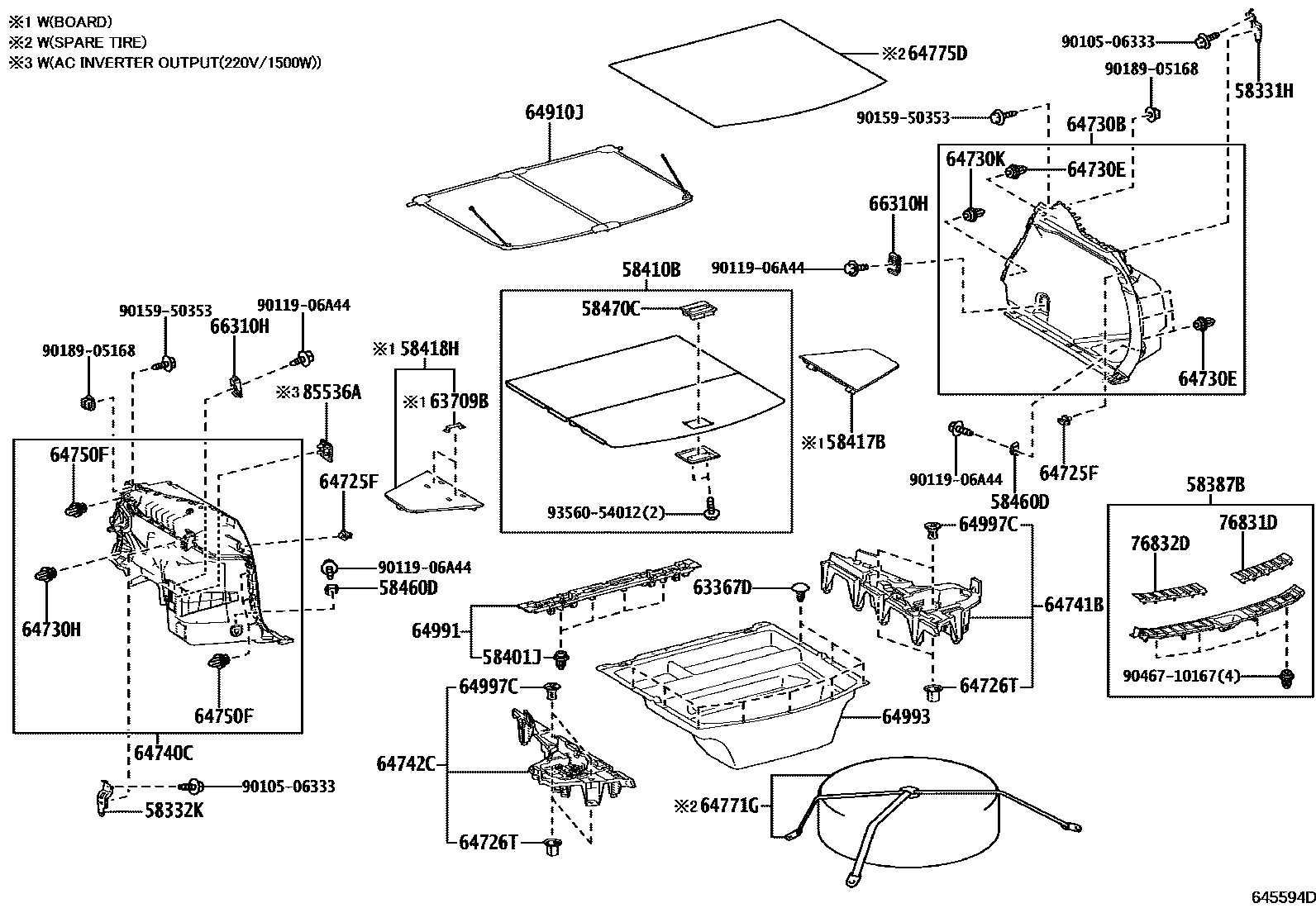

DECK BOARD & DECK TRIM COVER

58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥410202301-202311

58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2

main58332-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥410202301-202311

58387BPLATE, REAR FLOOR FINISH

main58387-46020-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

main58387-46020-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#

58401JCLIP(FOR DECK BOAD)

main90467-10161iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥90202301-202311

58410BBOARD ASSY, DECK

main58410-46010-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

main58410-46010-C0iXEBM1#..C,L202301

BLACK,TRIM1#

58417BBOARD, REAR FLOOR, REAR RH

main58417-46020-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

main58417-46020-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#

58418HBOARD, REAR FLOOR, REAR LH

main58418-46020-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

main58418-46020-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥620202301-202311

58470CHANDLE ASSY, DECK BOARD

main58470-78030-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

main58470-78030-C0iXEBM1#..C,L202301

BLACK,TRIM1#

63367DCLIP(FOR DECK FLOOR BOX)

main90467-05164-C7iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301

BLACK

sub90467-05164¥110

63709BBAND SUB-ASSY, ROOM RACK

main63709-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥230202301-202311

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-21020-C1iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

sub64725-21020¥780

main64725-21020-C1iXEBM1#..C,L202301-202311

BLACK,TRIM1#

sub64725-21020¥780

64726TCLIP, DECK FLOOR BOX

main90467-17026-A0iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301

SUPER WHITE 2,LH,RH

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-46010-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

main64730-46010-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10161iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥90202301-202311

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09232iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥70202301-202311

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-09232iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥70202301-202311

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-46010-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

main64740-46010-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#

64741BBOX, DECK SIDE TRIM, RH

main64741-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥6,500202301-202311

64742CBOX, DECK SIDE TRIM, LH

main64742-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥6,200202301-202311

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥90202301-202311

64771GCOVER, SPARE WHEEL

main64771-46070iXEBM1#..LHD..GEN202311

JACK-WITH&INDONESIA SPEC

64775DGUARD, SPARE WHEEL

main64775-46010iXEBM1#..LHD..GEN202311

JACK-WITH&INDONESIA SPEC

64910JCOVER ASSY, TONNEAU

main64910-46010-C0iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

main64910-46010-C0iXEBM1#..C,L202301

BLACK,TRIM1#

main64910-46010-C0iXEBM1#..C,L202311

TONNEAU COVER-WITHOUT,BLACK,TRIM1#

64991BOX, DECK FLOOR, FRONT

main64991-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥4,300202301-202311

64993BOX, DECK FLOOR, REAR

main64993-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

64997CCLIP(FOR DECK FLOOR BOX)

main90467-17027-C0iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

BLACK,LH,RH

66310HHOOK ASSY, ROPE

main66310-30011-C1iXEBM1#..C,L202301-202311

BLACK,TRIM1#,4#,8#

sub66310-30011¥1,750

main66310-30011-C1iXEBM1#..C,L202301-202311

BLACK,TRIM1#

sub66310-30011¥1,750

76831DCOVER, BACK DOOR FINISH PANEL, RH

main76831-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥1,760202301-202311

76832DCOVER, BACK DOOR FINISH PANEL, LH

main76832-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥1,760202301-202311

85536ABEZEL, POWER OUTLET SOCKET

9010506333

main90105-06333¥60

9011906A44

main90119-06A44¥60

9015950353

main90159-50353¥60

9018905168

main90189-05168¥120

9046710167

main90467-10167¥90

9356054012

main93560-54012¥60

37 parts on this diagram · 1 diagram in section
