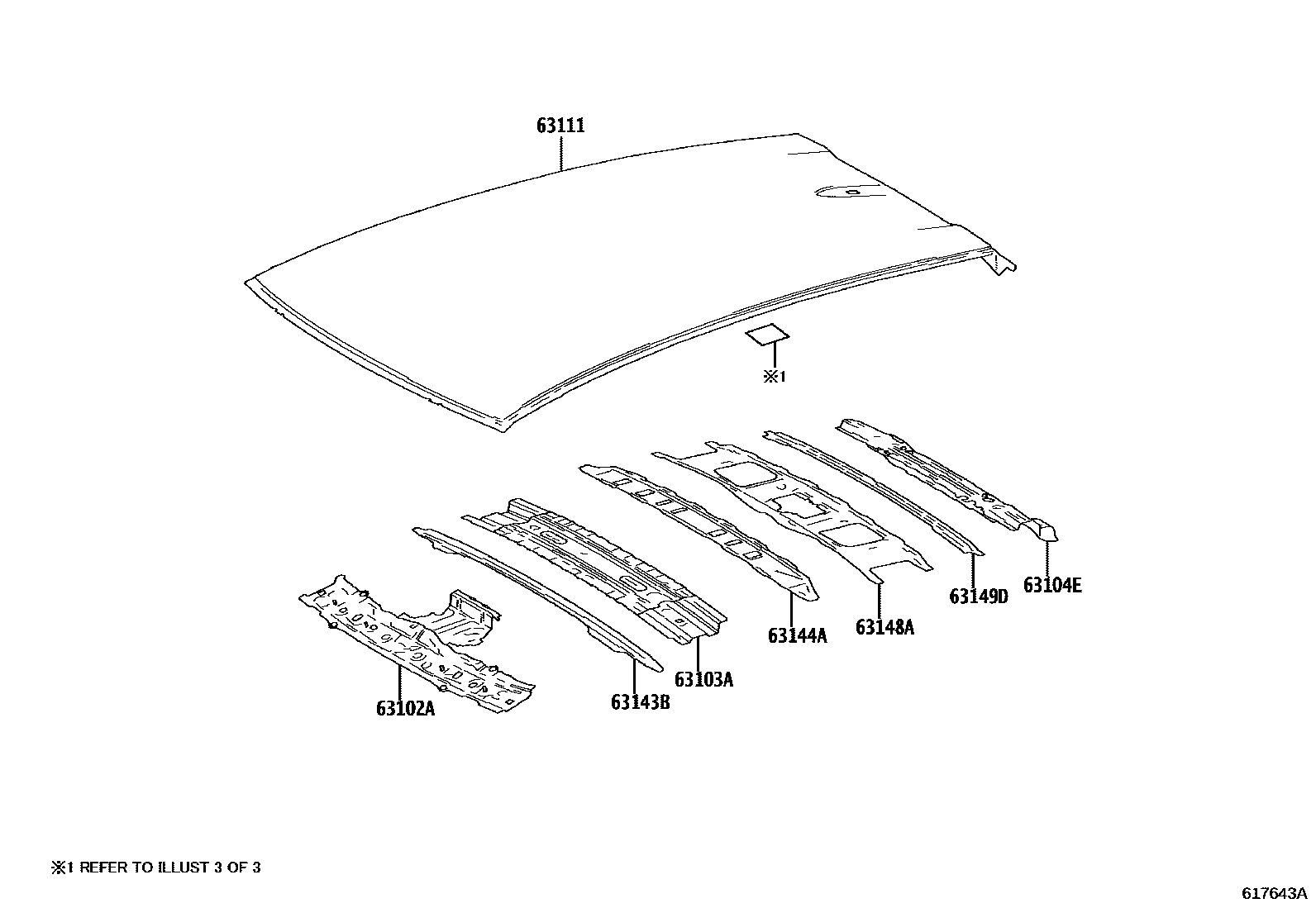

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1ROOF PANEL(DIMMING PANORAMA R0004 1ROOF RAIL 0005 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-46040iXEBM1#..(C,L)..CHI202311

ROOF TYPE-DIMMING PANORAMA ROOF

main63102-46040iXEBM15..L..(EUR,GEN);XEBM15..C..(ARL,EUR,GEN);XEBM10..(C,L)..(EUR,GEN)202311-202410

ROOF TYPE-PANORAMA ROOF

main63102-46040iXEBM15..(C,L)..(ARL,EUR,GEN)202301-202311

MOON ROOF-DIMMING PANORAMA ROOF

main63102-46040iXEBM15..L..(ARL,EUR,GEN)202301-202311

MOON ROOF-PANORAMA ROOF

main63102-46901iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202301-202311

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-46040iXEBM1#..(C,L)..CHI202311

ROOF TYPE-DIMMING PANORAMA ROOF

main63103-46040iXEBM15..L..ARL202311-202410

ROOF TYPE-PANORAMA ROOF

main63103-46040iXEBM15..(C,L)..CHI202301-202311

MOON ROOF-PANORAMA ROOF

main63103-46040iXEBM15..(C,L)..CHI202301-202311

MOON ROOF-DIMMING PANORAMA ROOF

main63103-78050iXEBM15..B..CHI202301-202311

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-46901iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

63111PANEL, ROOF

main63111-46060iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202301-202311

ROOF RAIL-WITH

main63111-46070iXEBM15..B..CHI202301-202311

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-46030iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202301-202311

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-46030iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202301-202311

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-46020iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202301-202311

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-46010iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202301-202311

8 parts on this diagram · 5 diagrams in section
