INSTRUMENT PANEL & GLOVE COMPARTMENT

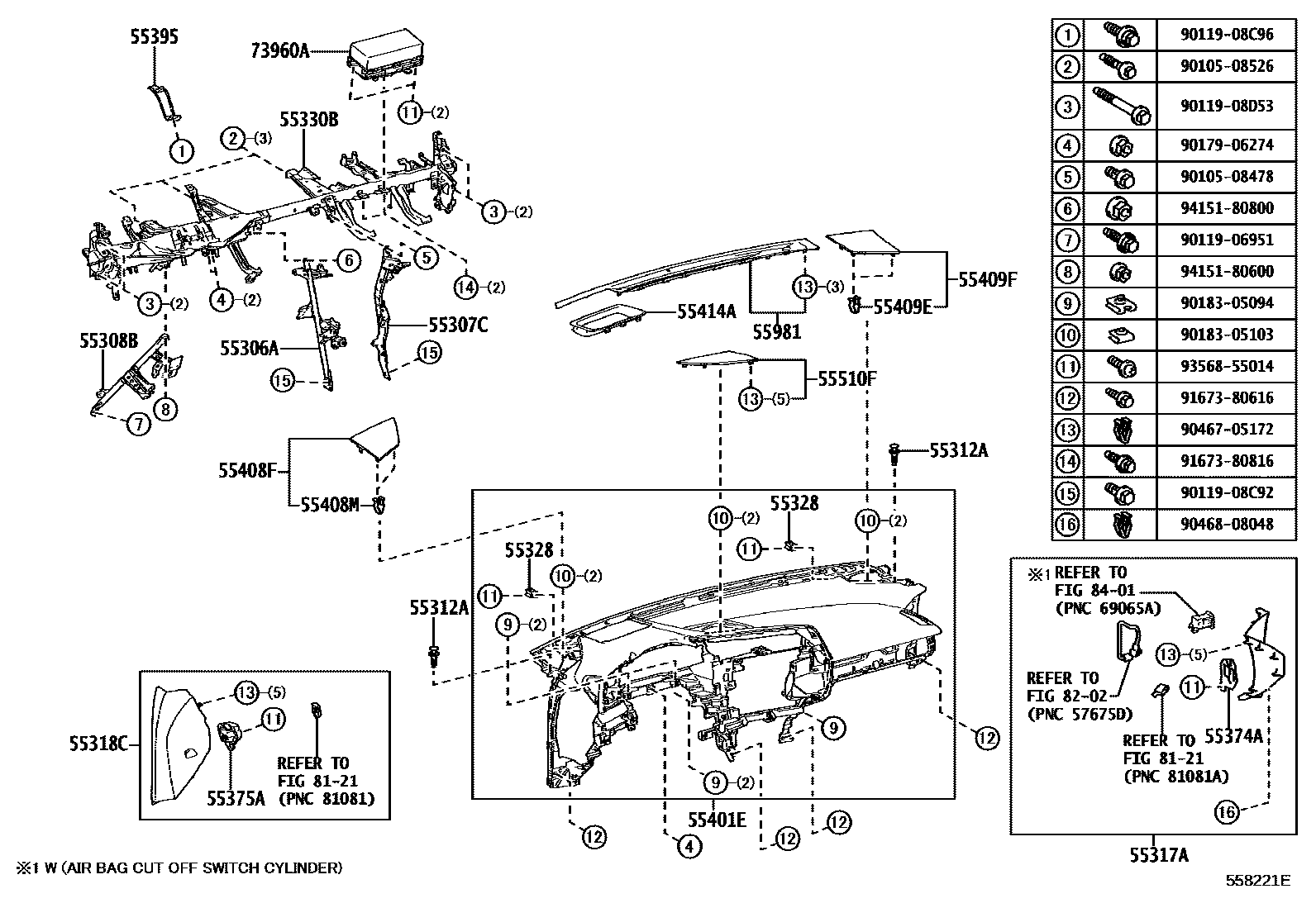

Parts diagram
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-46030i202301-202311
main55306-46040i202301-202311
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-46040i202301-202311
main55307-46050i202301-202311
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-46020i202301-202311
main55308-46050i202301-202311
55312ACLIP, INSTRUMENT PANEL
main52161-16010i202301-202311
sub52161-0K040
55317APANEL, INSTRUMENT SIDE, RH
main55317-46060-C0i202301-202311
BLACK,TRIM1#
main55317-46110-C0i202301-202410
BLACK,TRIM1#,4#,8#
main55317-46130-C0i202301-202410
MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55317-46130-C0i202410
BLACK,TRIM1#,4#,8#
main55318-46010-C0i202301
BLACK,TRIM1#
main55318-46030-C0i202301-202311
TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main55318-46030-C0i202301-202410
BLACK,TRIM1#,4#,8#
main55318-46030-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main55318-46040-C0i202301-202311
BLACK,TRIM1#
main55318-46060-C0i202301-202410
BLACK,TRIM1#,4#,8#
main55318-46120-C0i202301-202410
MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55318-46120-C0i202410
BLACK,TRIM1#,4#,8#
main55318-46130-C0i202301-202410
MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55318-46130-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC&MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55318-46130-C0i202301-202311
TAIWAN SPEC&MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55318-46130-C0i202410
BLACK,TRIM1#,4#,8#
55318CPANEL, INSTRUMENT SIDE, LH
main55317-46020-C0i202301-202311
BLACK,TRIM1#
main55317-46090-C0i202301-202410
BLACK,TRIM1#,4#,8#
main55317-46120-C0i202301-202311
TAIWAN SPEC&MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55317-46120-C0i202301-202410
MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55317-46120-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC&MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55317-46120-C0i202410
BLACK,TRIM1#,4#,8#
main55318-46080-C0i202302-202410
BLACK,TRIM1#,4#,8#
main55318-46090-C0i202301-202311
BLACK,TRIM1#
main55318-46110-C0i202301-202410
BLACK,TRIM1#,4#,8#
main55318-46140-C0i202301-202410
MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55318-46140-C0i202410
BLACK,TRIM1#,4#,8#
main55318-46150-C0i202302-202410
MULTI COLOR SHADE ILLUMINATION,BLACK,TRIM1#,4#,8#
main55318-46150-C0i202410
BLACK,TRIM1#,4#,8#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-12430i202301-202311
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-46030i202301-202311
main55330-46070i202301-202311
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
main55374-46070i202301-202311
main55374-46080i202301-202311
main55375-46020i202301-202311
main55375-46060i202301-202311
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
main55374-46030i202301-202311
main55374-46040i202301-202311
main55375-46030i202301-202311
main55375-46070i202301-202311
55395BRACKET, INSTRUMENT PANEL TO PEDAL
main55395-46010i202301-202311
main55395-46020i202301-202311
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55400-46010-C0i202301-202311
SOFT BLACK,TRIM1#
main55400-46010-C0i202301-202311
SOFT BLACK,TRIM1#,4#,8#
main55400-46020-C0i202301-202311
HEAD UP DISPLAY-WITH,SOFT BLACK,TRIM1#,4#,8#
main55400-46020-C0i202301-202311
SOFT BLACK,TRIM1#,4#,8#
main55400-46040-C0i202301-202311
SOFT BLACK,TRIM1#,4#,8#
main55400-46040-C0i202301-202311
SOFT BLACK,TRIM1#
main55400-46050-C0i202301-202311
HEAD UP DISPLAY-WITH,SOFT BLACK,TRIM1#,4#,8#
main55400-46050-C0i202301-202311
SOFT BLACK,TRIM1#,4#,8#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
main55408-46030-C0i202301-202311
BLACK,TRIM1#,4#,8#
main55408-46030-C0i202301-202311
BLACK,TRIM1#
main55408-46040-C0i202301-202311
AUDIO-EMV,BLACK,TRIM1#,4#,8#
main55408-46040-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR),BLACK,TRIM1#,4#,8#
main55408-46050-C0i202301-202311
BLACK,TRIM1#,4#,8#
main55408-46050-C0i202301-202311
BLACK,TRIM1#
main55408-46060-C0i202301-202311
AUDIO-EMV,BLACK,TRIM1#,4#,8#
55408MCLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
main90467-05172i202301-202311
55409ECLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
main90467-05172i202301-202311
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
main55409-46030-C0i202301-202311
BLACK,TRIM1#,4#,8#
main55409-46030-C0i202301-202311
BLACK,TRIM1#
main55409-46040-C0i202301-202311
AUDIO-EMV,BLACK,TRIM1#,4#,8#
main55409-46040-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR),BLACK,TRIM1#,4#,8#
main55409-46050-C0i202301-202311
BLACK,TRIM1#
main55409-46050-C0i202301-202311
BLACK,TRIM1#,4#,8#
main55409-46060-C0i202301-202311
AUDIO-EMV,BLACK,TRIM1#,4#,8#
55414APANEL, INSTRUMENT CLUSTER FINISH, END
main55414-46020i202301-202311
HEAD UP DISPLAY-WITH
main55414-46040i202301-202311
HEAD UP DISPLAY-WITH
55510FCOVER ASSY, SPEAKER OPENING, NO.1
main55510-46010-C0i202301-202311
BLACK,TRIM1#
main55510-46010-C0i202301-202311
BLACK,TRIM1#,4#,8#
main55510-46020-C0i202301-202311
BLACK,TRIM1#,4#,8#
main55510-46020-C0i202301-202311
BLACK,TRIM1#
main55510-46030-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR),BLACK,TRIM1#,4#,8#
main55510-46030-C0i202301-202311
AUDIO-EMV,BLACK,TRIM1#,4#,8#
main55510-46040-C0i202301-202311
AUDIO-EMV,BLACK,TRIM1#,4#,8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-46010i202301-202311
main55981-46020i202301-202311
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-46020i202301-202311
8121
8202
8401
9010508478
main90105-08478
9010508526
main90105-08526
9011906951
main90119-06951
9011908C92
main90119-08C92
9011908C96
main90119-08C96
9011908D53
main90119-08D53
9017906274
main90179-06274
9018305094
main90183-05094
9018305103
main90183-05103
9046705172
main90467-05172
9046808048
main90468-08048
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800

39 parts on this diagram · 8 diagrams in section
