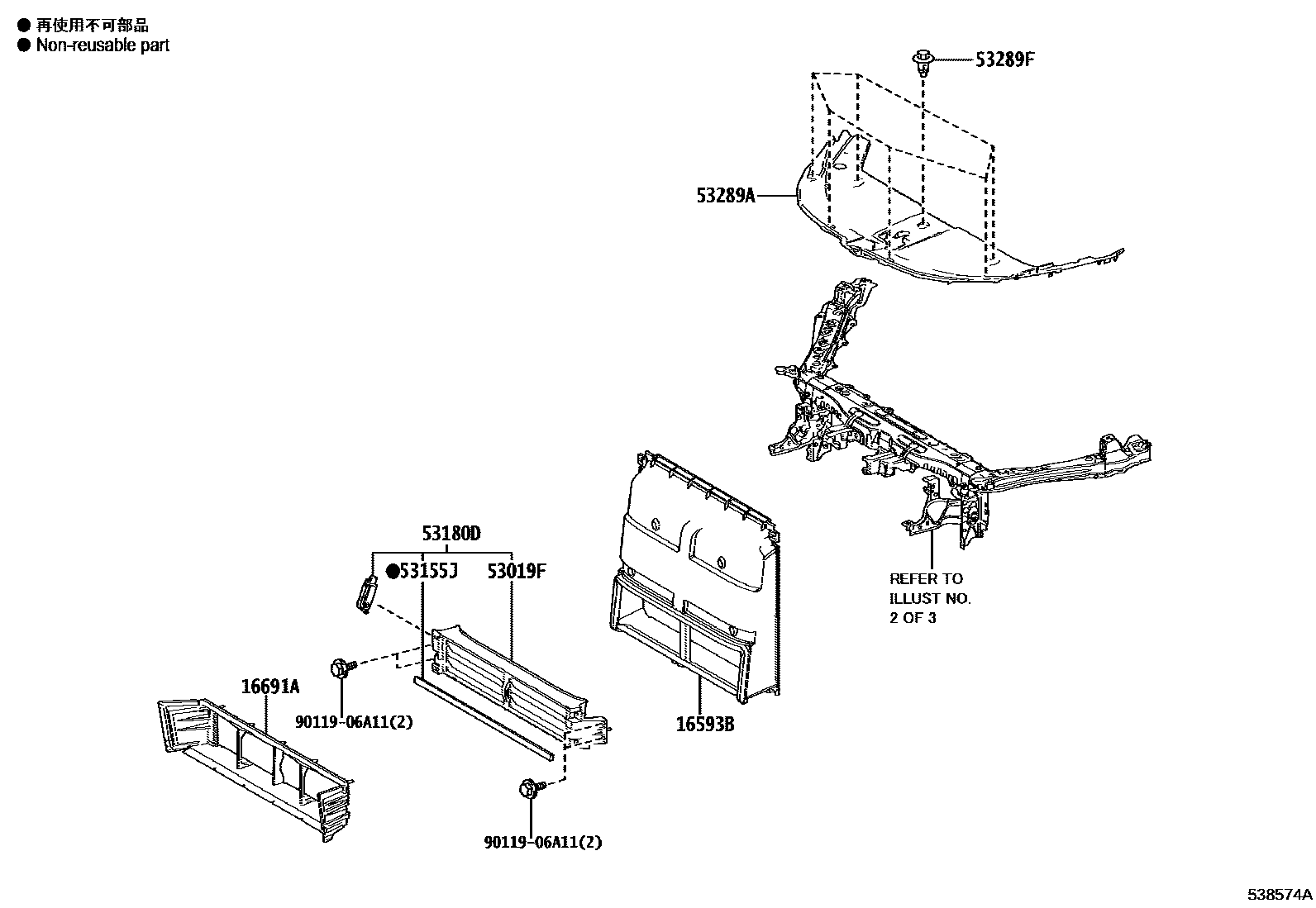

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL 0004 1DASH PANEL

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-10020iEM..XEBM15..(C,L)..CHI;EM..XEBM15..ARL,EUR,GEN202301-202311

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-10020iEM..XEBM10;EM..XEBM15..(C,L)..CHI;EM..XEBM15..ARL,EUR,GEN202301-202311

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-42060iXEBM15202301

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-42070iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301

53180DSHUTTER ASSY, RADIATOR

main53180-42060iXEBM15202301-202303

sub53180-42061

main53180-42061iXEBM15202304-202308

sub53180-42062

main53180-42062iXEBM15202309-202404

sub53180-42063

main53180-42063iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202405

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07217iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

9011906A11

main90119-06A11

8 parts on this diagram · 4 diagrams in section
