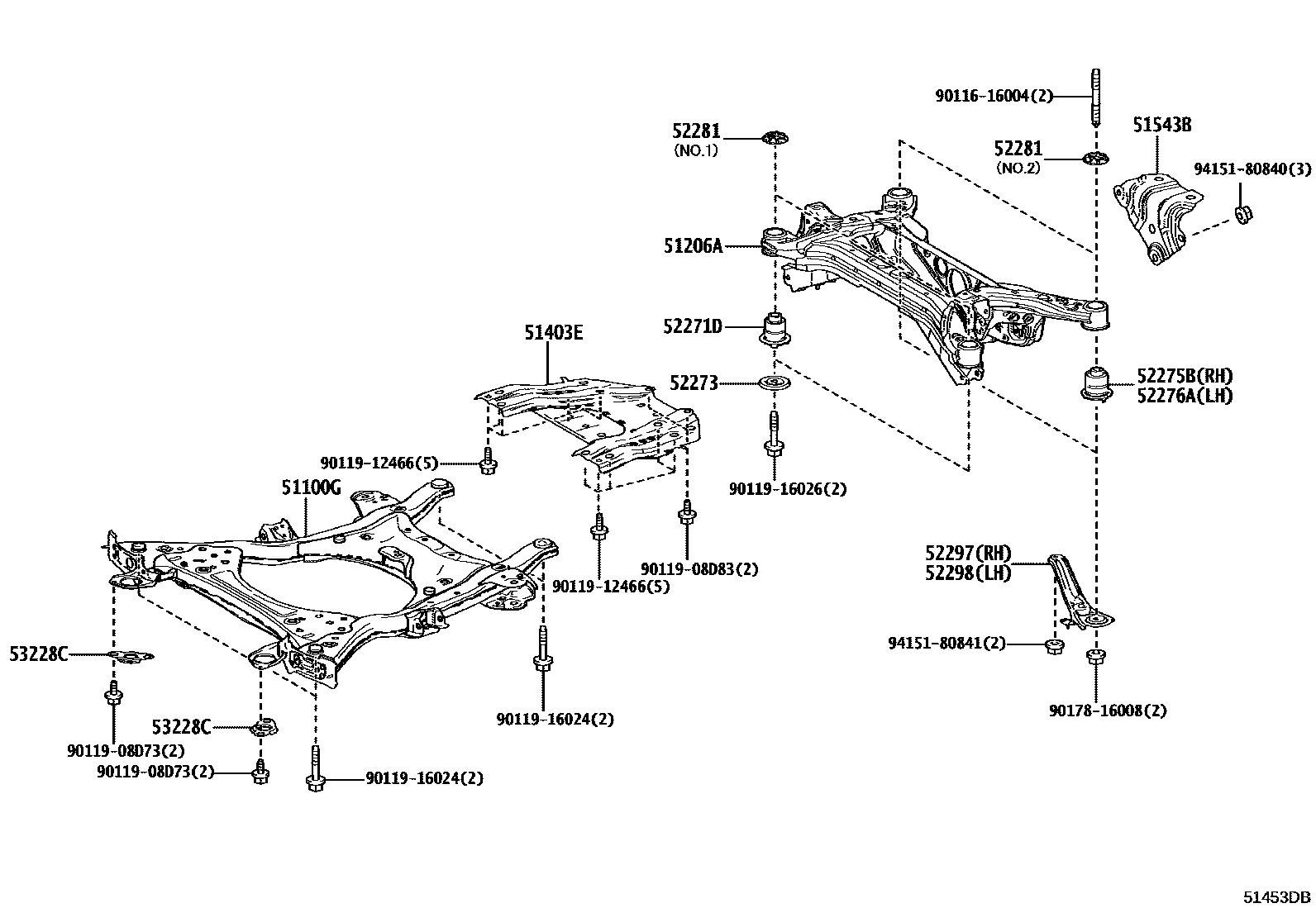

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1MOTOR UNDER COVER 0004 1FLOOR UNDER COVER 0005 1FLOOR UNDER COVER

51100GFRAME ASSY, FRONT

main51100-42041iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥54,800202301-202311

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51200-42010iXEBM10202311-202403

main51200-42013iXEBM10¥60,200202403-202404

sub51200-42014¥60,200

main51200-42014iXEBM10¥60,200202405-202409

sub51200-42015¥54,700

main51200-42015iXEBM10¥54,700202410

main51200-42040iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥60,300202301-202403

sub51200-42042¥54,700

main51200-42041iXEBM15..B..CHI202311-202402

main51200-42042iXEBM15..B..CHI¥54,700202403

51403EBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-42020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥8,200202301-202311

51543BBRACKET, DAMPER

main51543-42010iXEBM10¥1,600202311

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-42020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥2,570202301-202311

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33030iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥820202301-202311

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-42020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥2,750202301-202311

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-42020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥2,750202301-202311

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥430202301-202311

NO.1:REFER ILLUST.

main52281-42020iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥430202301-202311

NO.2:REFER ILLUST.

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-42040iXEBM15..B..CHI¥2,050202301-202311

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-42030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥2,190202301-202311

53228CBRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-42040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN¥720202301-202311

9011616004

main90116-16004¥610

9011908D73

main90119-08D73¥120

9011908D83

main90119-08D83¥120

9011912466

main90119-12466¥240

9011916024

main90119-16024¥490

9011916026

main90119-16026¥610

9017816008

main90178-16008¥190

9415180840

main94151-80840¥80

9415180841

main94151-80841¥80

21 parts on this diagram · 5 diagrams in section
