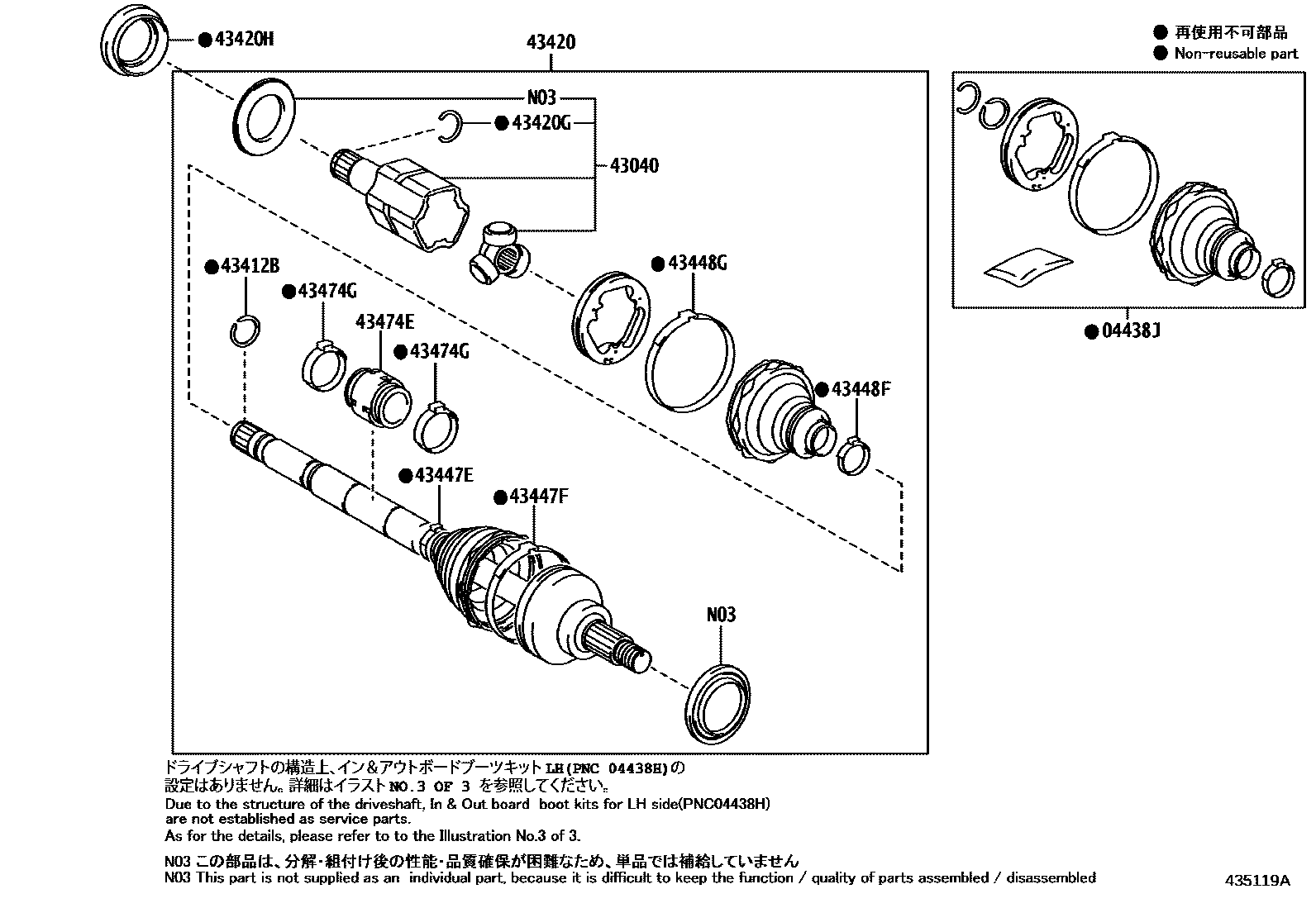

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-42100iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43404-42020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-24010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-42010iXEBM1#..EUR202301-202311

main43430-42030iXEBM15..LHD..(C,L)..EUR202301-202311

TAIWAN SPEC

main43430-42030iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)202311

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

main43430-42030iXEBM15..B..CHI202301

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90521-34003iXEBM15..B..CHI202301-202311

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50068iXEBM15..B..CHI202301-202411

main90311-50070iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202412

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-48140iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-42180iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-24020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-42160iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-42100iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-78030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

12 parts on this diagram · 3 diagrams in section
