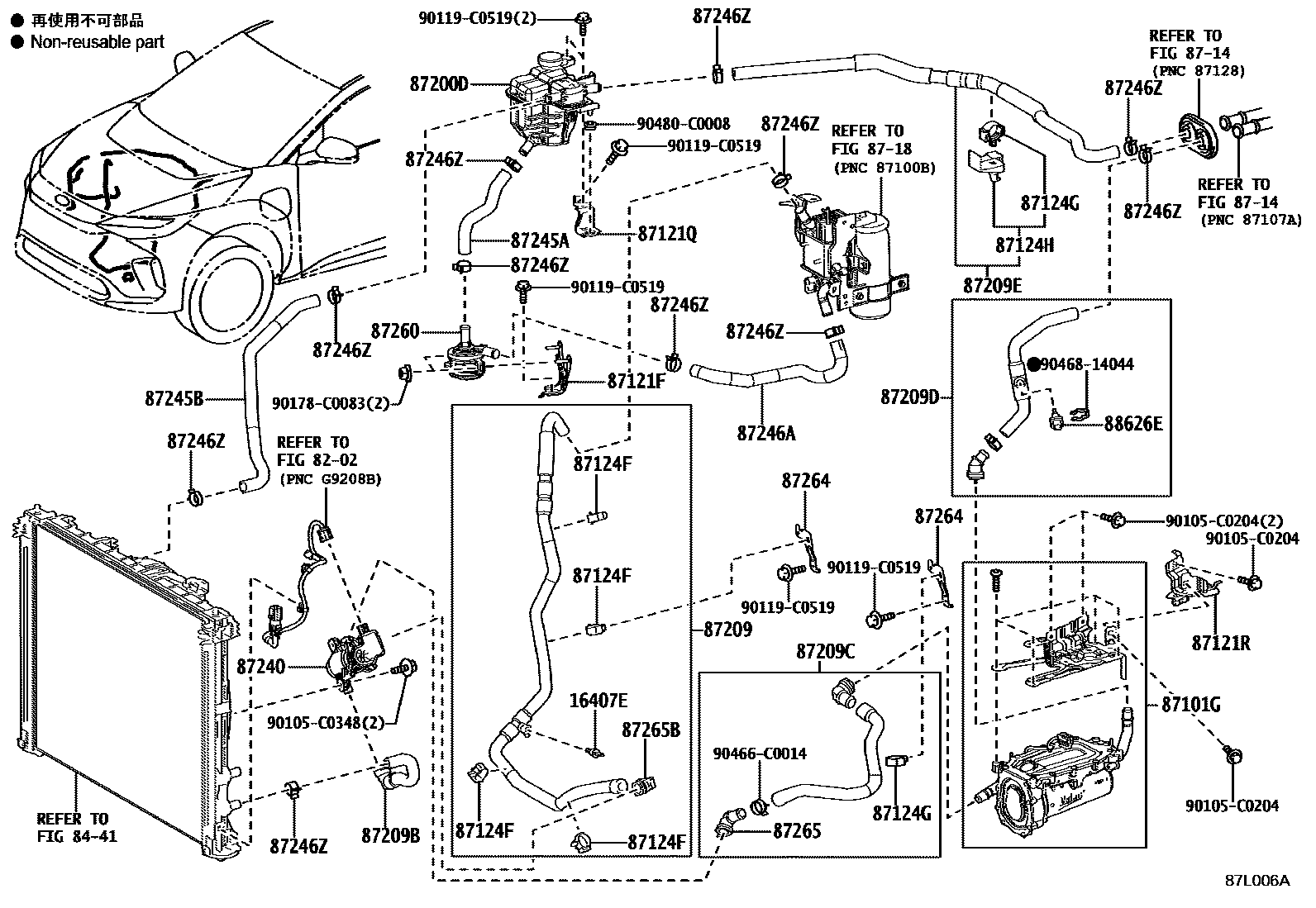

HEATING & AIR CONDITIONING - WATER PIPING

16407ECOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iEM..XEAM10,YEAM15¥380202210

8202

8441

87101GHEATER SUB-ASSY, ELECTRIC

main87101-0R020iXEAM10,YEAM15202210

87121FBRACKET, HEATER

main87121-0R140iXEAM10,YEAM15202210

87121QBRACKET, HEATER NO.2

main87121-0R150iXEAM10,YEAM15202210

87121RBRACKET, HEATER NO.3

main87121-0R170iXEAM10,YEAM15202210

87124FCLAMP, HEATER HOSE, NO.1

main16581-0Z160iXEAM10,YEAM15202210

87124GCLAMP, HEATER HOSE, NO.2

main16581-0Z160iXEAM10,YEAM15202210

87124HCLAMP, HEATER HOSE, NO.3

main16581-0Z120iXEAM10,YEAM15202210

8714

8718

87200DACCESSORY ASSY, HEATER

main87200-0R020iXEAM10,YEAM15202210

87209HOSE SUB-ASSY, WATER

main87209-0R360iXEAM10,YEAM15202210

87209BHOSE SUB-ASSY, WATER, B

main87209-0R380iXEAM10,YEAM15202210

87209CHOSE SUB-ASSY, WATER, C

main87209-0R400iXEAM10,YEAM15202210

87209DHOSE SUB-ASSY, WATER, D

main87209-0R420iXEAM10,YEAM15202210

87209EHOSE SUB-ASSY, WATER, E

main87209-0R440iXEAM10,YEAM15202210

87240VALVE ASSY, HEATER WATER

main87240-0R020iXEAM10,YEAM15202210

87245AHOSE, HEATER WATER, INLET A

main87245-0R230iXEAM10,YEAM15202210

87245BHOSE, HEATER WATER, INLET B

main87245-0R370iXEAM10,YEAM15202210

87246AHOSE, HEATER WATER, OUTLET A

main87245-0R350iXEAM10,YEAM15202210

87246ZCLIP

main90466-C0014iXEAM10,YEAM15202210

87260PUMP ASSY, HEATER

main87260-0R010iXEAM10,YEAM15202210

87264BRACKET, HEATER WATER HOSE

main87263-0R020iXEAM10,YEAM15202210

87265CONNECTOR, HEATER WATER HOSE

main87265-0R050iXEAM10,YEAM15202210

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87265-0R070iXEAM10,YEAM15202210

88626ESENSOR, WATER TEMPERATURE

main89422-33040iXEAM10,YEAM15¥2,410202210

90105C0204

main90105-C0204

90105C0348

main90105-C0348

90119C0519

main90119-C0519

90178C0083

main90178-C0083

90466C0014

main90466-C0014

9046814044

main90468-14044¥60

90480C0008

main90480-C0008

35 parts on this diagram · 1 diagram in section
