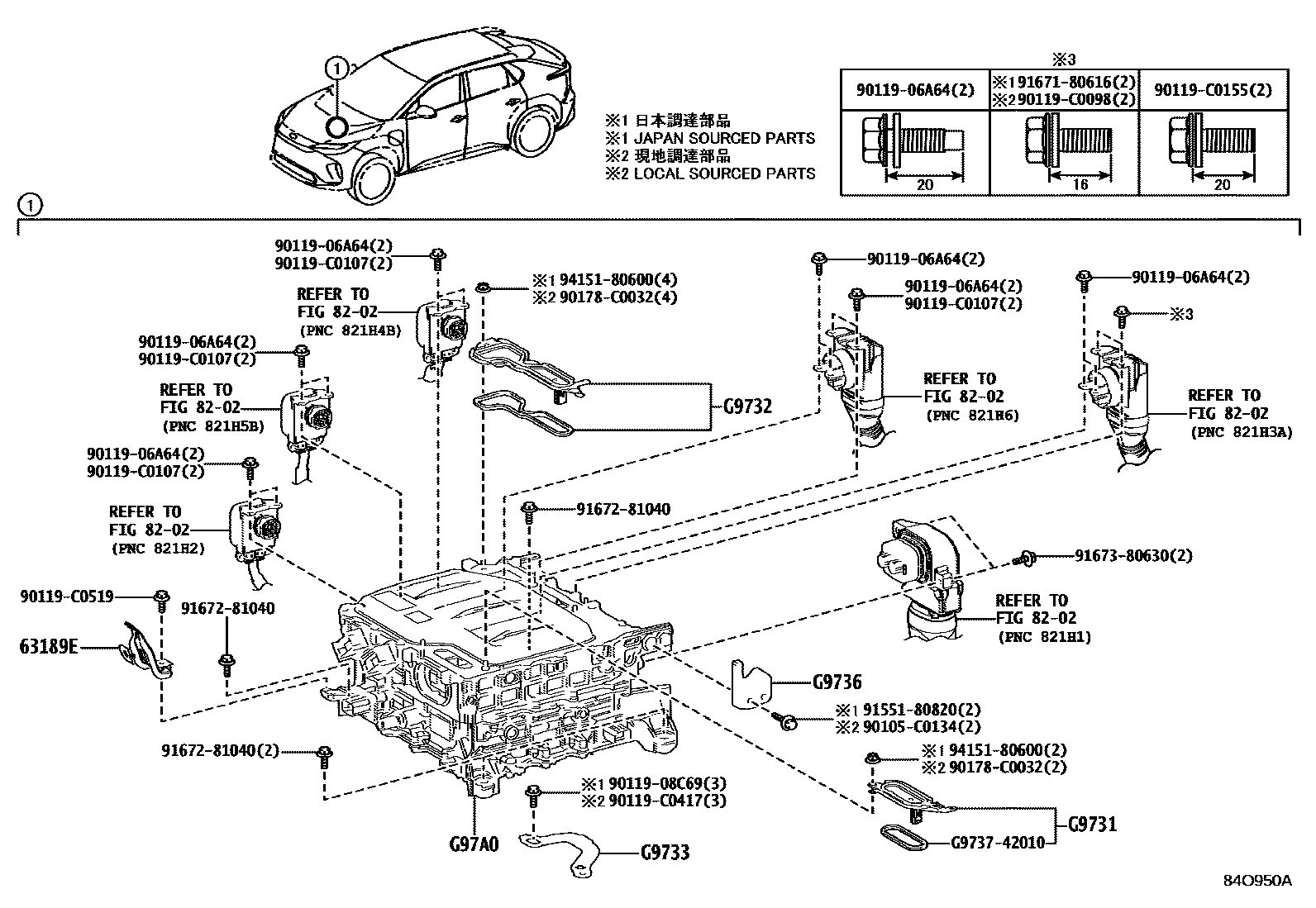

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1 0003 1CHARGE CABLE

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-0R050iXEAM10,YEAM15202210

8202

G9731COVER, TERMINAL, NO.1

mainG973142010iXEAM10,YEAM15202210

G9732COVER, TERMINAL, NO.2

mainG973242011iXEAM10,YEAM15202210

G9733BRACKET, EARTH

mainG97330R010iXEAM10,YEAM15202210

G9736PROTECTOR, CONNECTOR, NO.3

mainG97360R010iXEAM10,YEAM15202210

G97A0UNIT ASSY, ELECTRIC CONVERTER W/CAP

mainG97A00R050iXEAM10202210-202308

mainG97A00R060iYEAM15..M202210-202308

mainG97A00R070iYEAM15..H202210-202308

mainG97A00R100iXEAM10202308

mainG97A00R120iYEAM15..M202308

mainG97A00R130iYEAM15..H202308

mainG97A00R080iXEAM10..L202210-202308

ENTRY PACKAGE

mainG97A00R110iXEAM10..L202308

ENTRY PACKAGE

90105C0134

main90105-C0134

9011906A64

main90119-06A64

9011908C69

main90119-08C69

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0155

main90119-C0155

90119C0417

main90119-C0417

90119C0519

main90119-C0519

90178C0032

main90178-C0032

9155180820

main91551-80820

9167180616

main91671-80616

9167281040

main91672-81040

9167380630

main91673-80630

9415180600

main94151-80600

G973742010GASKET, TERMINAL COVER, NO.1

mainG9737-42010
