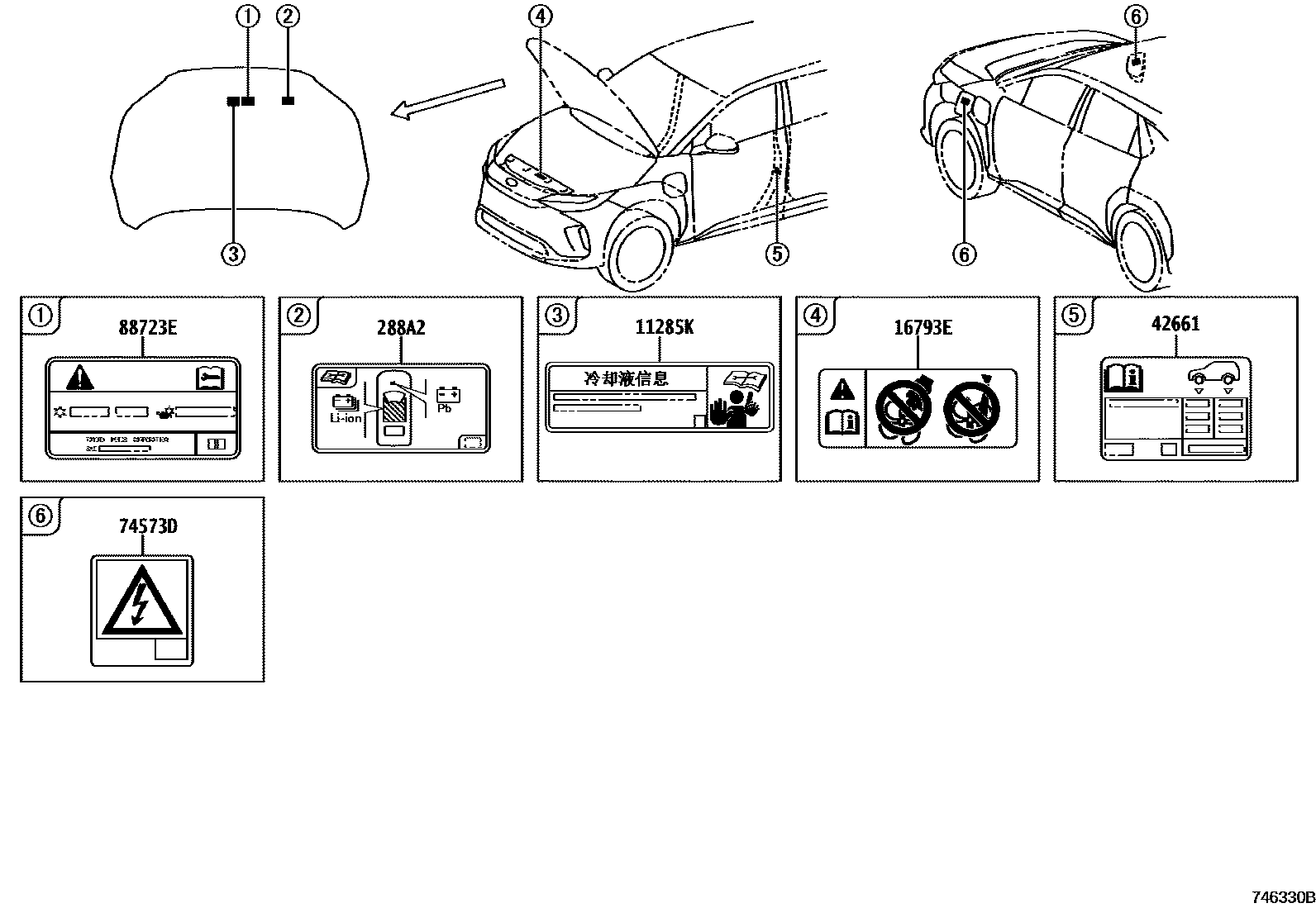

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11285KLABEL, COOLANT SYSTEM INFORMATION

main11285-0Z050iEM..XEAM10,YEAM15202210

16793ELABEL, COOLING FAN CAUTION

main16793-36030iEM..XEAM10,YEAM15202210

288A2LABEL, BATTERY LOCATION

main288A2-0Z020iEM..XEAM10,YEAM15202210

42661LABEL, TIRE PRESSURE INFORMATION

main42661-0R430iXEAM10,YEAM15..L,M202210

main42661-0R440iYEAM15..H202210

74573DLABEL, ELECTRIC VEHICLE BATTERY CAUTION

main74573-0R040iXEAM10,YEAM15202210

88723ELABEL, COOLER SERVICE CAUTION

main88723-F4090iXEAM10,YEAM15202210

6 parts on this diagram · 2 diagrams in section
