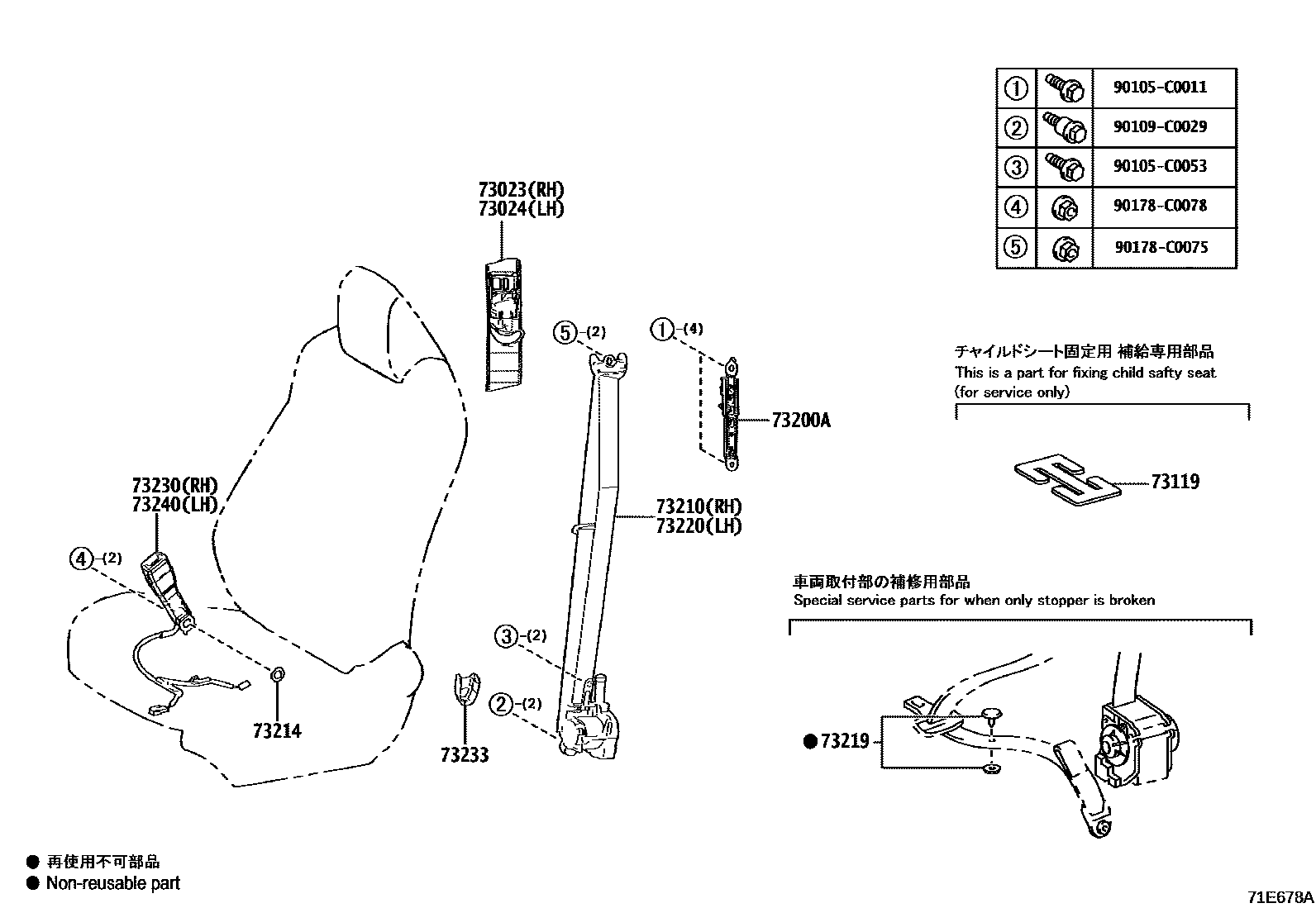

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02160-C0iXEAM10..M;YEAM15..H202210

BLACK,TRIM1#,3#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02160-C0iXEAM10..M;YEAM15..H202210

BLACK,TRIM1#,3#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iXEAM10,YEAM15202210

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×2iXEAM10,YEAM15202210

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02760-C2iXEAM10..M;YEAM15..H202210

BLACK,TRIM1#,3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iXEAM10,YEAM15202210

73219STOPPER, TONGUE PLATE

main73219-33010iXEAM10,YEAM15202210

BLACK

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0R090-C0iXEAM10..M;YEAM15..H202210

BLACK,TRIM1#,3#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0R380-C0iXEAM10..M;YEAM15..H202210

BLACK,TRIM1#,3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R030-C1×2iXEAM10..M;YEAM15..H202210

BLACK,TRIM1#,3#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0R400-C0iYEAM15..H202210

BLACK,TRIM1#,2#,3#

main73240-02200-C0iYEAM15..M202210

BLACK,TRIM1#,3#

main73240-02210-C0iXEAM10..L202210

BLACK,TRIM1#,2#

90105C0011

main90105-C0011

90105C0053

main90105-C0053

90109C0029

main90109-C0029

90178C0075

main90178-C0075

90178C0078

main90178-C0078

16 parts on this diagram · 2 diagrams in section
