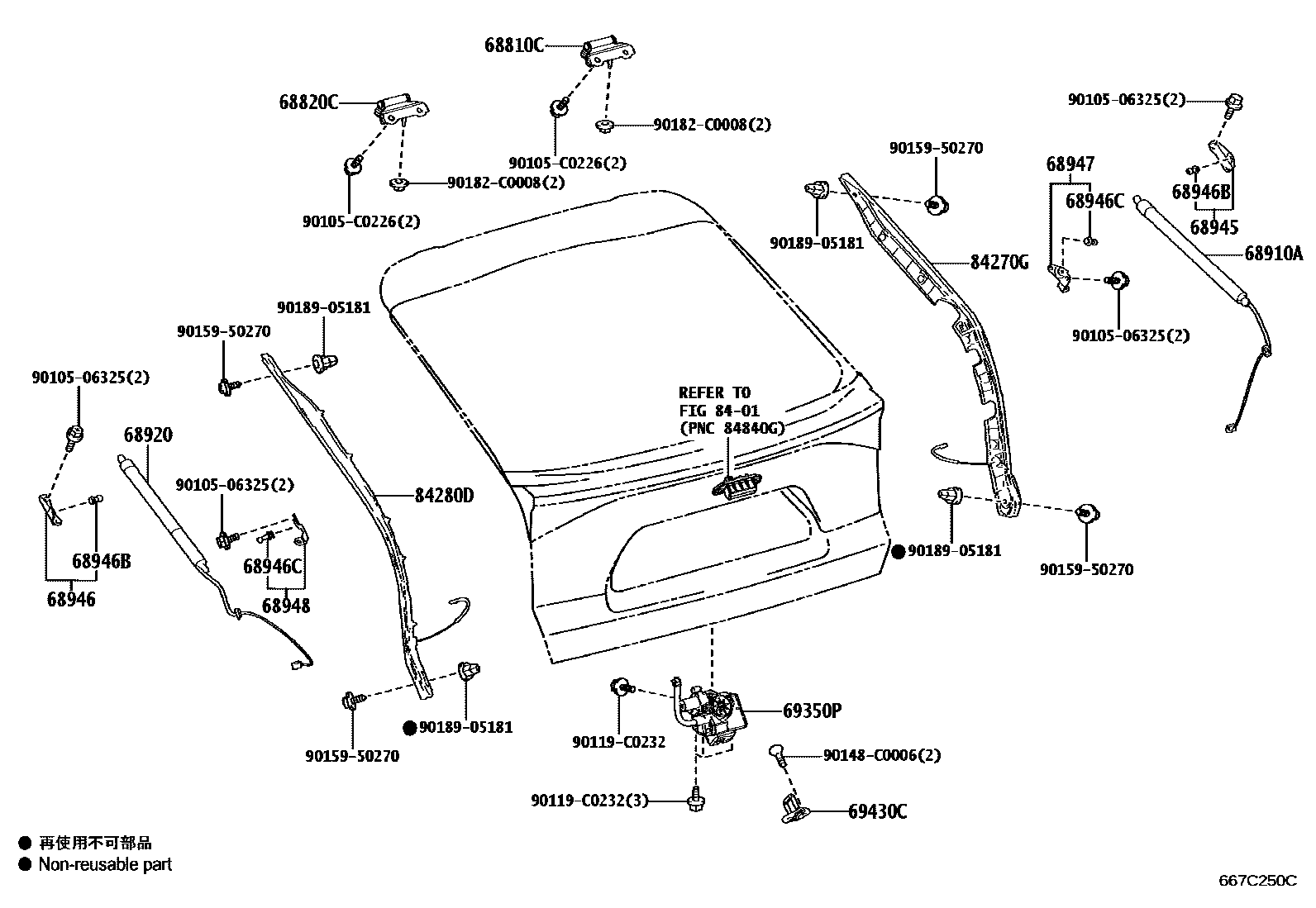

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
PAD T=1.0
PAD T=1.5
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
PAD T=1.0
T=1.5
PAD T=2.0
68910AUNIT ASSY SET, POWER BACK DOOR, RH
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR
68920UNIT ASSY SET, POWER BACK DOOR, LH
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR
68946BJOINT, BACK DOOR STAY, UPR
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR
68946CJOINT, BACK DOOR STAY, LWR
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR
69430CSTRIKER ASSY, BACK DOOR LOCK
8401
84270GSENSOR ASSY, POWER BACK DOOR, RH
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR
84280DSENSOR ASSY, POWER BACK DOOR, LH
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR
9010506325
main90105-06325
90105C0226
main90105-C0226
90119C0232
main90119-C0232
90148C0006
main90148-C0006
9015950270
main90159-50270
90182C0008
main90182-C0008
9018905181
main90189-05181
22 parts on this diagram · 2 diagrams in section
