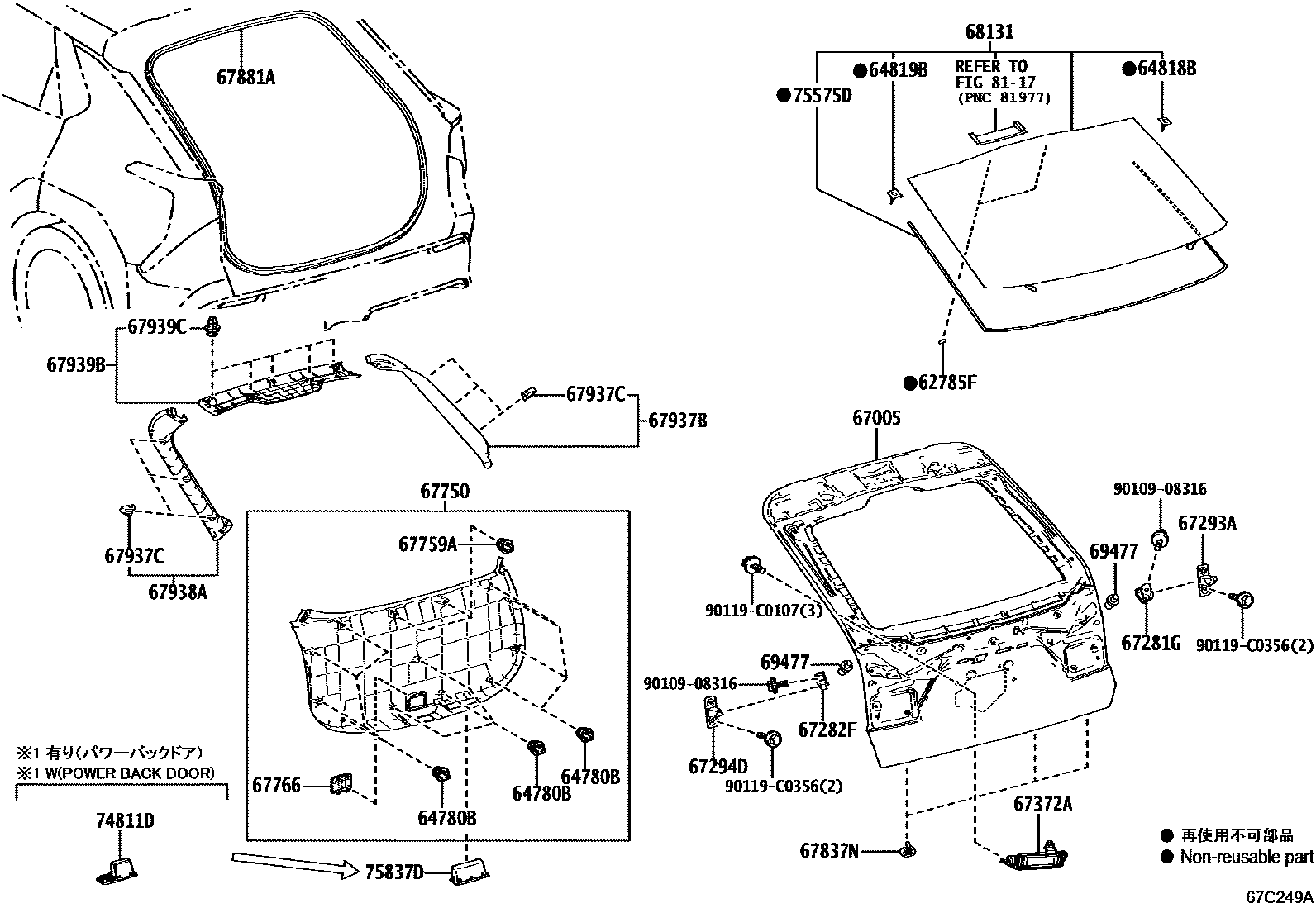

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64780BCLIP(FOR BACK DOOR TRIM PANEL)
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67281GSTOPPER, BACK DOOR, LOWER RH
67282FSTOPPER, BACK DOOR, LWR LH
67293ACUSHION, BACK DOOR STOPPER
67294DCUSHION, BACK DOOR STOPPER, LH
67372AWEIGHT, BACK DOOR
67750BOARD ASSY, BACK DOOR TRIM
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
67759ACLIP(FOR BACK DOOR TRIM BOARD)
67766COVER, BACK DOOR SERVICE HOLE, NO.2
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67937BGARNISH, BACK DOOR SIDE, RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
67937CCLIP(FOR BACK DOOR SIDE GARNISH)
67938AGARNISH, BACK DOOR SIDE, LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
67939BGARNISH, BACK DOOR, CENTER
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
67939CCLIP(FOR BACK DOOR CENTER GARNISH)
68131GLASS, BACK DOOR
AUDIO-AVN
69477CUSHION, BACK DOOR UPPER STOPPER
74811DHANDLE, DOOR PULL
BLACK,TRIM1#,2#,3#
75575DMOULDING, BACK WINDOW, LOWER
75837DCOVER, BACK DOOR FINISH, RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#
8117
9010908316
90119C0107
main90119-C0107
90119C0356
main90119-C0356
29 parts on this diagram · 1 diagram in section
