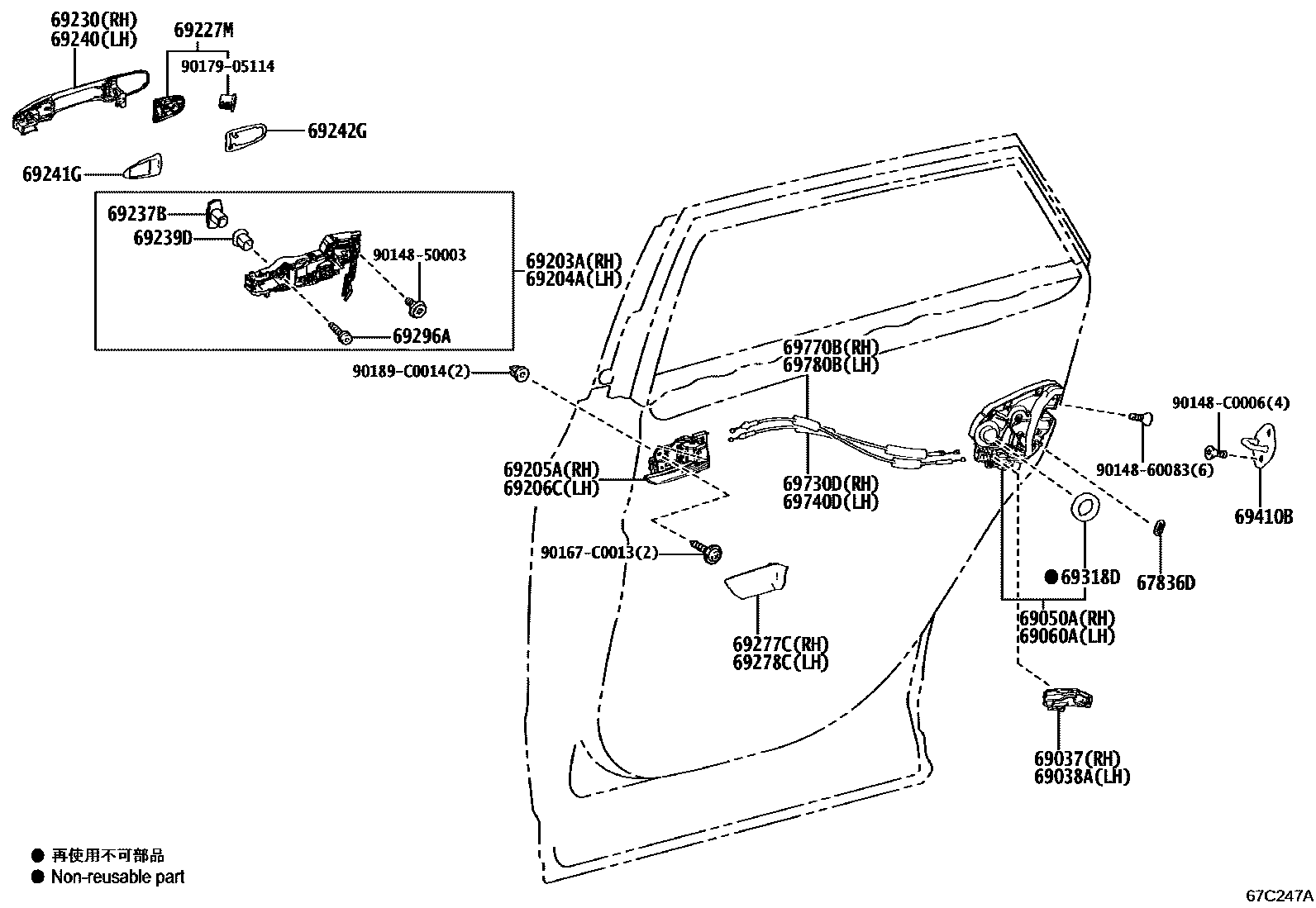

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,3#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,3#
BLACK,TRIM1#,2#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
BLACK
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATINUM WHITE PEARL MC.,089 ,2PU
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089 ,2PU
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089 ,2PU
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0 ,2TX
SILVER ME.,1L0 ,2TX
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0 ,2TX
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.GRAY ME.,1L9 ,2WX
DK.GRAY ME.,1L9 ,2WX
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.GRAY ME.,1L9 ,2WX
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PRECIOUS METAL,1L5 ,2YV
PRECIOUS METAL,1L5 ,2YV
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACK MC.,209
BLACK MC.,209
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACK MC.,209
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACKISH AGEHA GF.,221 ,2WE
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACKISH AGEHA GF.,221 ,2WE
BLACKISH AGEHA GF.,221 ,2WE
DARK SHERRY M.M.,2WF ,4W4
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DARK SHERRY M.M.,2WF ,4W4
PLATINUM WHITE PEARL MC.,089 ,2PU
SILVER ME.,1L0 ,2TX
DK.GRAY ME.,1L9 ,2WX
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
BLACKISH AGEHA GF.,221 ,2WE
DARK SHERRY M.M.,2WF ,4W4
69237BNUT, REAR DOOR HANDLE
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
69239DBUSH, REAR DOOR HANDLE
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089 ,2PU
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089 ,2PU
PLATINUM WHITE PEARL MC.,089 ,2PU
SILVER ME.,1L0 ,2TX
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0 ,2TX
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0 ,2TX
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.GRAY ME.,1L9 ,2WX
DK.GRAY ME.,1L9 ,2WX
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.GRAY ME.,1L9 ,2WX
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PRECIOUS METAL,1L5 ,2YV
PRECIOUS METAL,1L5 ,2YV
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACK MC.,209
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACK MC.,209
BLACK MC.,209
BLACKISH AGEHA GF.,221 ,2WE
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACKISH AGEHA GF.,221 ,2WE
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACKISH AGEHA GF.,221 ,2WE
DARK SHERRY M.M.,2WF ,4W4
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DARK SHERRY M.M.,2WF ,4W4
PLATINUM WHITE PEARL MC.,089 ,2PU
SILVER ME.,1L0 ,2TX
DK.GRAY ME.,1L9 ,2WX
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
BLACKISH AGEHA GF.,221 ,2WE
DARK SHERRY M.M.,2WF ,4W4
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#
69296ASCREW, DOOR INSIDE HANDLE
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
9017905114
main90179-05114
90189C0014
main90189-C0014
31 parts on this diagram · 1 diagram in section
