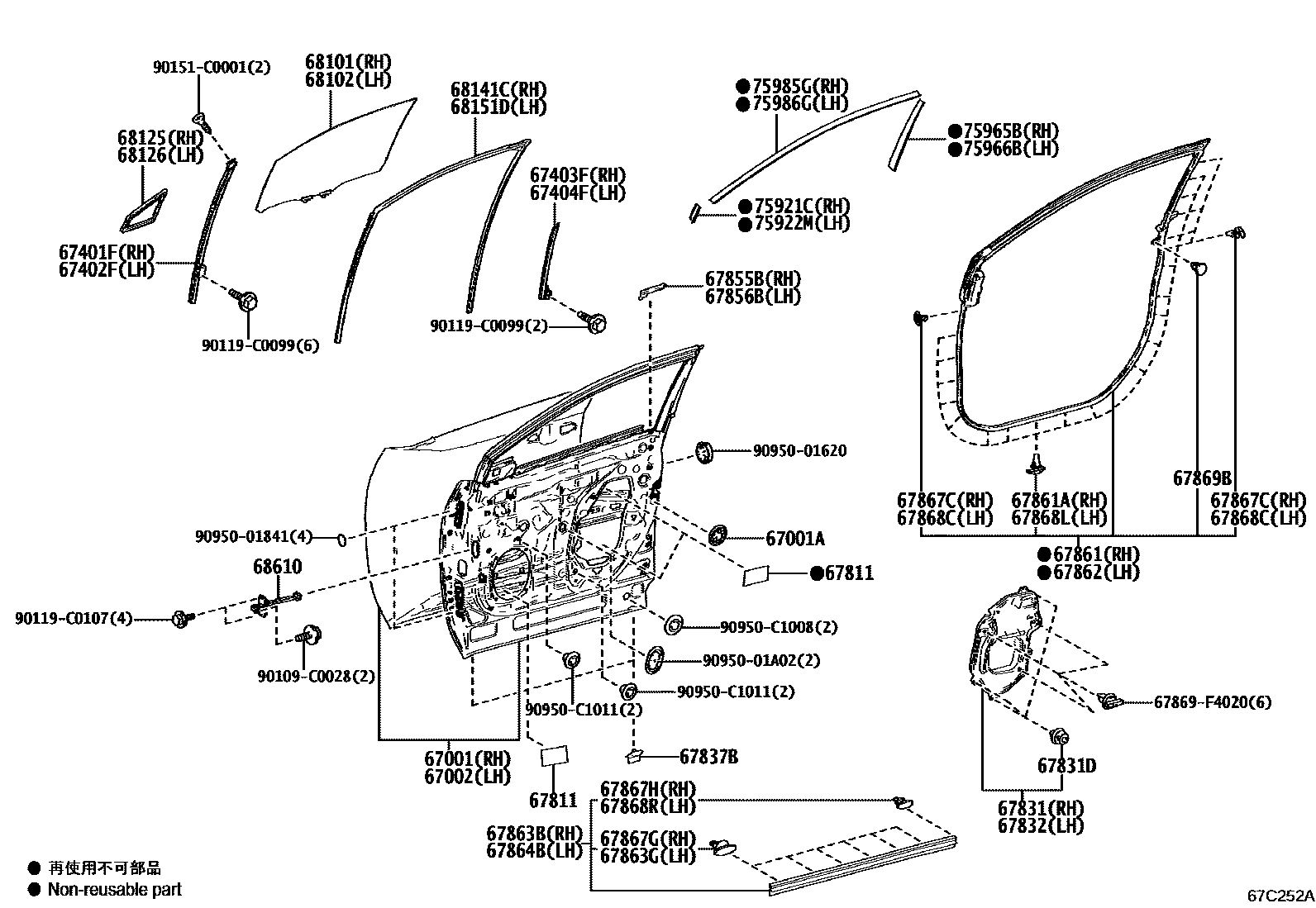

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0R150iXEAM10,YEAM15202210

67001ACUSHION, FRONT DOOR PANEL

main90541-C0003iXEAM10,YEAM15202210

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0R170iXEAM10,YEAM15202210

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0R050iXEAM10,YEAM15202210

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0R050iXEAM10,YEAM15202210

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0R100iXEAM10,YEAM15202210

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0R100iXEAM10,YEAM15202210

67811PAD, FRONT DOOR SILENCER

main67811-0N020iXEAM10,YEAM15202210

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0R150iXEAM10,YEAM15202210

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iXEAM10,YEAM15202210

(J)

main90467-C0033iXEAM10,YEAM15202210

(L)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0R110iXEAM10,YEAM15202210

67837BSEAL, FRONT DOOR DUST PROOF

main67837-02150iXEAM10,YEAM15202210

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0R060iXEAM10,YEAM15202210

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0R060iXEAM10,YEAM15202210

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0R090iXEAM10,YEAM15202210-202401

sub67861-0R091

main67861-0R091iXEAM10,YEAM15202402

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150iXEAM10,YEAM15202210

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0R090iXEAM10,YEAM15202210-202401

sub67862-0R091

main67862-0R091iXEAM10,YEAM15202402

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-0R060iXEAM10,YEAM15202210

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0D090iXEAM10,YEAM15202210

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-0R070iXEAM10,YEAM15202210

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070iXEAM10,YEAM15202210

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iXEAM10,YEAM15202210

67867HRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iXEAM10,YEAM15202210

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-0D070iXEAM10,YEAM15202210

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67868-0D040iXEAM10,YEAM15202210

67868RRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iXEAM10,YEAM15202210

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iXEAM10,YEAM15202210

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0R160iXEAM10,YEAM15202210

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0R160iXEAM10,YEAM15202210

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0R070iXEAM10,YEAM15202210

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0R070iXEAM10,YEAM15202210

68141CRUN, FRONT DOOR GLASS, RH

main68141-0R100iXEAM10,YEAM15202210

68151DRUN, FRONT DOOR GLASS, LH

main68151-0R100iXEAM10,YEAM15202210

68610CHECK ASSY, FRONT DOOR

main68610-0R100iXEAM10,YEAM15202210

75921CTAPE, BLACK OUT, NO.1 RH

75922MTAPE, BLACK OUT, NO.1 LH

75965BSTRIPE, FRONT DOOR NO.4 RH

75966BSTRIPE, FRONT DOOR NO.4 LH

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

67869F4020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-F4020

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

9095001620

main90950-01620

9095001841

main90950-01841

9095001A02

main90950-01A02

90950C1008

main90950-C1008

90950C1011

main90950-C1011

50 parts on this diagram · 2 diagrams in section
