ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1ROOF PANEL(SOLAR PANEL) 0004 1ROOF RACK(PANORAMA ROOF) 0005 1ROOF RACK(SOLAR ROOF)

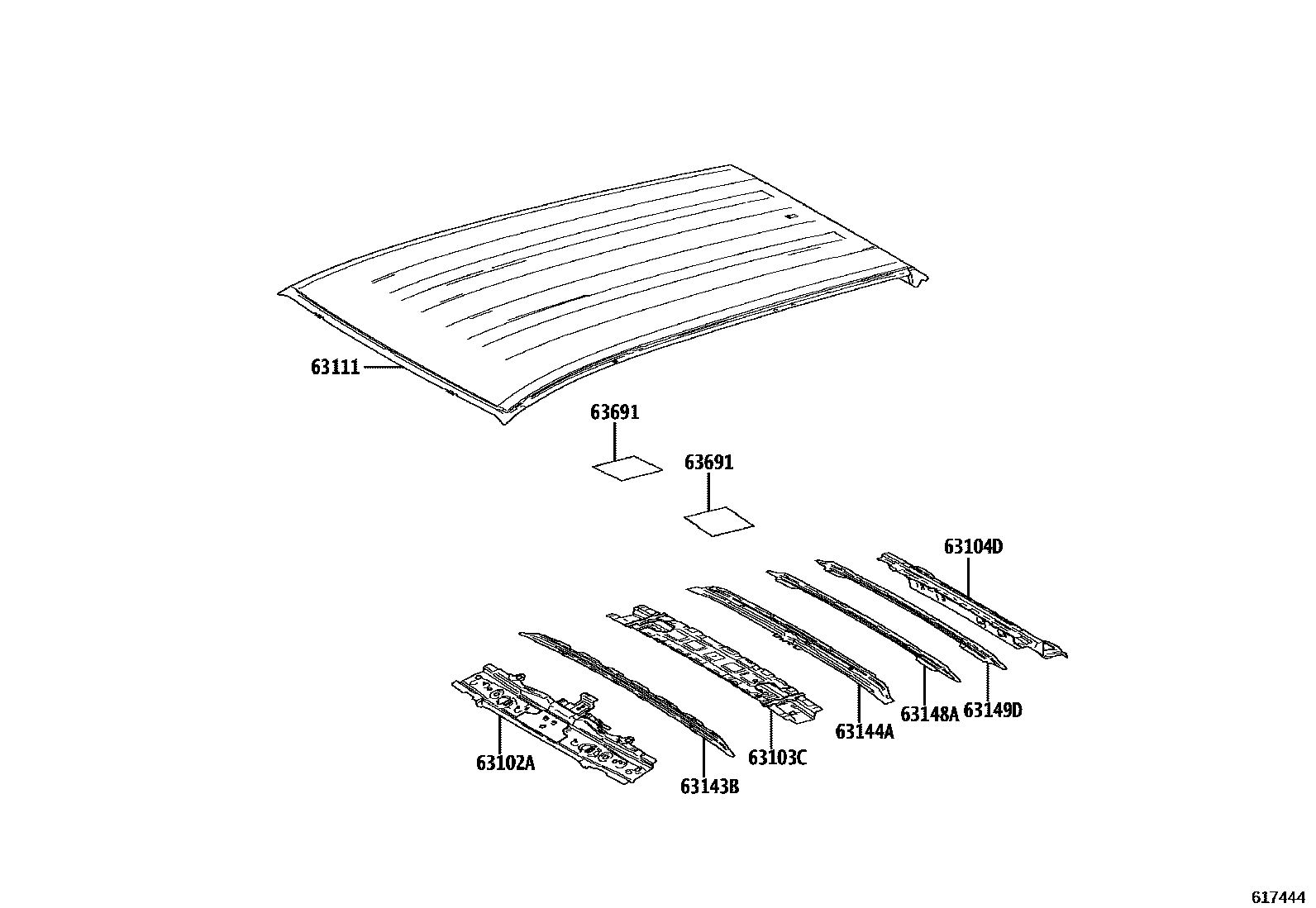

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0R220iXEAM10,YEAM15..H,M202210

main63102-0R240iYEAM15..H202210

MOON ROOF-WITH(SOLAR ROOF)

main63102-0R914iXEAM10..L202210

63103CREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0R080iXEAM10..L202210

main63103-0R090iYEAM15..H202210

MOON ROOF-WITH(SOLAR ROOF)

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-0R090iXEAM10,YEAM15202210

63111PANEL, ROOF

main63111-0R260iXEAM10..L202210

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0R140iXEAM10..L202210

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0R140iXEAM10..L202210

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0R130iXEAM10..L202210

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0R110iXEAM10..L202210

63691PAD, ROOF SILENCER, NO.21

main63691-0R020iXEAM10..L202210

9 parts on this diagram · 5 diagrams in section
