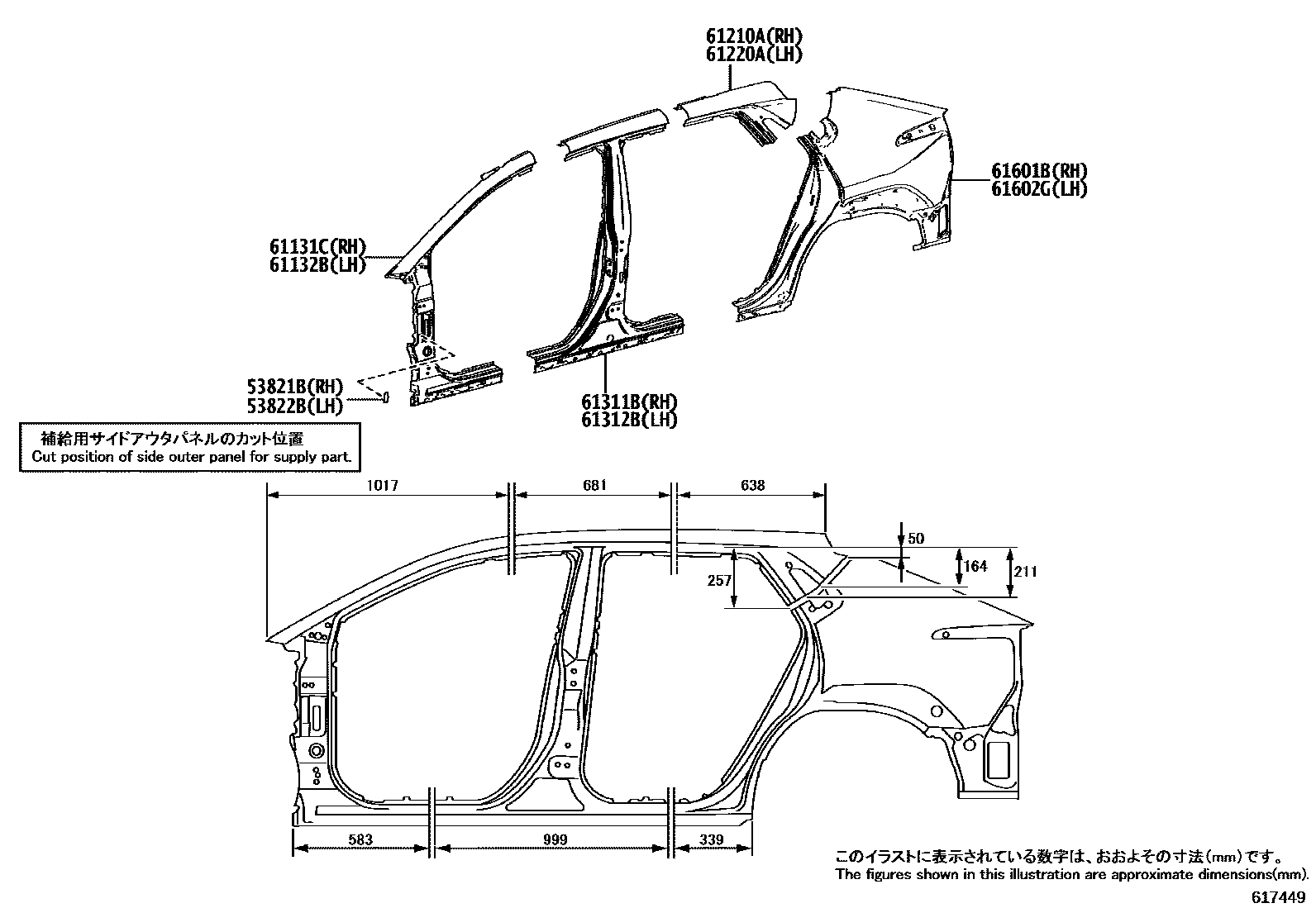

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0R100iXEAM10,YEAM15202210

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0R100iXEAM10,YEAM15202210

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0R150iXEAM10,YEAM15202210

61132BPILLAR, FRONT BODY, OUTER LH

main61132-0R160iXEAM10,YEAM15202210

61210ARAIL ASSY, ROOF SIDE, RH

main61210-0R060iXEAM10,YEAM15202210

61220ARAIL ASSY, ROOF SIDE, LH

main61220-0R060iXEAM10,YEAM15202210

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0R110iXEAM10,YEAM15202210

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0R120iXEAM10,YEAM15202210

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-0R240iXEAM10,YEAM15202210

61602GPANEL SUB-ASSY, QUARTER, LH

main61602-0R220iXEAM10,YEAM15202210

10 parts on this diagram · 3 diagrams in section
