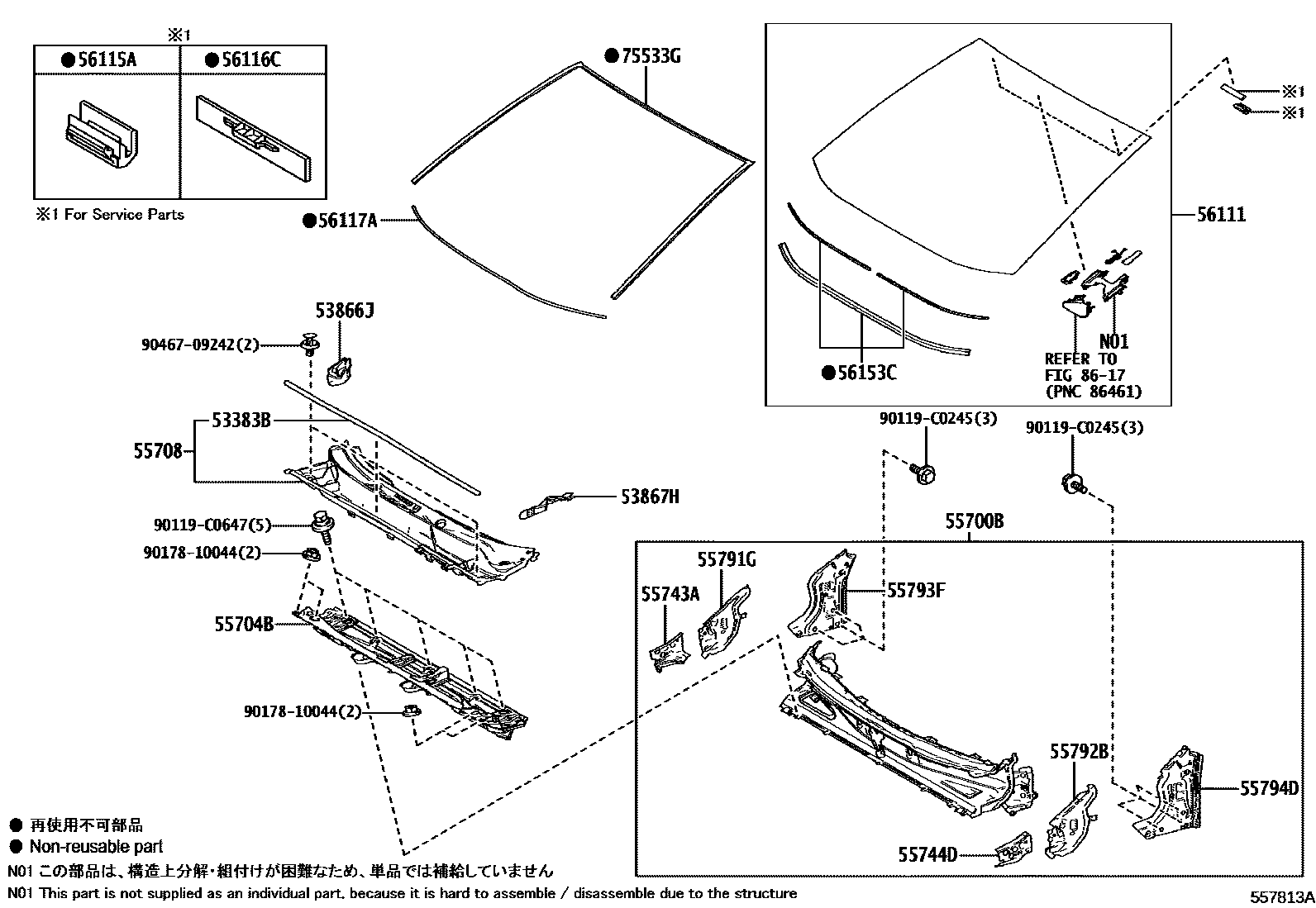

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0R090iXEAM10,YEAM15202210

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0R110iXEAM10,YEAM15202210

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0R110iXEAM10,YEAM15202210

55700BCOWL ASSY

main55700-0R100iXEAM10,YEAM15202210

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-0R070iXEAM10,YEAM15202210

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0R100iXEAM10,YEAM15202210

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-0R070iXEAM10,YEAM15202210

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-0R060iXEAM10,YEAM15202210

55791GCOVER, COWL REINFORCEMENT, UPPER RH

main55791-0R050iXEAM10,YEAM15202210

55792BCOVER, COWL REINFORCEMENT, UPPER LH

main55792-0R050iXEAM10,YEAM15202210

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-0R050iXEAM10,YEAM15202210

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-0R050iXEAM10,YEAM15202210

56111GLASS, WINDSHIELD

main56101-0R780iXEAM10..L202210-202312

main56101-0R790iXEAM10,YEAM15..H,M202210

main56101-0RB90iXEAM10..L202312

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iXEAM10,YEAM15¥130202210

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iXEAM10,YEAM15¥120202210

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iXEAM10,YEAM15¥870202210

L=1417

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-0R060iXEAM10,YEAM15202210

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-0R080iXEAM10,YEAM15202210

8617

90119C0245

main90119-C0245

90119C0647

main90119-C0647

9017810044

main90178-10044¥120

9046709242

main90467-09242¥120

23 parts on this diagram · 1 diagram in section
