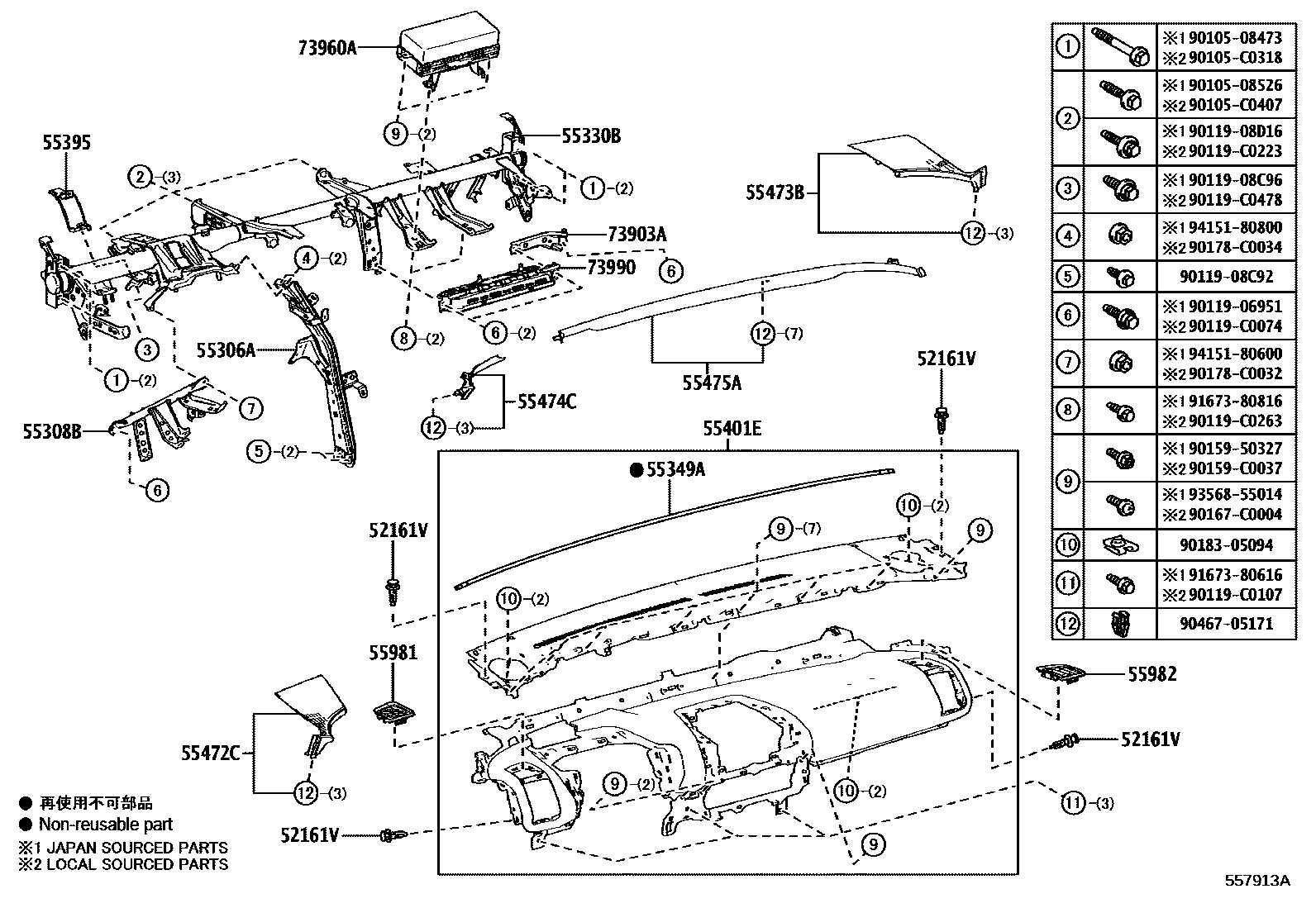

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040iXEAM10,YEAM15202210

(L)

main52161-16010iXEAM10,YEAM15¥120202210

(J)

sub52161-0K040¥120

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0R120iXEAM10,YEAM15202210

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-0R060iXEAM10,YEAM15202210

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0R190iXEAM10,YEAM15..L,M202210

main55330-0R210iYEAM15..H202210-202312

STEERING-STEER BY WIRE

55349ACUSHION, INSTRUMENT PANEL

main55349-0R070iXEAM10,YEAM15202210

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-0R060iXEAM10,YEAM15202210

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0R140-C0iXEAM10..L202210

BLACK,TRIM1#,2#

main55401-0R140-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,3#

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0R020-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,3#

main55472-0R020-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0R020-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,3#

main55473-0R020-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55474-0R100-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main55474-0R100-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

main55475-0R050-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main55475-0R050-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0R050iXEAM10,YEAM15202210

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-0R050iXEAM10,YEAM15202210

73903ABRACKET SUB-ASSY, AIRBAG INSTRUMENT PANEL, LOWER

main73903-0R030iXEAM10,YEAM15202210

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0R100iXEAM10,YEAM15202210

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-0R050-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,3#

main73990-0R050-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#

9010508473

main90105-08473¥100

9010508526

main90105-08526¥100

90105C0318

main90105-C0318

90105C0407

main90105-C0407

9011906951

main90119-06951¥80

9011908C92

main90119-08C92¥100

9011908C96

main90119-08C96¥80

9011908D16

main90119-08D16¥100

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90119C0478

main90119-C0478

9015950327

main90159-50327¥70

90159C0037

main90159-C0037

90167C0004

main90167-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

41 parts on this diagram · 5 diagrams in section
