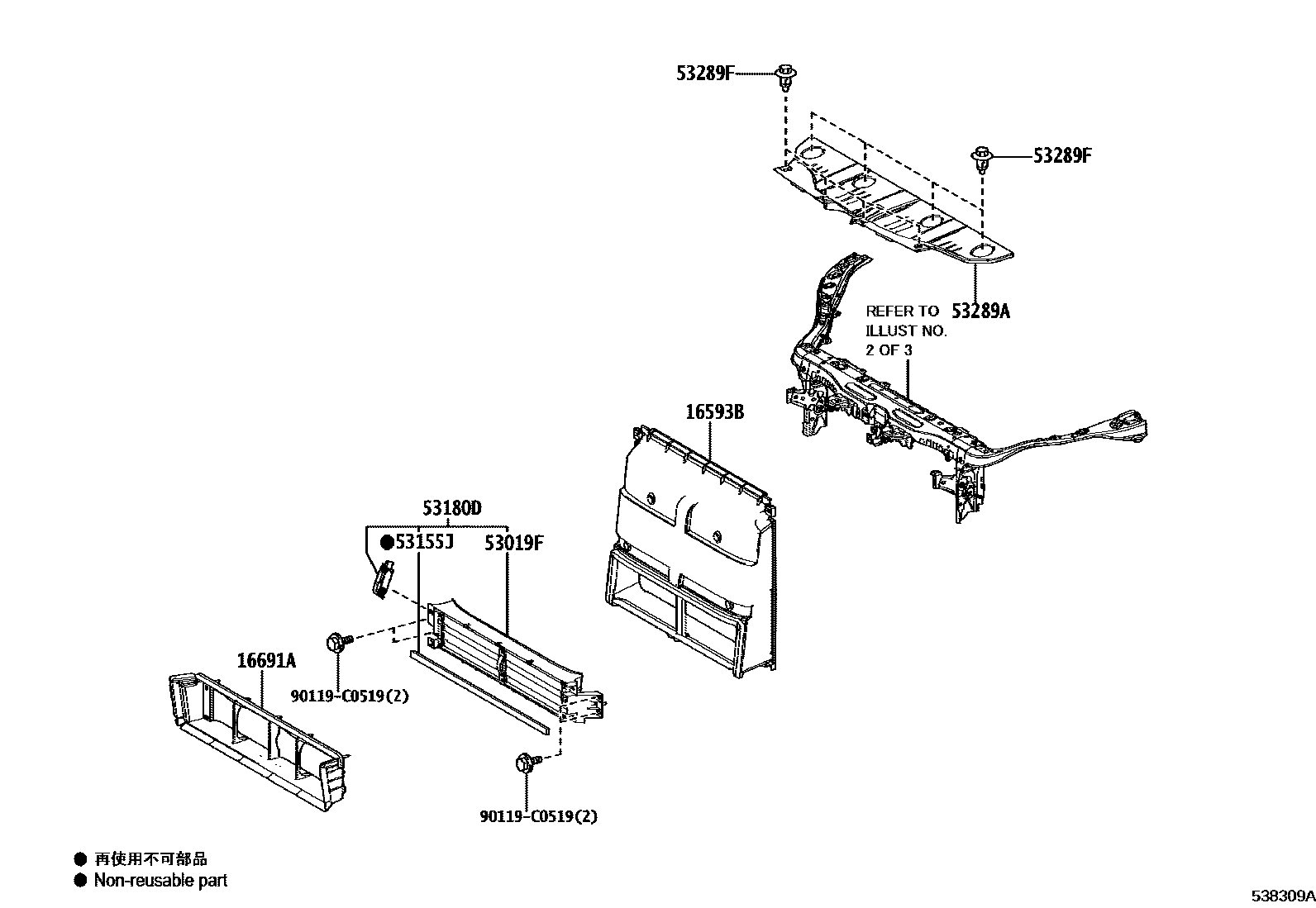

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0Z040iEM..XEAM10,YEAM15202210

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-0Z020iEM..XEAM10,YEAM15202210

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-0R100iXEAM10,YEAM15202210

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-0R140iXEAM10,YEAM15202210

53180DSHUTTER ASSY, RADIATOR

main53180-0R120iXEAM10,YEAM15202210-202302

sub53180-0R121

main53180-0R121iXEAM10,YEAM15202303

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0R060iXEAM10,YEAM15202210

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-C0051iXEAM10,YEAM15202210

90119C0519

main90119-C0519

8 parts on this diagram · 3 diagrams in section
