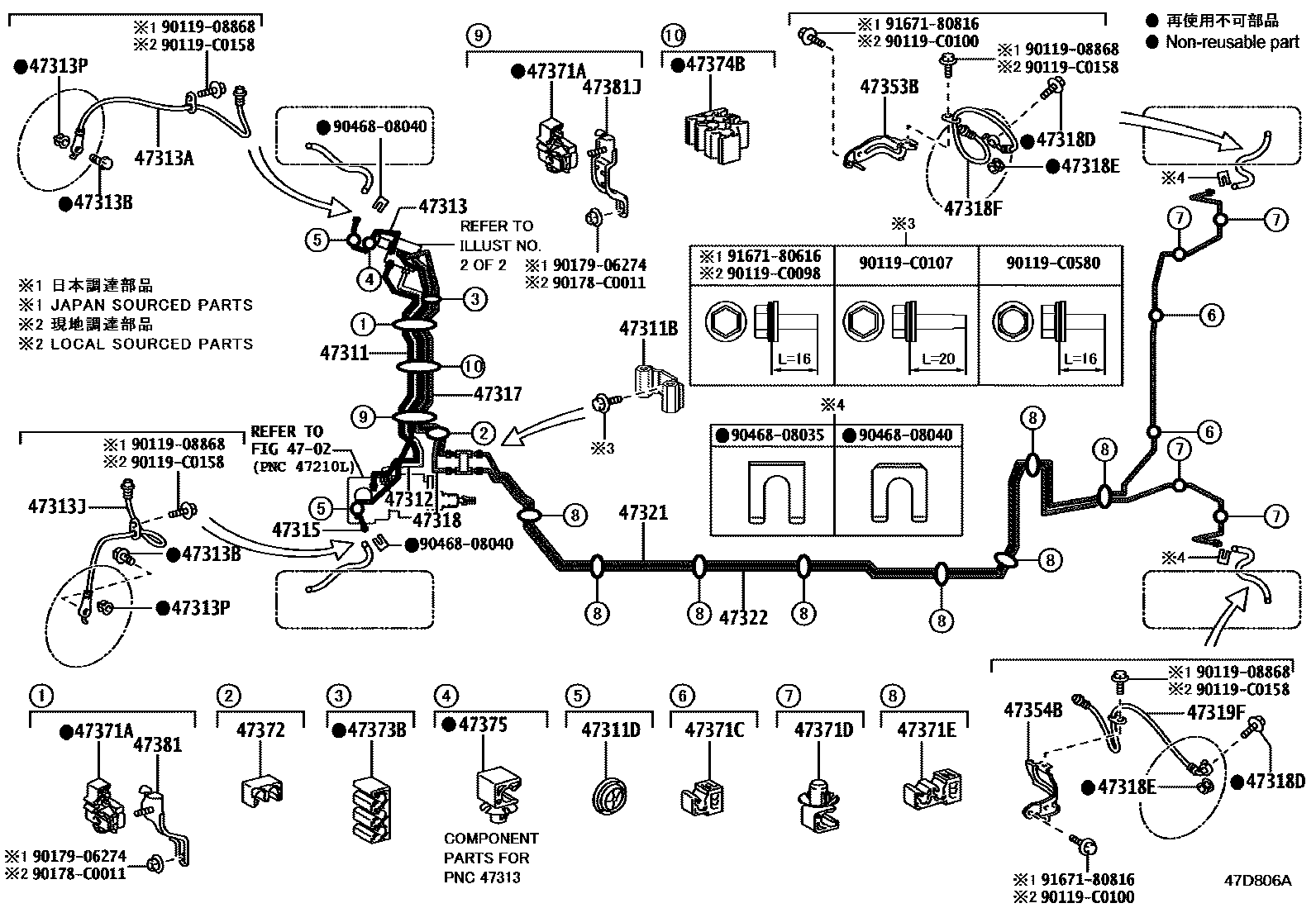

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0R170iXEAM10,YEAM15202210

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iXEAM10,YEAM15202210

(J)

main90412-C0004iXEAM10,YEAM15202210

(L)

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iXEAM10,YEAM15202210

47312TUBE, FRONT BRAKE, NO.2

main47312-0R160iXEAM10,YEAM15202210

47313TUBE, FRONT BRAKE, NO.3

main47313-0R200iXEAM10,YEAM15202210

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2088iXEAM10,YEAM15202210

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iXEAM10,YEAM15202210

(J)

main90401-C0001×2iXEAM10,YEAM15202210

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2089iXEAM10,YEAM15202210

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iXEAM10,YEAM15202210

47315TUBE, FRONT BRAKE, NO.5

main47315-0R110iXEAM10,YEAM15202210

47317TUBE, FRONT BRAKE, NO.7

main47317-0R200iXEAM10,YEAM15202210

47318TUBE, FRONT BRAKE, NO.8

main47318-0R200iXEAM10,YEAM15202210

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iXEAM10,YEAM15202210

(J)

main90401-C0001×2iXEAM10,YEAM15202210

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iXEAM10,YEAM15202210

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2120iXEAM10,YEAM15202210

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2121iXEAM10,YEAM15202210

47321TUBE, REAR BRAKE, NO.1

main47321-0R150iXEAM10,YEAM15202210

47322TUBE, REAR BRAKE, NO.2

main47322-0R150iXEAM10,YEAM15202210

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-F4030iXEAM10,YEAM15202210

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-F4030iXEAM10,YEAM15202210

47371ACLAMP, BRAKE TUBE, NO.1

main47371-0E120×2iXEAM10,YEAM15202210

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01C82×2iXEAM10,YEAM15202210

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D17×4iXEAM10,YEAM15202210

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01D60×8iXEAM10,YEAM15202210

47372CLAMP, BRAKE TUBE, NO.2

main90464-00903iXEAM10,YEAM15202210

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D92iXEAM10,YEAM15202210

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E40iXEAM10,YEAM15202210

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D17iXEAM10,YEAM15202210

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-0R100iXEAM10,YEAM15202210

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main47381-0R140iXEAM10,YEAM15202210

9011908868

main90119-08868

90119C0098

main90119-C0098

90119C0100

main90119-C0100

90119C0107

main90119-C0107

90119C0158

main90119-C0158

90119C0580

main90119-C0580

90178C0011

main90178-C0011

9017906274

main90179-06274

9046808035

main90468-08035

9046808040

main90468-08040

9167180616

main91671-80616

9167180816

main91671-80816

43 parts on this diagram · 2 diagrams in section
