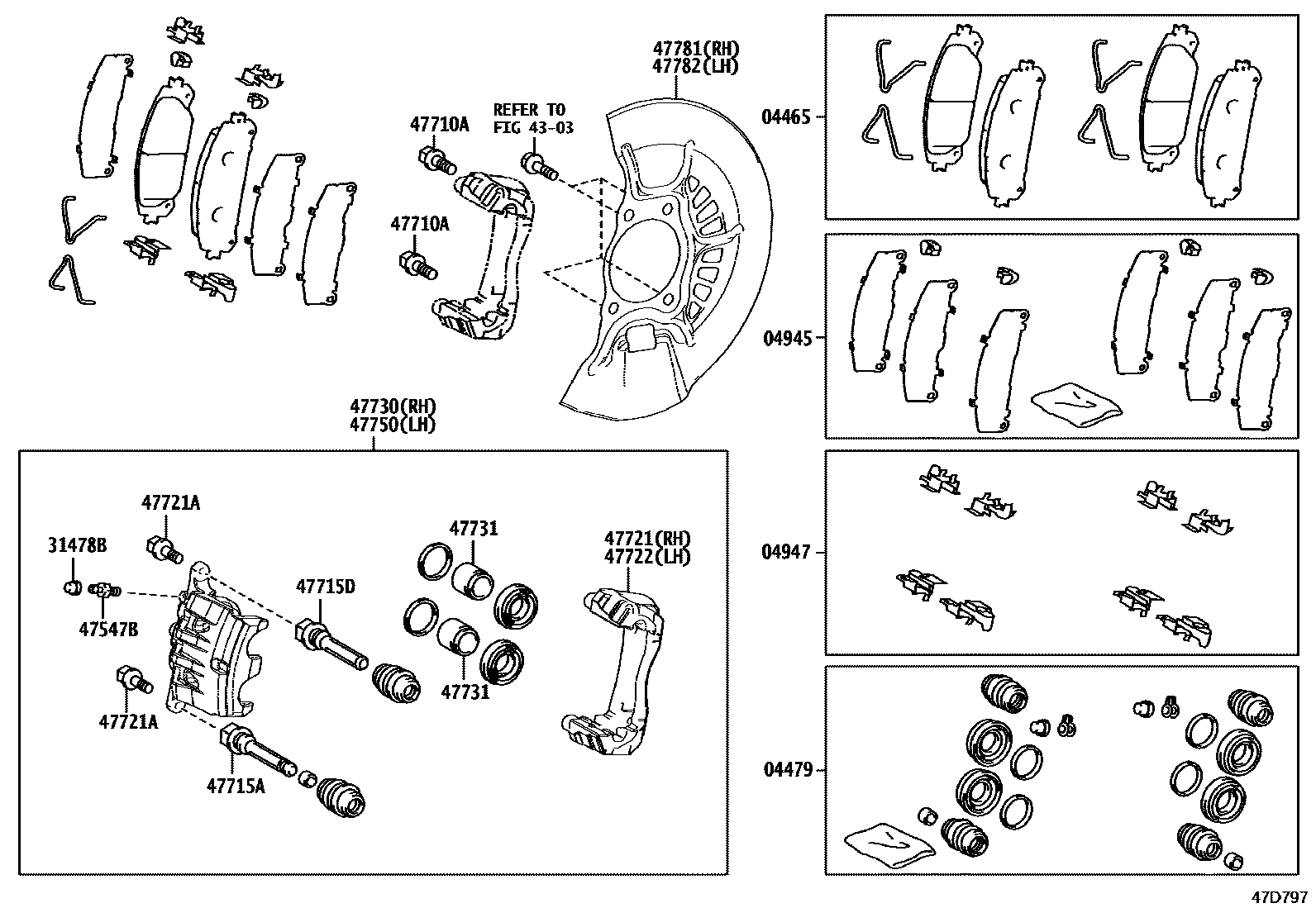

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0R040iXEAM10,YEAM15202210

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0R030iXEAM10,YEAM15202210

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0R060iXEAM10,YEAM15202210

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E020iXEAM10,YEAM15202210

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010×2iXEAM10,YEAM15202210

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iXEAM10,YEAM15202210

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0021×4iXEAM10,YEAM15202210

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-0D210×2iXEAM10,YEAM15202210

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-0R020×2iXEAM10,YEAM15202210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0R050iXEAM10,YEAM15202210

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608×4iXEAM10,YEAM15202210

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0R050iXEAM10,YEAM15202210

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0R050iXEAM10,YEAM15202210

47731PISTON, FRONT DISC BRAKE

main47731-0R050×4iXEAM10,YEAM15202210

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0R050iXEAM10,YEAM15202210

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-07010iXEAM10,YEAM15202210

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-07010iXEAM10,YEAM15202210

18 parts on this diagram · 1 diagram in section
