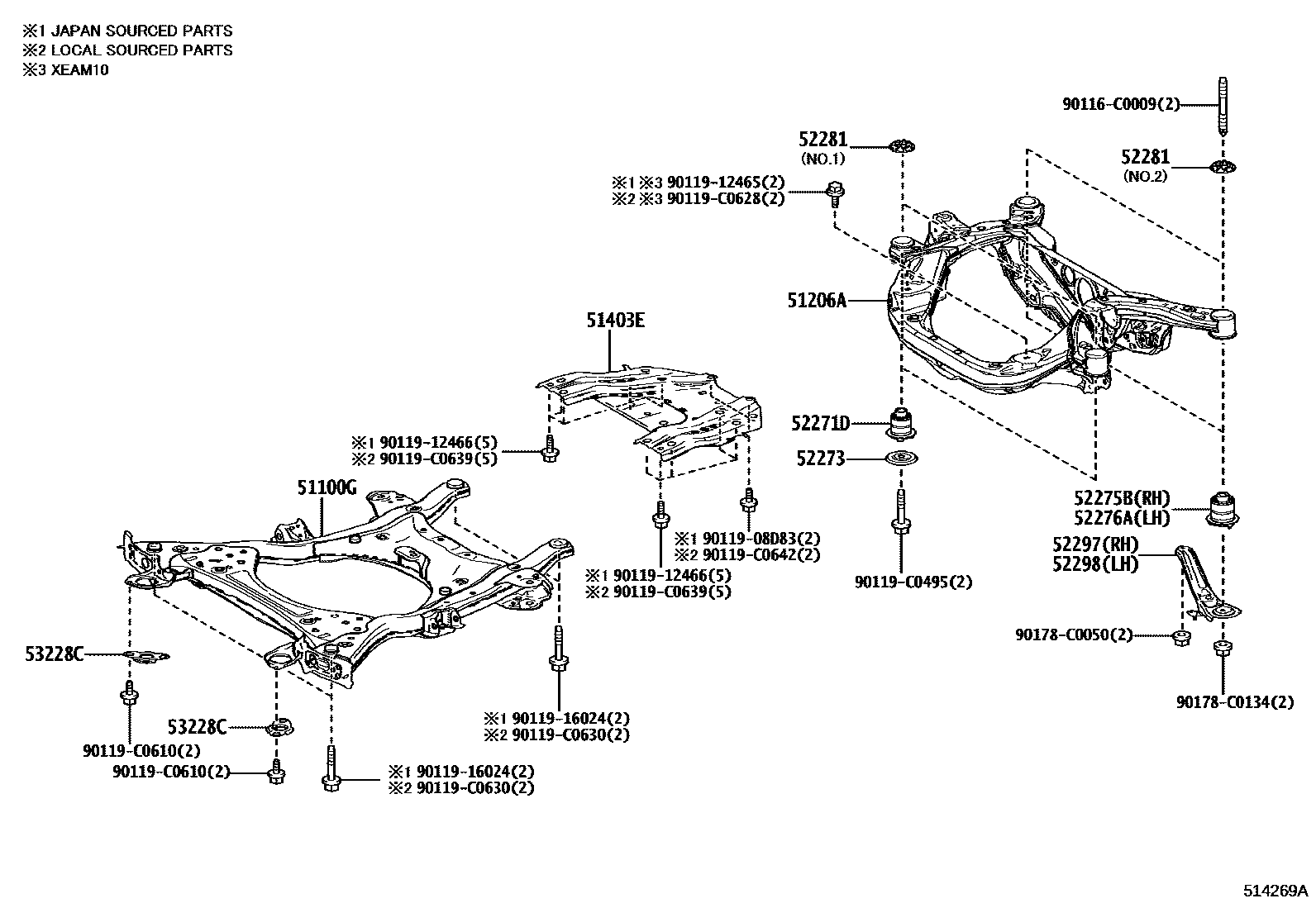

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1MOTOR UNDER COVER 0003 1FLOOR UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0R041iXEAM10,YEAM15202211-202411

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R140iXEAM10,YEAM15202211-202411

51403EBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-0R030iXEAM10,YEAM15202211-202411

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-0R040iXEAM10,YEAM15202211-202411

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06080iXEAM10,YEAM15202211-202411

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0R040iXEAM10,YEAM15202211-202411

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0R040iXEAM10,YEAM15202211-202411

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-0R030iXEAM10,YEAM15202211-202411

NO.1:REFER ILLUST.

main52281-0R060iXEAM10,YEAM15202211-202411

NO.2:REFER ILLUST.

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0R090iXEAM10,YEAM15202211-202411

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-0R040iXEAM10,YEAM15202211-202411

53228CBRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-0R020iXEAM10,YEAM15202211-202411

90116C0009

main90116-C0009

9011908D83

main90119-08D83¥120

9011912465

main90119-12465¥240

9011912466

main90119-12466¥240

9011916024

main90119-16024¥490

90119C0495

main90119-C0495

90119C0610

main90119-C0610

90119C0628

main90119-C0628

90119C0630

main90119-C0630

90119C0639

main90119-C0639

90119C0642

main90119-C0642

90178C0050

main90178-C0050

90178C0134

main90178-C0134

24 parts on this diagram · 3 diagrams in section
