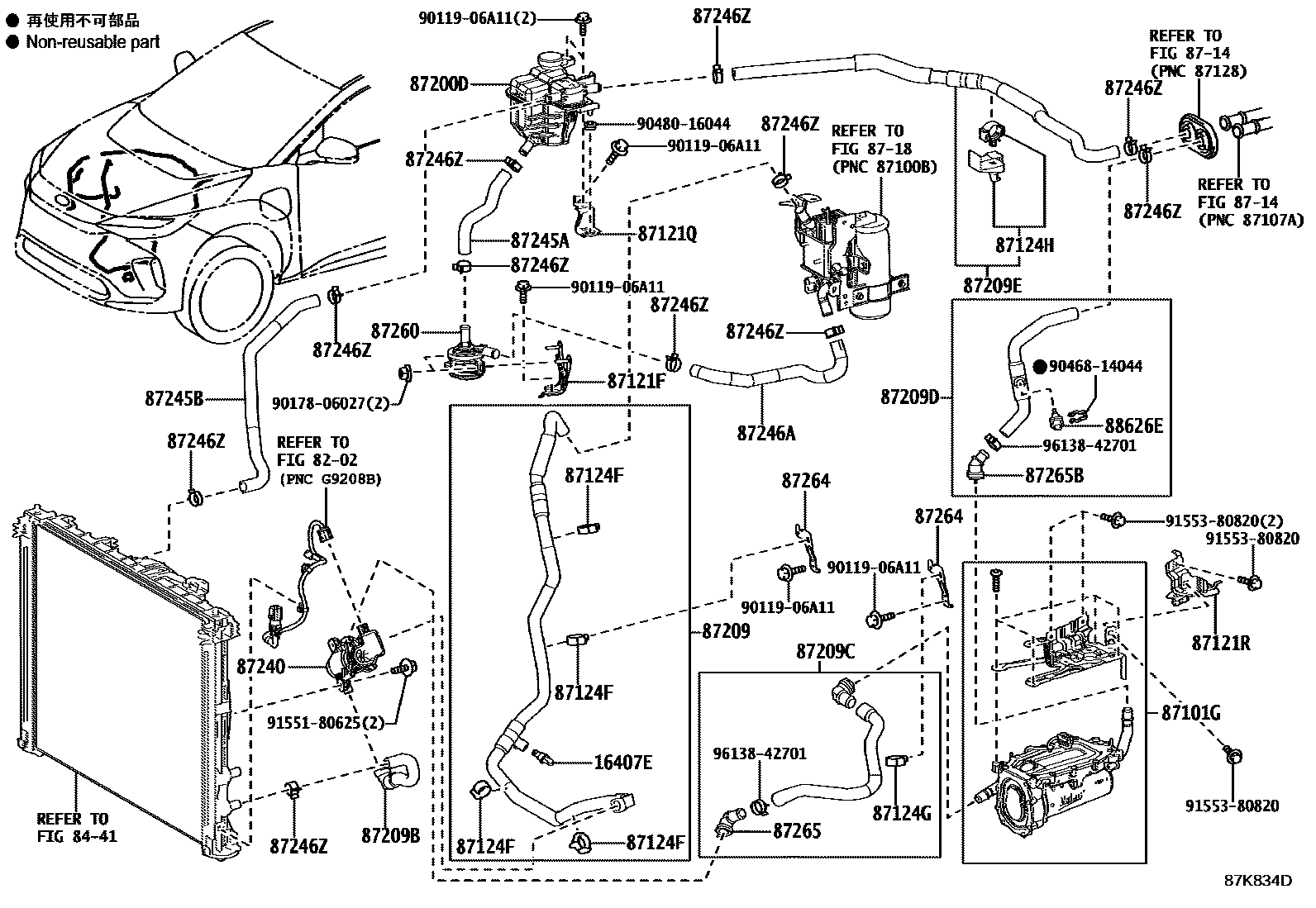

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16407ECOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iEM..XEAM10,YEAM15202412

8202

8441

87101GHEATER SUB-ASSY, ELECTRIC

main87101-42020iXEAM10,YEAM15202203-202210

main87101-42021iXEAM10,YEAM15202412

87121FBRACKET, HEATER

main87121-42120iXEAM10,YEAM15202412

87121QBRACKET, HEATER NO.2

main87121-42130iXEAM10,YEAM15202203-202411

87121RBRACKET, HEATER NO.3

main87121-42140iXEAM10,YEAM15202412

87124CLAMP, HEATER

main16581-77030iXEAM10,YEAM15..RHD202412

87124FCLAMP, HEATER HOSE, NO.1

main16581-77030×4iXEAM10,YEAM15202203-202311

87124GCLAMP, HEATER HOSE, NO.2

main16581-77030iXEAM10,YEAM15202412

87124HCLAMP, HEATER HOSE, NO.3

main16581-10060iXEAM10,YEAM15202412

8714

8718

87200DACCESSORY ASSY, HEATER

main87200-42030iXEAM10,YEAM15202412

87209HOSE SUB-ASSY, WATER

main87209-42360iXEAM10,YEAM15202412

87209BHOSE SUB-ASSY, WATER, B

main87209-42370iXEAM10,YEAM15202412

87209CHOSE SUB-ASSY, WATER, C

main87209-42380iXEAM10,YEAM15202412

87209DHOSE SUB-ASSY, WATER, D

main87209-42390iXEAM10,YEAM15202203-202311

main87209-42510iXEAM10,YEAM15202412

87209EHOSE SUB-ASSY, WATER, E

main87209-42400iXEAM10,YEAM15..LHD202412

main87209-42410iXEAM10,YEAM15..RHD202412

87240VALVE ASSY, HEATER WATER

main87240-42020iXEAM10,YEAM15202412

87245AHOSE, HEATER WATER, INLET A

main87245-42730iXEAM10,YEAM15202412

87245BHOSE, HEATER WATER, INLET B

main87245-42750iYEAM15..RHD..M202203-202303

87246AHOSE, HEATER WATER, OUTLET A

main87245-42740iXEAM10,YEAM15202412

87246ZCLIP

main96138-42501×15iXEAM10,YEAM15202412

87260PUMP ASSY, HEATER

main87260-42050iXEAM10,YEAM15202412

87264BRACKET, HEATER WATER HOSE

main87263-42010×2iXEAM10,YEAM15202203-202411

87265CONNECTOR, HEATER WATER HOSE

main87265-50010iXEAM10,YEAM15202412

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87265-42020iXEAM10,YEAM15202203-202311

main87265-60220iXEAM10,YEAM15202412

88626ESENSOR, WATER TEMPERATURE

main89422-33040iXEAM10,YEAM15202412

9011906A11

main90119-06A11

9017806027

main90178-06027

9046814044

main90468-14044

9048016044

main90480-16044

9155180625

main91551-80625

9155380820

main91553-80820

9613842701

main96138-42701

36 parts on this diagram · 6 diagrams in section
