E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

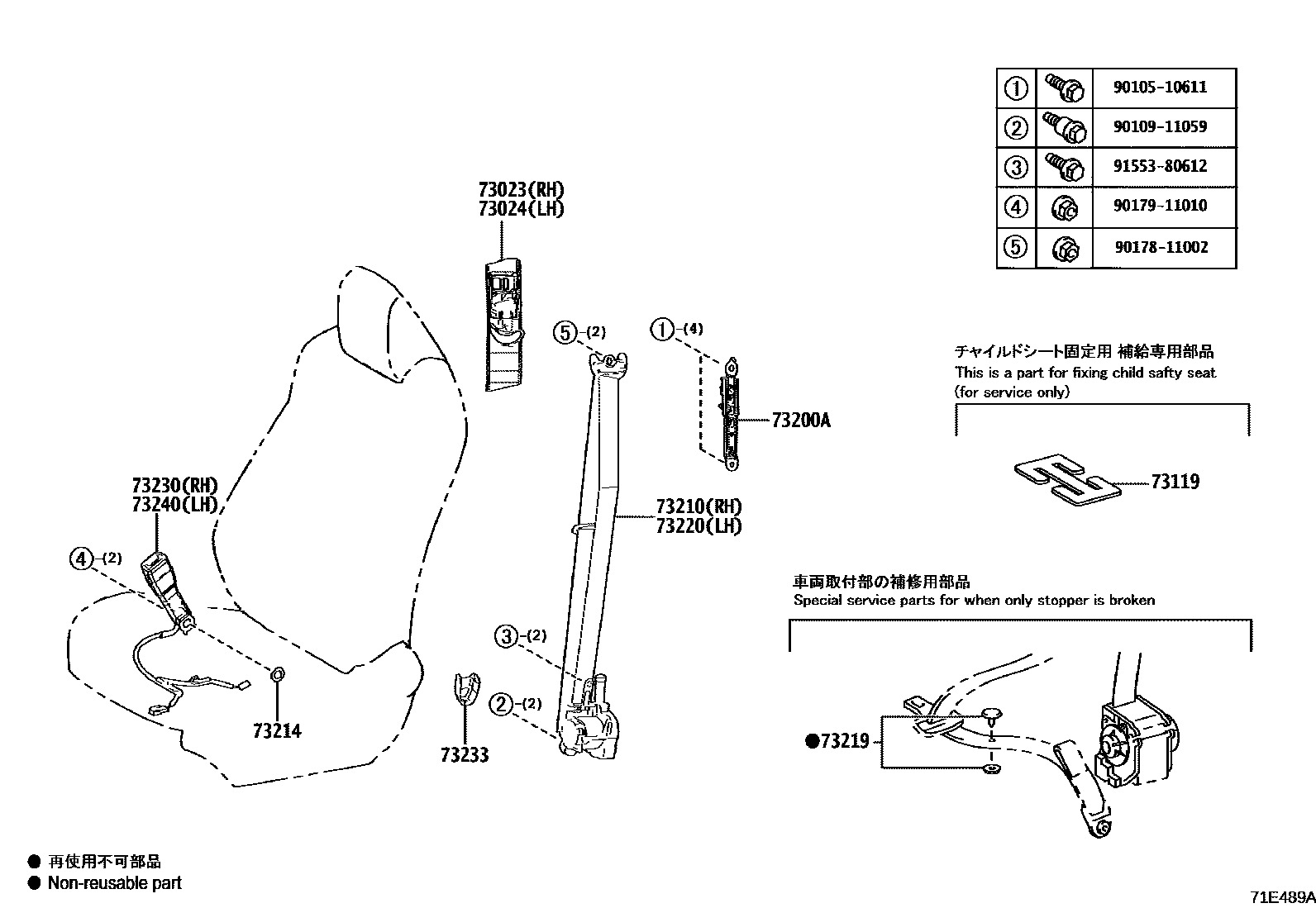

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-12030-C0i202412
BLACK,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-12020-C0i202412
BLACK,TRIM1#,2#
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i202412
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070×2i202412
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-42480-C0i202203-202209
BLACK,TRIM1#,2#
main73210-42481i202210-202303
main73210-42481-C0i202210-202411
BLACK,TRIM1#,2#
main73210-52A80-C0i202203-202209
BLACK,TRIM1#,2#
main73210-52A81-C0i202412
BLACK,TRIM1#,2#
73214PLATE, FRONT SEAT BELT ANCHOR
main73214-75010×2i202412
73219STOPPER, TONGUE PLATE
main73219-33010i202203-202411
BLACK
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-42380-C0i202203-202209
BLACK,TRIM1#,2#
main73220-42381-C0i202412
BLACK,TRIM1#,2#
main73220-52B10-C0i202203-202209
BLACK,TRIM1#,2#
main73220-52B11i202210-202303
main73220-52B11-C0i202412
BLACK,TRIM1#,2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33870-C0i202203-202411
BLACK,TRIM2#
main73230-33880-C0i202412
BLACK,TRIM2#
main73230-33A90-C0i202203-202411
BLACK,TRIM1#,2#
main73230-42370-C0i202203-202411
BLACK,TRIM1#,2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C1×2i202203-202411
BLACK,TRIM1#,2#
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33870-C0i202203-202411
BLACK,TRIM1#,2#
main73230-33880-C0i202412
BLACK,TRIM2#
main73230-33A90-C0i202412
BLACK,TRIM1#,2#
main73230-42370-C0i202412
BLACK,TRIM1#,2#
9010510611
main90105-10611
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

16 parts on this diagram · 2 diagrams in section
