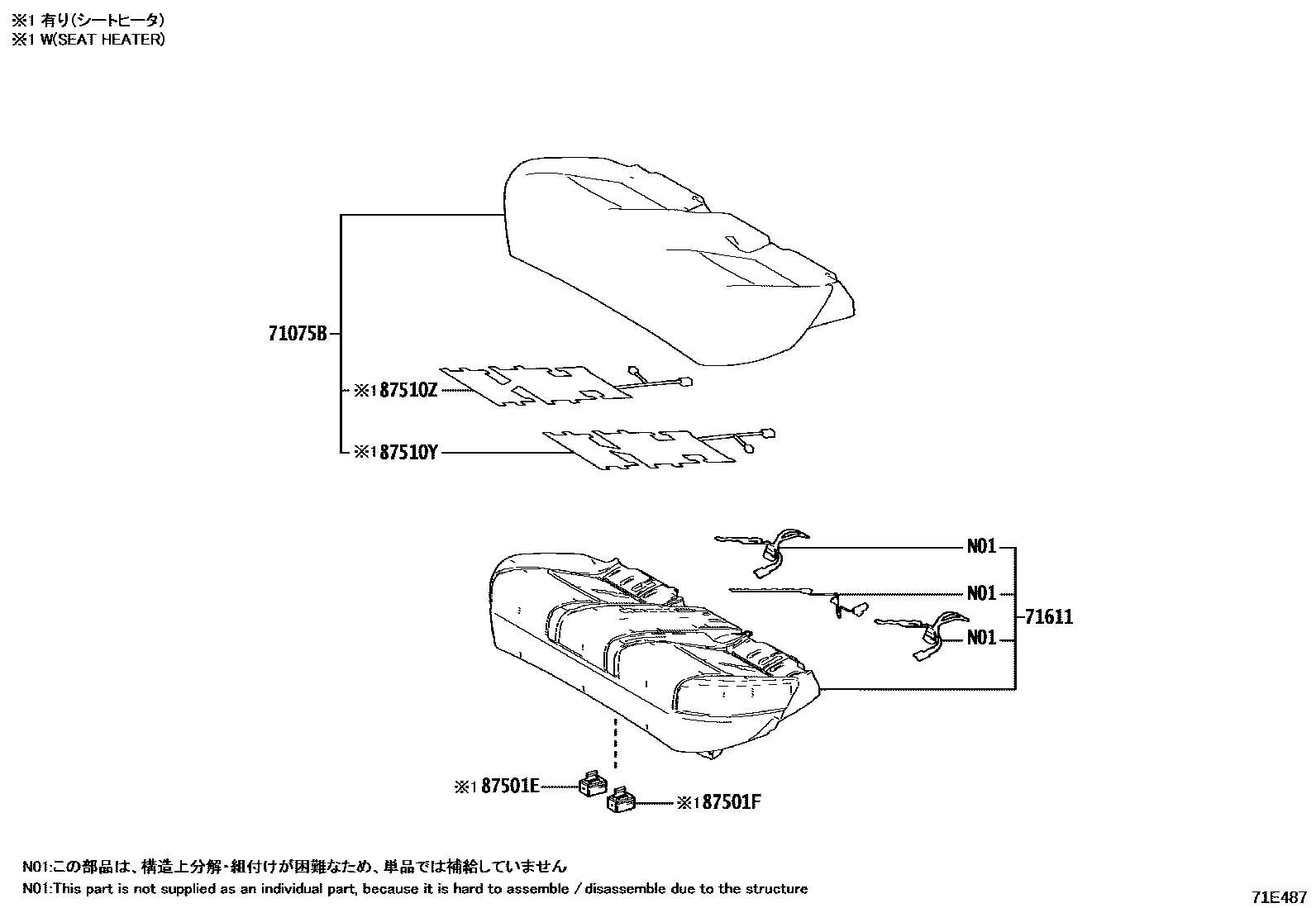

REAR SEAT & SEAT TRACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
LT.GRAY,TRIM1#
BLACK,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),LT.GRAY,TRIM1#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
MOON ROOF-WITH(SOLAR ROOF),LT.GRAY,TRIM1#
MOON ROOF-WITH(SOLAR ROOF),BLACK,TRIM2#
MOON ROOF-WITH(SOLAR ROOF)&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT),LT.GRAY,TRIM1#
MOON ROOF-WITH(SOLAR ROOF)&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT),BLACK,TRIM2#
71611PAD, REAR SEAT CUSHION
MOON ROOF-WITH(SOLAR ROOF)&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
87501ECONTROL SUB-ASSY, SEAT HEATER, RH
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
87501FCONTROL SUB-ASSY, SEAT HEATER, LH
MOON ROOF-WITH(SOLAR ROOF)&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
6 parts on this diagram · 3 diagrams in section
