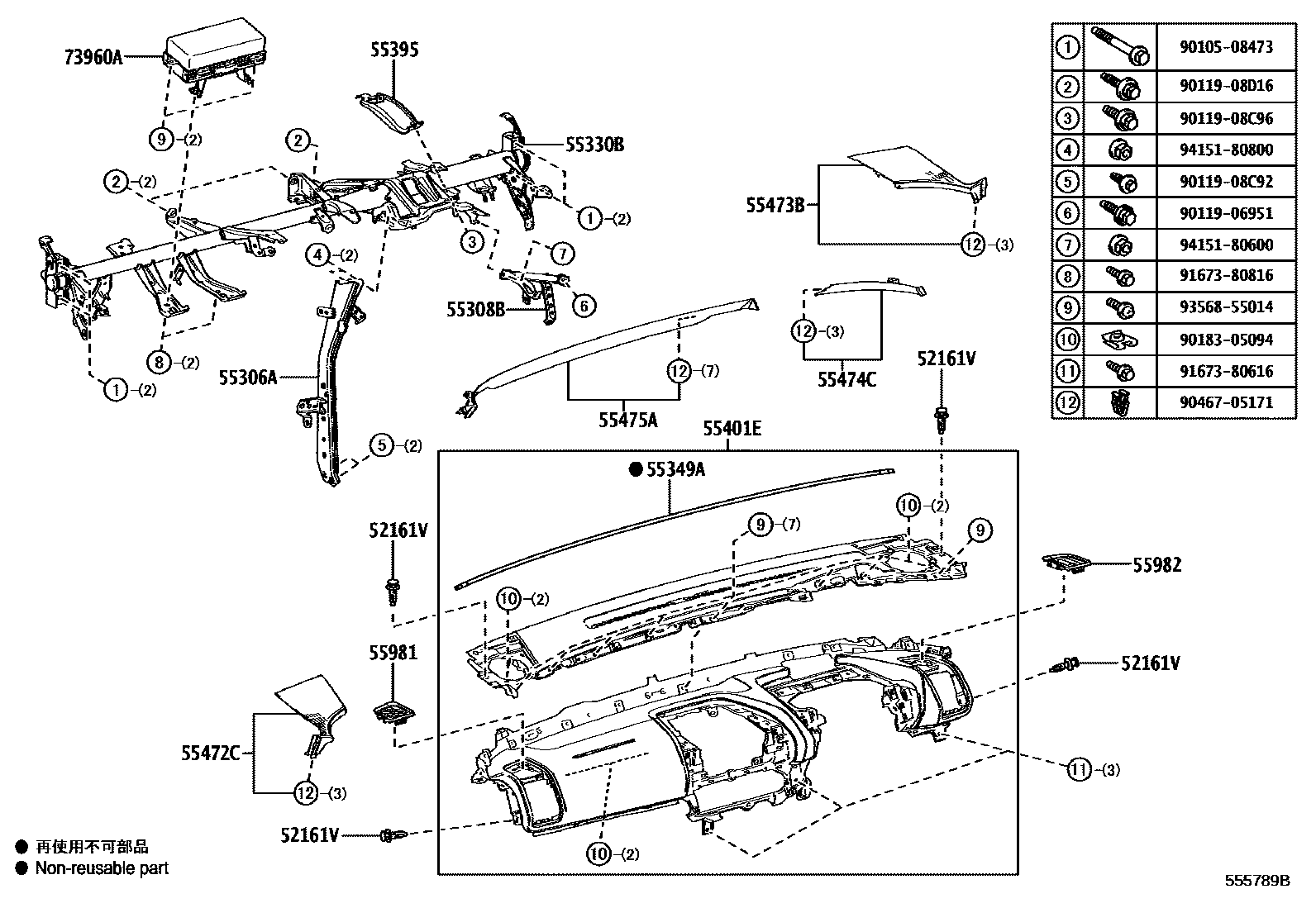

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iXEAM10,YEAM15202203-202411

sub52161-0K040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42170iXEAM10,YEAM15..LHD202203-202411

main55306-42190iXEAM10,YEAM15..RHD202203-202411

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-42090iXEAM10,YEAM15..LHD202203-202411

main55308-42100iXEAM10,YEAM15..RHD202203-202411

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-42390iXEAM10,YEAM15..LHD202203-202411

main55330-42410iXEAM10,YEAM15..RHD202203-202411

55349ACUSHION, INSTRUMENT PANEL

main55349-42060iXEAM10,YEAM15202203-202411

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-42040iXEAM10,YEAM15..LHD202203-202411

main55395-42050iXEAM10,YEAM15..RHD202203-202411

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-42160-C0iXEAM10,YEAM15..LHD..(M,P)..EUR202203-202411

BLACK,TRIM1#,2#

main55401-42160-C0iXEAM10,YEAM15..LHD..(M,P)..EUR202203-202411

BLACK,TRIM2#

main55401-42170-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

main55401-42170-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM1#,2#

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-42010-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main55472-42010-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-42010-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main55473-42010-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55474-42130-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM1#,2#

main55474-42130-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM2#

main55474-42140-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM1#,2#

main55474-42140-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

main55475-42040-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM2#

main55475-42040-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM1#,2#

main55475-42050-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM1#,2#

main55475-42050-C0iXEAM10,YEAM15..RHD..(M,P)202203-202411

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-42060iXEAM10,YEAM15202203-202411

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-42060iXEAM10,YEAM15202203-202411

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-42120iXEAM10,YEAM15202203-202411

9010508473

main90105-08473

9011906951

main90119-06951

9011908C92

main90119-08C92

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

26 parts on this diagram · 8 diagrams in section
