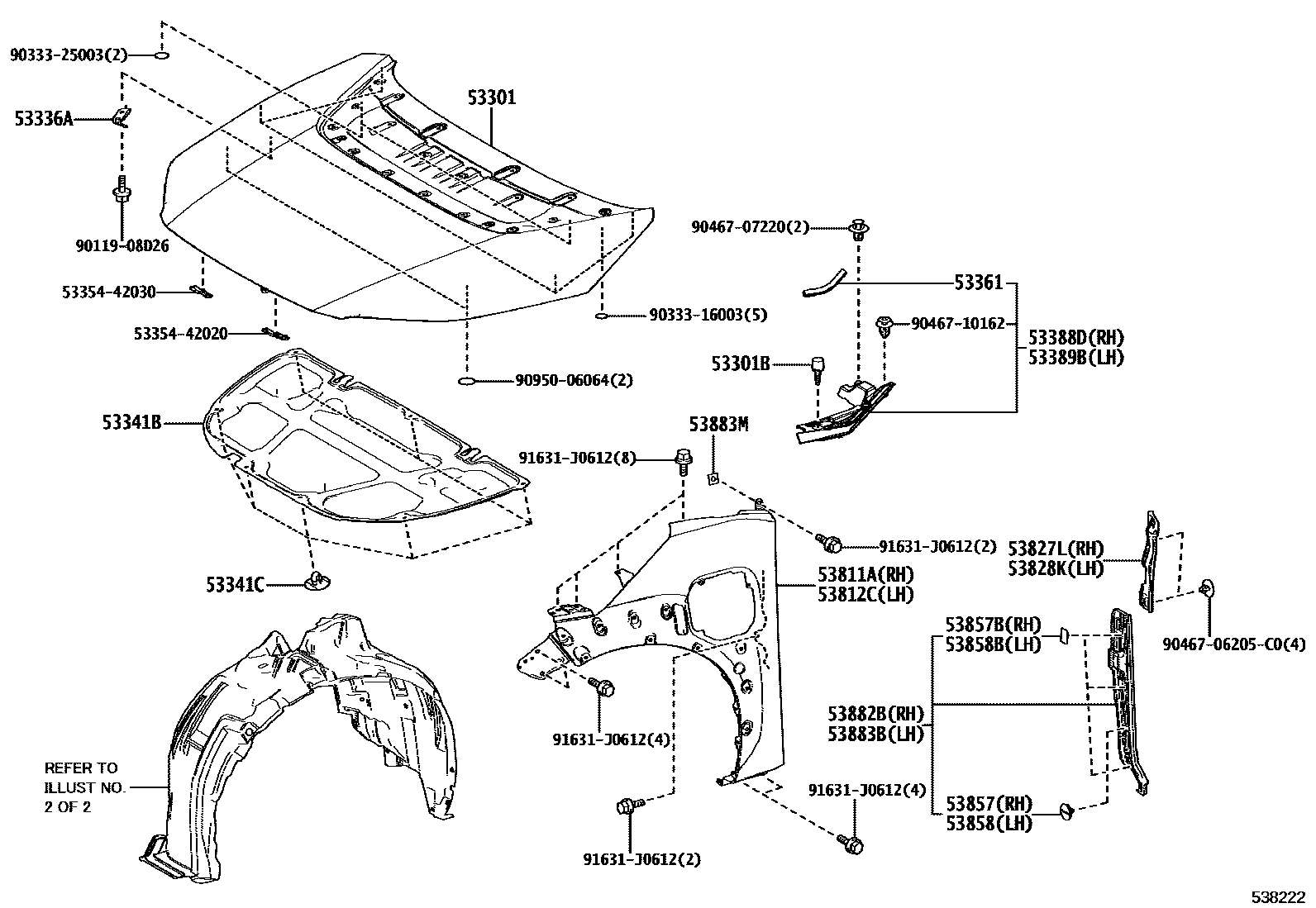

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-42160iXEAM10,YEAM15202412

53301BCUSHION, HOOD BUMPER

main53384-22070×2iXEAM10,YEAM15202412

53336ABRACKET, HOOD STAY

main53336-42020iXEAM10,YEAM15202412

53341BINSULATOR, HOOD

main53341-42110iXEAM10,YEAM15202412

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×7iXEAM10,YEAM15202412

53361WEATHERSTRIP, HOOD

main53361-42030×2iXEAM10,YEAM15202412

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42050iXEAM10,YEAM15202412

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42070iXEAM10,YEAM15202412

53811APANEL, FRONT FENDER, RH

main53811-42340iXEAM10,YEAM15202412

53812CPANEL, FRONT FENDER, LH

main53812-42370iXEAM10,YEAM15202412

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0R100iXEAM10,YEAM15202412

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0R100iXEAM10,YEAM15202412

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06010iXEAM10,YEAM15202412

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×3iXEAM10,YEAM15202203-202411

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06010iXEAM10,YEAM15202412

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×6iXEAM10,YEAM15202412

53882BSEAL, FRONT FENDER, RH

main53882-0R080iXEAM10,YEAM15202412

53883BSEAL, FRONT FENDER, LH

main53883-0R030iXEAM10,YEAM15202203-202411

53883MSEAL, FRONT FENDER

main53882-33060×2iXEAM10,YEAM15202412

5335442020GUSSET, HOOD REINFORCEMENT, LH

main53354-42020

5335442030GUSSET, HOOD REINFORCEMENT, LH

main53354-42030

9011908D26

main90119-08D26

9033316003

main90333-16003

9033325003

main90333-25003

9046706205C0

main90467-06205C0

9046707220

main90467-07220

9046710162

main90467-10162

9095006064

main90950-06064

91631J0612

main91631-J0612

29 parts on this diagram · 2 diagrams in section
