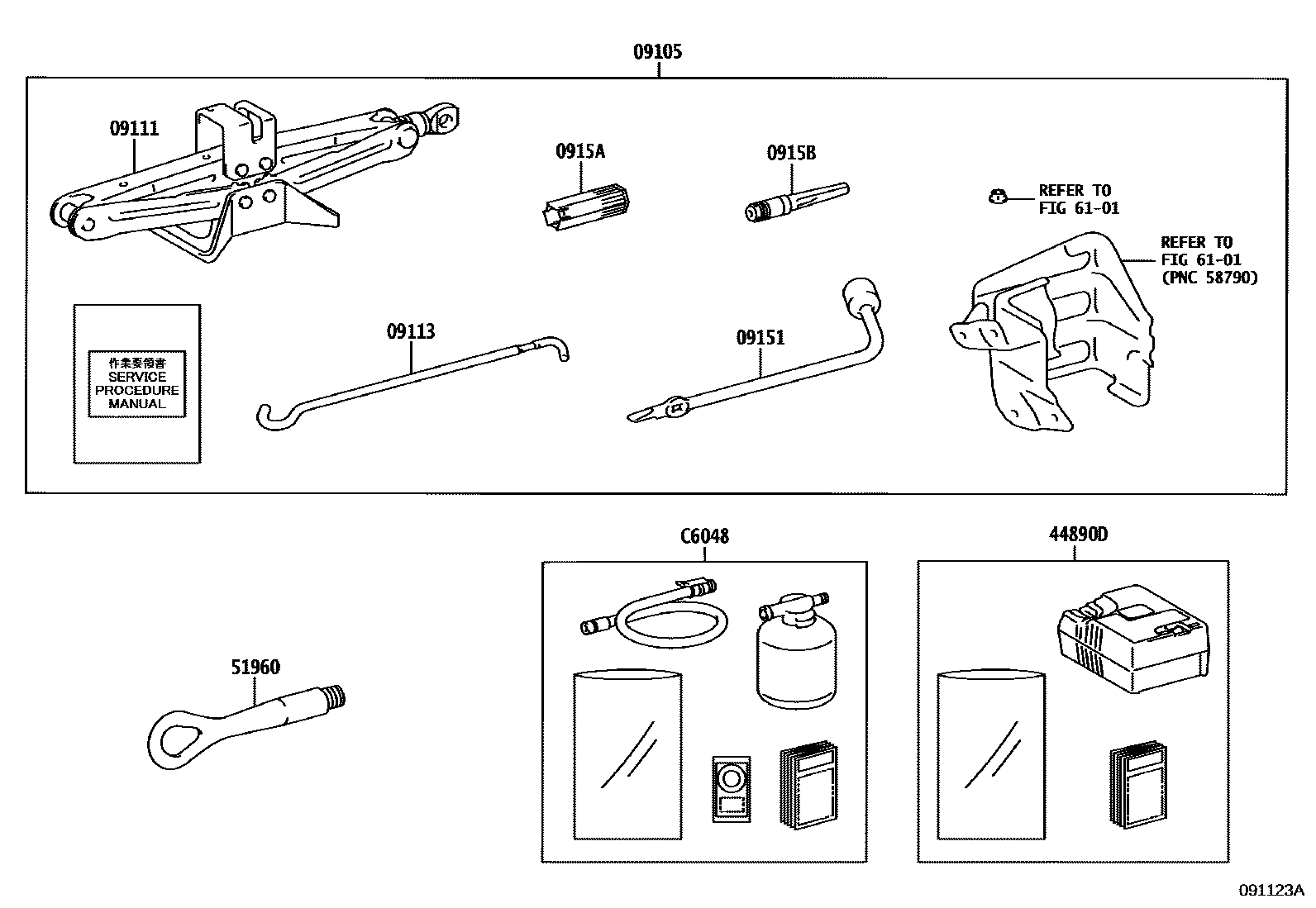

STANDARD TOOL

09105BOX SET, JACK

main09105-42010iXEAM10,YEAM15..EUR202306-202411

main09105-42020iXEAM10,YEAM15202203-202306

sub09105-42010

main09105-42031iXEAM10,YEAM15..ARL202311-202411

09111JACK SUB-ASSY

main09110-42080iXEAM10,YEAM15..ARL202311-202411

main09111-42070iXEAM10,YEAM15..EUR,TAIW202203-202411

09113HANDLE, JACK

main09113-42030iXEAM10,YEAM15202203-202411

09151WRENCH, HUB BOLT BOX

main09151-42010iXEAM10,YEAM15202203-202411

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iXEAM10,YEAM15202203-202411

0915BPIN, WHEEL GUIDE

main0915B-53010iXEAM10,YEAM15202203-202411

44890DCOMPRESSOR ASSY, AIR

main44890-42050iXEAM10,YEAM15202203-202411

51960HOOK ASSY, FRONT

main51961-42060iXEAM10,YEAM15202203-202411

6101

C6048REPAIR SET, TIRE

main42606-42080iXEAM10,YEAM15202203-202411

10 parts on this diagram · 1 diagram in section
