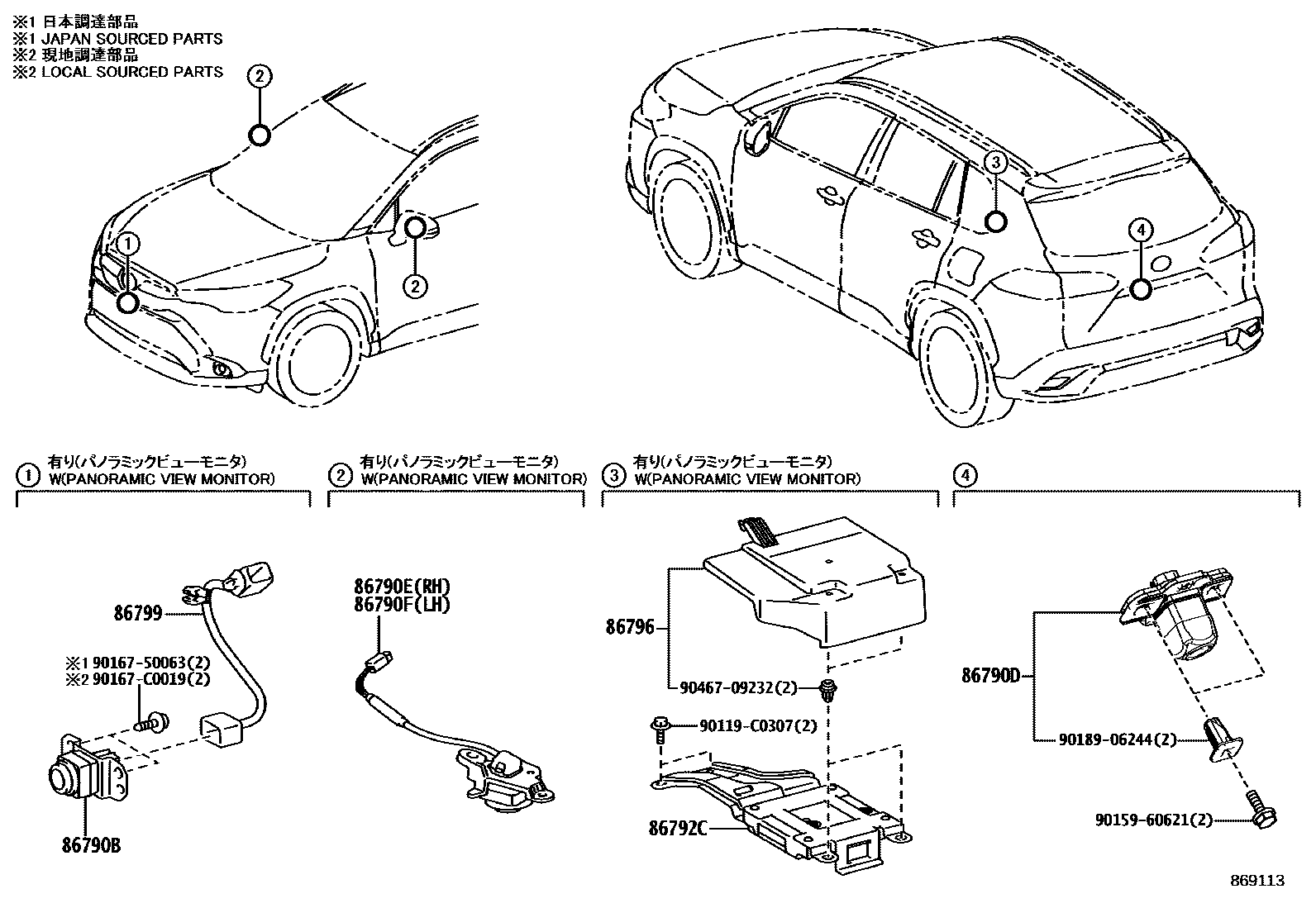

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86790BCAMERA ASSY, TELEVISION, FR

main86790-0A090iMXGA10..A,E202201-202304

main86790-0A190iMXGA10,MXGH10..E202304

86790DCAMERA ASSY, TELEVISION, RR

main86790-0A050iMXGA10..A,E,G202201-202304

main86790-0A180iMXGA10,MXGH10..E202304

main867B0-0A041iMXGA10,MXGH10..A,G202407

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-08150iMXGA10..A,E202201-202304

main86790-0A210iMXGA10,MXGH10..E202304

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-08140iMXGA10..A,E202201-202304

main86790-0A200iMXGA10,MXGH10..E202304

86792CCOMPUTER, PARKING ASSIST

main86792-0A040iMXGA10..A,E202201-202304

main86792-16100iMXGA10,MXGH10..E202304

86796COVER, COMPUTER PARKING ASSIST

main86796-0A060iMXGA10,MXGH10..E202304

main86796-47010iMXGA10..A,E202201-202304

86799WIRE, TELEVISION CAMERA

main86799-0A010iMXGA10..A,E202201-202304

main86799-0A030iMXGA10,MXGH10..E202304

90119C0307

main90119-C0307

9015960621

main90159-60621

9016750063

main90167-50063

90167C0019

main90167-C0019

9018906244

main90189-06244

9046709232

main90467-09232

13 parts on this diagram · 2 diagrams in section
