WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 1/2 0006 1ENGINE 2/2 0007 1ENGINE 1/2 0008 1ENGINE 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1INSTRUMENT PANEL 0012 1DOOR 0013 1FLOOR & ROOF 0014 1FLOOR & ROOF 0015 1HIGH VOLTAGE CABLE 0016 1SEAT 0017 1CLAMP & BRACKET 1/2 0018 1CLAMP & BRACKET 2/2 0019 1CONNECTOR 1/2 0020 1CONNECTOR 2/2

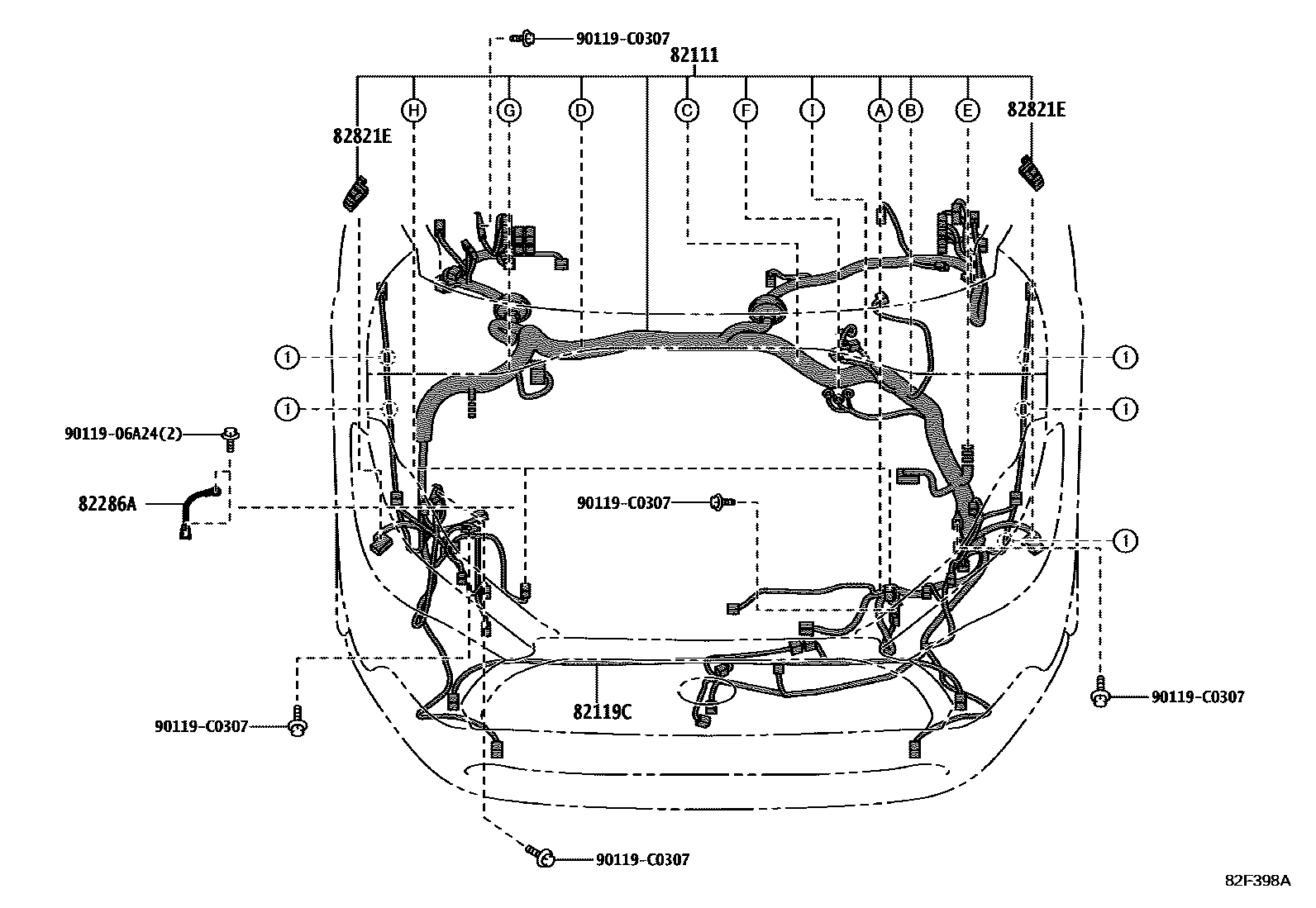

82111WIRE, ENGINE ROOM MAIN

main82111-0A490iMXGA10..J202304

main82111-0A500iMXGA10..N202304

main82111-0A600iMXGA10..G202201-202304

main82111-0AA60iMXGA10..N202201-202304

main82111-0AA70iMXGA10..J202201-202304

main82111-0AA80iMXGA10..E202201-202304

main82111-0AA90iMXGA10..A202201-202304

main82111-0AK40iMXGA10..G202304

main82111-0AK50iMXGA10..A202304

main82111-0AK60iMXGA10..E202304

main82111-0AK80iMXGH10..N202307

main82111-0AK90iMXGH10..G202307

main82111-0AL00iMXGH10..A202307

main82111-0AL10iMXGH10..E202307

82119CWIRE, ENGINE ROOM, NO.5

main82119-0A060iMXGA10..E202201-202304

82286AWIRE, EARTH, NO.2

main82286-F4070iMXGA10202201-202304

main82286-F4080iMXGH10202307

82821ECOVER, CONNECTOR

main82821-50780iMXGA10¥250202201-202304

9011906A24

main90119-06A24¥60

90119C0307

main90119-C0307

6 parts on this diagram · 20 diagrams in section
