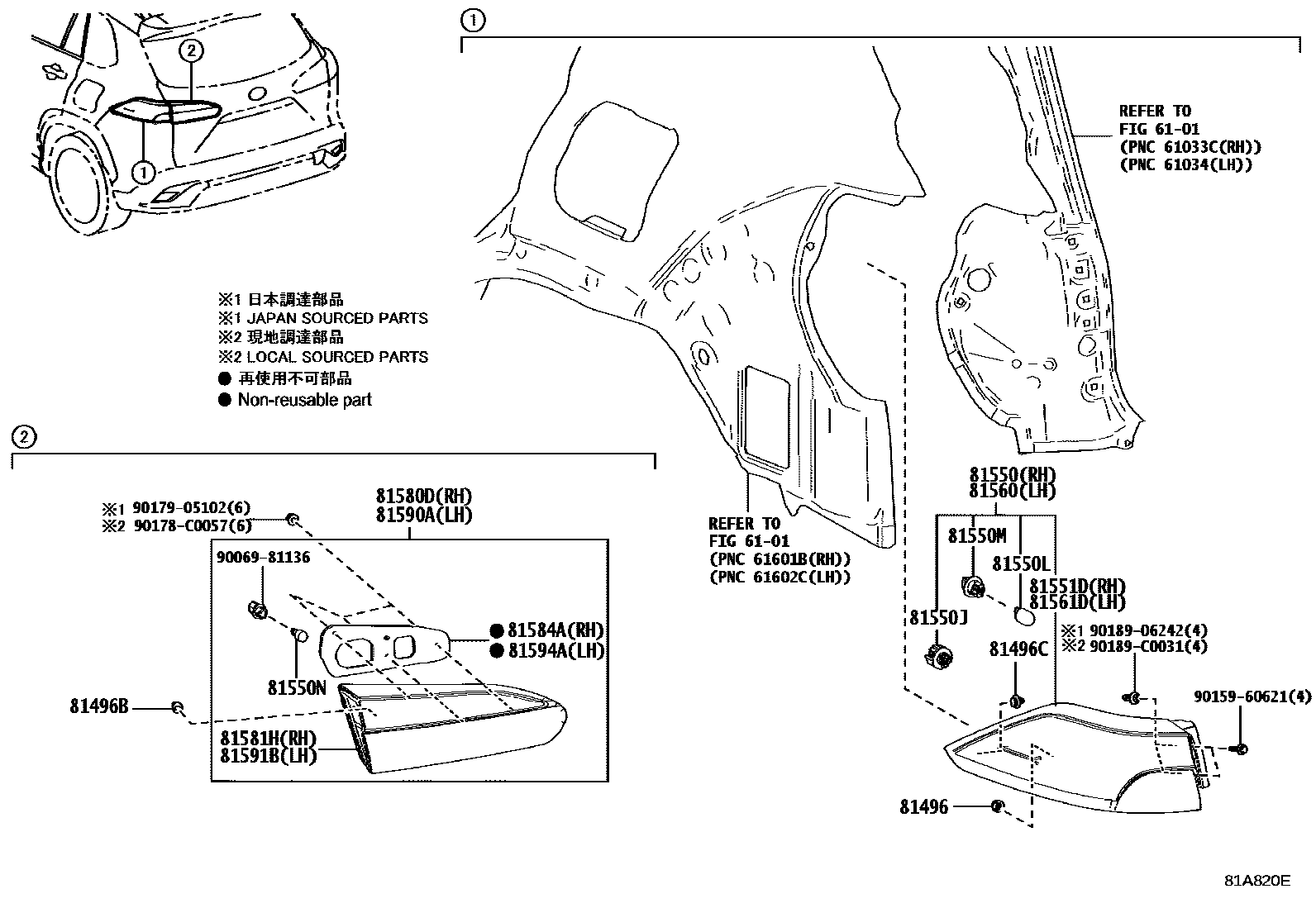

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030iMXGA10,MXGH10202201-202304

(L)

main81496-52020iMXGA10202201-202304

(J)

81496BGUIDE, REAR LAMP

main81496-0D030iMXGA10,MXGH10202201-202304

(L)

main81496-52020iMXGA10,MXGH10202201-202304

(J)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iMXGA10,MXGH10202201-202304

TYPE A

main90467-C0019iMXGA10,MXGH10202201-202304

TYPE B

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0A140iMXGA10..J,N202201-202304

main81550-0A150iMXGA10..A,E,G202201-202304

main81550-0A230iMXGH10..A,E,G202307

81550JSOCKET, TAIL & STOP LAMP

main90069-81135iMXGA10202201-202304

81550LBULB, REAR TURN SIGNAL LAMP

main90981-CB006iMXGA10202201-202304

12V 21W

main90981-CB009iMXGH10..A,E,G202307

12V 21W

81550MSOCKET, REAR TURN SIGNAL LAMP

main90069-81141iMXGA10202201-202304

81550NBULB, BACK UP LAMP

main90981-CB007iMXGA10202201-202304

12V 16W

main90981-CB010iMXGH10..A,E,G202307

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0A140iMXGA10..J,N202201-202304

main81551-0A150iMXGA10..A,E,G202201-202304

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0A140iMXGA10..J,N202201-202304

main81560-0A150iMXGA10..A,E,G202201-202304

main81560-0A230iMXGH10..A,E,G202307

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0A140iMXGA10,MXGH10..J,N202201-202304

main81561-0A150iMXGA10..A,E,G202201-202304

81580DLAMP ASSY, REAR, RH

main81580-0A120iMXGA10..J,N202201-202304

main81580-0A130iMXGA10..A,E,G202201-202304

main81580-0A132iMXGA10..A,E,G202304

main81580-0A230iMXGH10..A,E,G202307

81581HLENS & BODY, REAR LAMP

main81581-0A120iMXGA10..J,N202201-202304

main81581-0A130iMXGA10..A,E,G202201-202304

81584AGASKET, REAR LAMP RH

main81584-0A120iMXGA10202201-202304

main81584-0A230iMXGH10..A,E,G202307

81590ALAMP ASSY, REAR, LH

main81590-0A130iMXGA10,MXGH10..J,N202201-202304

main81590-0A140iMXGA10..A,E,G202201-202304

main81590-0A142iMXGA10..A,E,G202304

main81590-0A230iMXGH10..A,E,G202307

81591BLENS AND BODY, REAR LAMP, LH

main81591-0A130iMXGA10..J,N202201-202304

main81591-0A140iMXGA10..A,E,G202201-202304

81594AGASKET, REAR LAMP LH

main81584-0A130iMXGA10202201-202304

main81594-0A230iMXGH10..A,E,G202307

9006981136

main90069-81136

9015960621

main90159-60621

90178C0057

main90178-C0057

9017905102

main90179-05102

9018906242

main90189-06242

90189C0031

main90189-C0031

24 parts on this diagram · 2 diagrams in section
