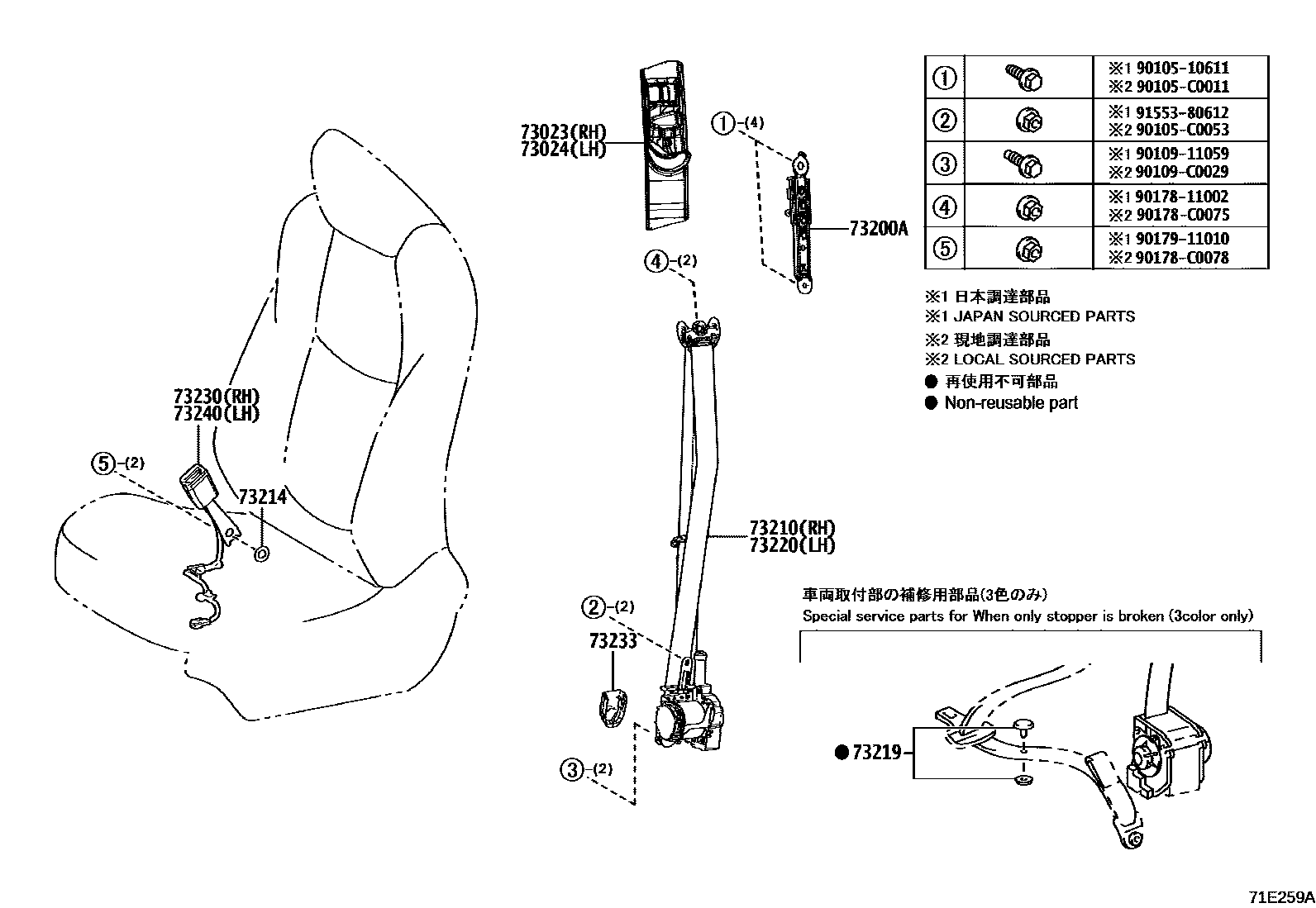

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02150-C0iMXGA10,MXGH10..G202304

BLACK,TRIM1#,2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02150-C0iMXGA10,MXGH10..G202304

BLACK,TRIM1#,2#,4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×2iMXGA10202201-202304

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02680-C0iMXGA10,MXGH10..G202304

BLACK,TRIM1#,2#,4#

main73210-0A040-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iMXGA10202201-202304

73219STOPPER, TONGUE PLATE

main73219-33010iMXGA10,MXGH10202304

BLACK

main73219-33020iMXGA10202201-202304

GRAY

main73219-33030iMXGA10,MXGH10202304

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02620-C0iMXGA10,MXGH10..G202304

BLACK,TRIM1#,2#,4#

main73220-0A040-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0A200-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0F010-C1×2iMXGA10,MXGH10..G202304

BLACK,TRIM1#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0A180-C0iMXGA10..J,N202201-202304

BLACK,TRIM1#,2#

main73230-0A190-C0iMXGA10,MXGH10..G202304

BLACK,TRIM1#,2#,4#

9010510611

main90105-10611

90105C0011

main90105-C0011

90105C0053

main90105-C0053

9010911059

main90109-11059

90109C0029

main90109-C0029

9017811002

main90178-11002

90178C0075

main90178-C0075

90178C0078

main90178-C0078

9017911010

main90179-11010

9155380612

main91553-80612

20 parts on this diagram · 2 diagrams in section
