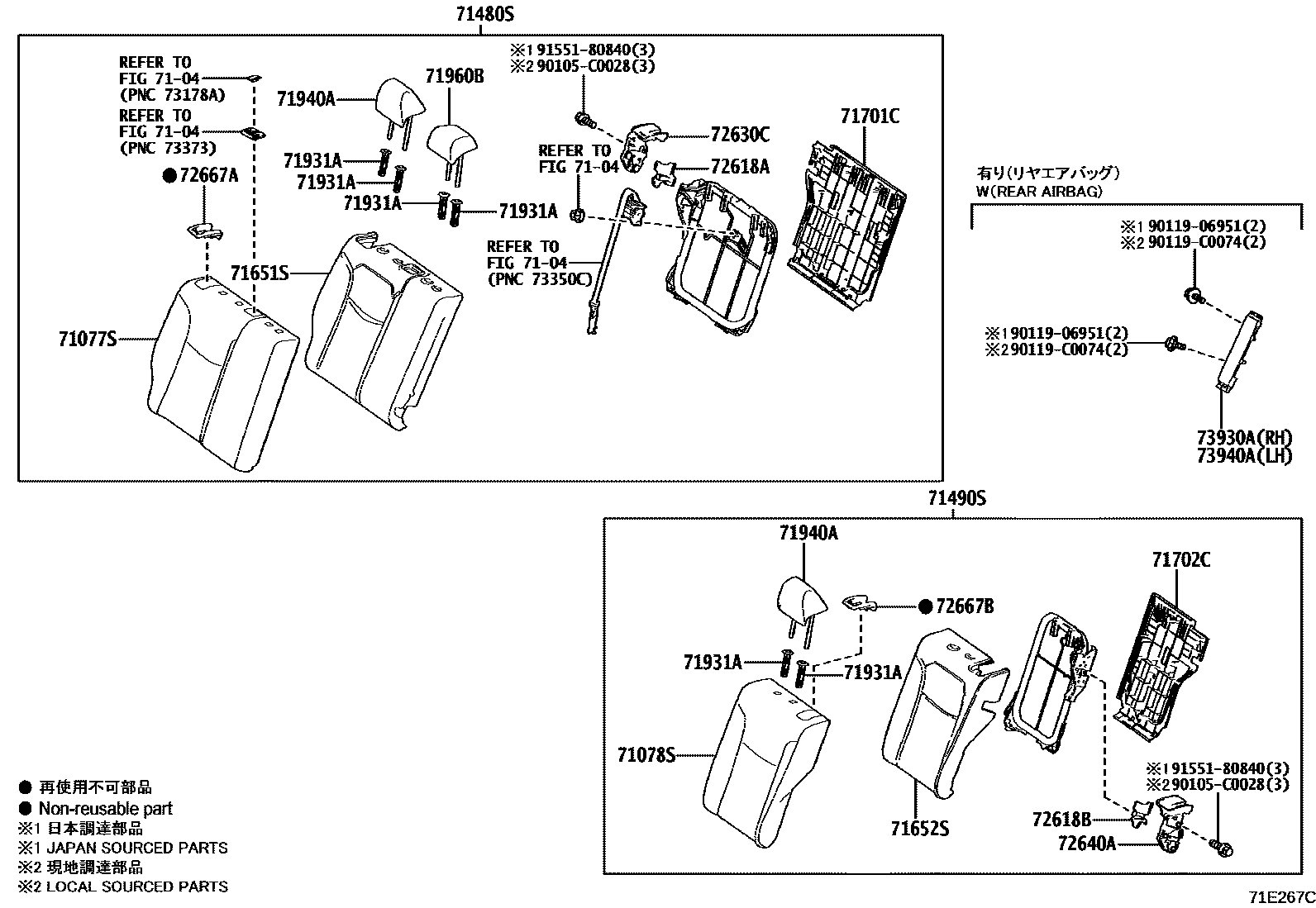

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION 0003 1SEAT CUSHION 0004 1FITTING PARTS 0005 1FITTING PARTS 0006 1CLIP

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0A300-B3iMXGA10..J,N202201-202407

LT. GRAY,TRIM1#

main71077-0A300-B3iMXGA10..J,N202407-202411

LT. GRAY,TRIM10

main71077-0A300-B4iMXGA10..J,N202407-202411

LT.GRAY/BLACK,TRIM10

main71077-0A300-C3iMXGA10..J,N202201-202407

BLACK,TRIM2#

main71077-0A300-C3iMXGA10..J,N202407-202411

BLACK,TRIM20

main71077-0A300-C4iMXGA10..J,N202407-202411

BLACK/BLACK,TRIM20

main71077-0A320-B4iMXGA10..A,E,G202201-202304

LT.GRAY,TRIM1#

main71077-0A320-B4iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM1#

main71077-0A320-B4iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main71077-0A320-C4iMXGA10,MXGH10..E,G202201-202304

BLACK,TRIM2#

main71077-0A320-C4iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#

main71077-0A320-C4iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71077-YL030-A0iMXGA10,MXGH10..A202304

CKD COLOR,TRIM4#

main71077-YL030-A0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,CKD COLOR,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0A140-B3iMXGA10..J,N202201-202407

LT. GRAY,TRIM1#

main71078-0A140-B3iMXGA10..J,N202407-202411

LT. GRAY,TRIM10

main71078-0A140-B4iMXGA10..J,N202407-202411

LT.GRAY/BLACK,TRIM10

main71078-0A140-C3iMXGA10..J,N202201-202407

BLACK,TRIM2#

main71078-0A140-C3iMXGA10..J,N202407-202411

BLACK,TRIM20

main71078-0A140-C4iMXGA10..J,N202407-202411

BLACK/BLACK,TRIM20

main71078-0A160-B4iMXGA10,MXGH10..E,G202201-202304

LT.GRAY,TRIM1#

main71078-0A160-B4iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM1#

main71078-0A160-B4iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main71078-0A160-C4iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#

main71078-0A160-C4iMXGA10..A,E,G202201-202304

BLACK,TRIM2#

main71078-0A160-C4iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71078-YL050-A0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,CKD COLOR,TRIM4#

main71078-YL050-A0iMXGA10,MXGH10..A202304

CKD COLOR,TRIM4#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-0A380-B3iMXGA10,MXGH10..J,N202201-202407

LT.GRAY,TRIM1#

main71480-0A380-B4iMXGA10..J,N202407-202411

LT.GRAY,TRIM10

main71480-0A380-B4iMXGH10..N202407

LT.GRAY,TRIM1#

main71480-0A380-B5iMXGA10..J,N202407-202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM10

main71480-0A380-C3iMXGA10,MXGH10..J,N202201-202407

BLACK,TRIM2#

main71480-0A380-C4iMXGA10..J,N202407-202411

BLACK,TRIM20

main71480-0A380-C4iMXGH10..N202407

BLACK,TRIM2#

main71480-0A380-C5iMXGA10..J,N202407-202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20

main71480-0A400-B4iMXGA10..A,E,G202201-202407

LT.GRAY,TRIM1#

main71480-0A400-B5iMXGA10,MXGH10..E,G202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main71480-0A400-B5iMXGA10,MXGH10..E,G202407

LT.GRAY,TRIM1#

main71480-0A400-B5iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM1#

main71480-0A400-C4iMXGA10,MXGH10..E,G202201-202407

BLACK,TRIM2#

main71480-0A400-C5iMXGA10,MXGH10..E,G202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#

main71480-0A400-C5iMXGA10,MXGH10..E,G202407

BLACK,TRIM2#

main71480-0A400-C5iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71480-YL070-E0iMXGA10,MXGH10..A202304-202407

CKD COLOR,TRIM4#

main71480-YL070-E1iMXGA10,MXGH10..G202407

CKD COLOR,TRIM4#

main71480-YL070-E1iMXGA10,MXGH10..A202407

FRONT BUMPER-STYLISH,CKD COLOR,TRIM4#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-0A200-B3iMXGA10,MXGH10..J,N202201-202407

LT.GRAY,TRIM1#

main71490-0A200-B4iMXGA10..J,N202407

LT.GRAY,TRIM1#

main71490-0A200-B4iMXGA10..J,N202407-202411

LT.GRAY,TRIM10

main71490-0A200-B5iMXGA10..J,N202407-202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM10

main71490-0A200-C3iMXGA10..J,N202201-202407

BLACK,TRIM2#

main71490-0A200-C4iMXGA10..J,N202407-202411

BLACK,TRIM20

main71490-0A200-C4iMXGA10..J,N202407

BLACK,TRIM2#

main71490-0A200-C5iMXGA10..J,N202407-202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20

main71490-0A220-B4iMXGA10,MXGH10..E,G202201-202407

LT.GRAY,TRIM1#

main71490-0A220-B5iMXGA10,MXGH10..G202407

LT.GRAY,TRIM1#

main71490-0A220-B5iMXGA10,MXGH10..E,G202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main71490-0A220-B5iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM1#

main71490-0A220-C4iMXGA10..A,E,G202201-202407

BLACK,TRIM2#

main71490-0A220-C5iMXGA10,MXGH10..E,G202407

BLACK,TRIM2#

main71490-0A220-C5iMXGA10,MXGH10..E,G202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#

main71490-0A220-C5iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71490-YL050-E0iMXGA10,MXGH10..A202304-202407

CKD COLOR,TRIM4#

main71490-YL050-E1iMXGA10,MXGH10..G202407

CKD COLOR,TRIM4#

main71490-YL050-E1iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,CKD COLOR,TRIM4#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0A100iMXGA10,MXGH10202201-202304

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0A060iMXGA10202201-202304

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-0A070-C0iMXGA10,MXGH10..E,J,N202201-202304

BLACK,TRIM1#,2#

main71701-0A070-C0iMXGA10,MXGH10..E,J,N202304

BLACK,TRIM1#,2#,4#

main71701-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM4#

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-0A060-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

main71702-0A060-C0iMXGA10,MXGH10..A202304

BLACK,TRIM4#

main71702-0A060-C0iMXGA10,MXGH10..A202304

BLACK,TRIM1#,2#,4#

71931ASUPPORT, REAR SEAT HEADREST

main71930-06070-B1iMXGA10202201-202304

W(LOCK),LT.GRAY,TRIM1#

main71930-06070-B1iMXGA10,MXGH10..G202407

W(LOCK),FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main71930-06070-C0iMXGA10,MXGH10..E,J,N202304

W(LOCK),BLACK,TRIM2#,4#

main71930-06070-C0iMXGA10202201-202304

W(LOCK),BLACK,TRIM2#

main71930-06070-C0iMXGA10,MXGH10..A202304

W(LOCK),BLACK,TRIM4#

main71930-06070-C0iMXGA10,MXGH10..G202407

W(LOCK),FRONT BUMPER-STYLISH,BLACK,TRIM2#,4#

main71931-06060-B1iMXGA10,MXGH10..G202407

W/O(LOCK),FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main71931-06060-B1iMXGA10202201-202304

W/O(LOCK),LT.GRAY,TRIM1#

main71931-06060-C0iMXGA10,MXGH10..G202304

W/O(LOCK),BLACK,TRIM2#,4#

main71931-06060-C0iMXGA10,MXGH10..G202201-202304

W/O(LOCK),BLACK,TRIM2#

main71931-06060-C0iMXGA10,MXGH10..E,J,N202304

W/O(LOCK),BLACK,TRIM4#

main71931-06060-C0iMXGA10,MXGH10..G202407

W/O(LOCK),FRONT BUMPER-STYLISH,BLACK,TRIM2#,4#

71940AHEADREST ASSY, REAR SEAT

main71940-0A131-B2iMXGA10..J,N202201-202407

LT.GRAY,TRIM1#

main71940-0A131-B2iMXGA10..J,N202407-202411

LT.GRAY,TRIM10

main71940-0A131-B3iMXGA10..J,N202407-202411

LT.GRAY/LT.GRAY,TRIM10

main71940-0A131-C2iMXGA10..J,N202201-202407

BLACK,TRIM2#

main71940-0A131-C2iMXGA10..J,N202407-202411

BLACK,TRIM20

main71940-0A131-C3iMXGA10..J,N202407-202411

BLACK/BLACK,TRIM20

main71940-0A151-A0iMXGA10,MXGH10..A202304

CKD COLOR,TRIM4#

main71940-0A151-A0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,CKD COLOR,TRIM4#

main71940-0A151-B1iMXGA10..A,E,G202201-202304

LT.GRAY,TRIM1#

main71940-0A151-B1iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM1#

main71940-0A151-B1iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main71940-0A151-C1iMXGA10..A,E,G202201-202304

BLACK,TRIM2#

main71940-0A151-C1iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#

main71940-0A151-C1iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0A130-B2iMXGA10..J,N202201-202407

LT.GRAY,TRIM1#

main71960-0A130-B2iMXGA10..J,N202407-202411

LT.GRAY,TRIM10

main71960-0A130-B3iMXGA10..J,N202407-202411

LT.GRAY/LT.GRAY,TRIM10

main71960-0A130-C2iMXGA10..J,N202201-202407

BLACK,TRIM2#

main71960-0A130-C2iMXGA10..J,N202407-202411

BLACK,TRIM20

main71960-0A130-C3iMXGA10..J,N202407-202411

BLACK/BLACK,TRIM20

main71960-0A140-A0iMXGA10,MXGH10..G202304

CKD COLOR,TRIM4#

main71960-0A140-A0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,CKD COLOR,TRIM4#

main71960-0A140-B1iMXGA10..A,E,G202201-202304

LT. GRAY,TRIM1#

main71960-0A140-B1iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT. GRAY,TRIM1#

main71960-0A140-B1iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,LT. GRAY,TRIM1#

main71960-0A140-C1iMXGA10..A,E,G202201-202304

BALCK,TRIM2#

main71960-0A140-C1iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,BALCK,TRIM2#

main71960-0A140-C1iMXGA10..J,N202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BALCK,TRIM2#

72618APROTECTOR, REAR SEATBACK LOCK STRIKER, RH

main72618-0A090iMXGA10202201-202304

72618BPROTECTOR, REAR SEATBACK LOCK STRIKER, LH

main72618-0A100iMXGA10202201-202304

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-0A050iMXGA10,MXGH10202201-202407

main72630-0A050-B0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main72630-0A050-B0iMXGA10,MXGH10..E,G,J,N202407

LT.GRAY,TRIM1#

main72630-0A050-C0iMXGA10,MXGH10..E,J,N202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#,4#

main72630-0A050-C0iMXGA10,MXGH10..G202407

BLACK,TRIM4#

main72630-0A050-C0iMXGA10,MXGH10..G202407

BLACK,TRIM2#,4#

main72630-0A050-C0iMXGA10,MXGH10..G202407

BLACK,TRIM2#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-0A050iMXGA10202201-202407

main72640-0A050-B0iMXGA10,MXGH10..E,G,J,N202407

LT.GRAY,TRIM1#

main72640-0A050-B0iMXGA10,MXGH10..E,G,J,N202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main72640-0A050-C0iMXGA10,MXGH10..G202407

BLACK,TRIM2#,4#

main72640-0A050-C0iMXGA10,MXGH10..A202407

BLACK,TRIM4#

main72640-0A050-C0iMXGA10,MXGH10..A202407

BLACK,TRIM2#

main72640-0A050-C0iMXGA10,MXGH10..A202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#,4#

72667ABEZEL, REAR SEATBACK LOCK, UPPER RH

main72667-0A090-B0iMXGA10202201-202304

LT.GRAY,TRIM1#

main72667-0A090-B0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main72667-0A090-C0iMXGA10,MXGH10..A202304

BLACK,TRIM2#,4#

main72667-0A090-C0iMXGA10,MXGH10..A202201-202304

BLACK,TRIM2#

main72667-0A090-C0iMXGA10,MXGH10..G202304

BLACK,TRIM4#

main72667-0A090-C0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#,4#

72667BBEZEL, REAR SEATBACK LOCK, UPPER LH

main72667-0A110-B0iMXGA10202201-202304

LT.GRAY,TRIM1#

main72667-0A110-B0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,LT.GRAY,TRIM1#

main72667-0A110-C0iMXGA10,MXGH10..E,J,N202304

BLACK,TRIM2#,4#

main72667-0A110-C0iMXGA10202201-202304

BLACK,TRIM2#

main72667-0A110-C0iMXGA10,MXGH10..A202304

BLACK,TRIM4#

main72667-0A110-C0iMXGA10,MXGH10..G202407

FRONT BUMPER-STYLISH,BLACK,TRIM2#,4#

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-0A040iMXGA10..E202201-202304

SRS AIR BAG-WITH(*DRP & KNEE & FR/RR SIDE & *CUSA)

main73930-0A040iMXGA10,MXGH10..E202304

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-0A040iMXGA10,MXGH10..E202304

main73940-0A040iMXGA10..E202201-202304

SRS AIR BAG-WITH(*DRP & KNEE & FR/RR SIDE & *CUSA)

90105C0028

main90105-C0028

9011906951

main90119-06951

90119C0074

main90119-C0074

9155180840

main91551-80840

24 parts on this diagram · 6 diagrams in section
