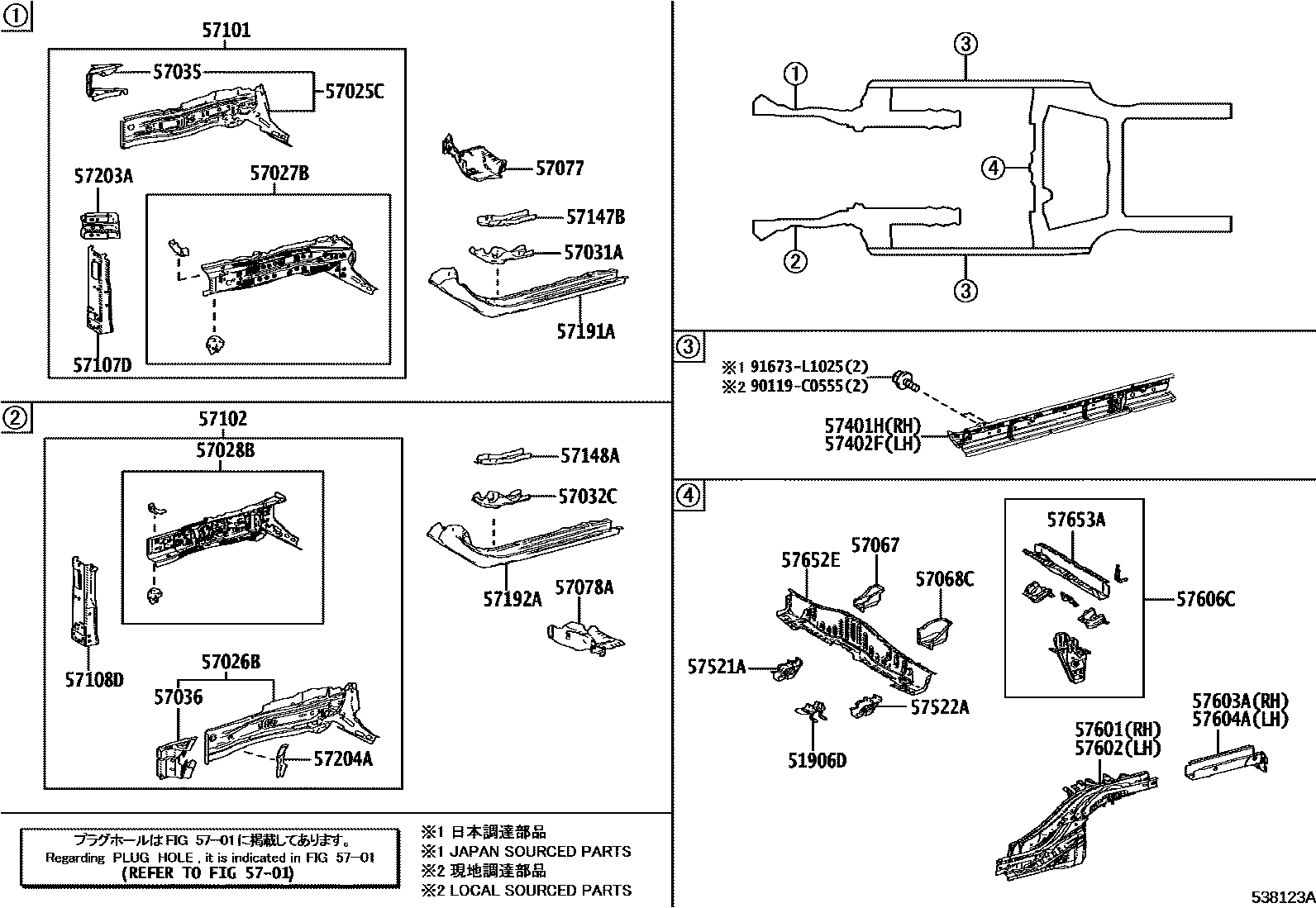

FLOOR SIDE MEMBER
51906DHANGER SUB-ASSY, EXHAUST PIPE, NO.6
5701
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57035PANEL SUB-ASSY, FRONT STEP, RH
57036PANEL SUB-ASSY, FRONT STEP, LH
57067BRACKET SUB-ASSY, FUEL TANK MOUNTING, NO.1
57068CBRACKET SUB-ASSY, FUEL TANK MOUNTING, NO.2
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57147BPLATE, FRONT SIDE MEMBER, REAR RH
57148APLATE, FRONT SIDE MEMBER, REAR LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57521ABRACKET, CENTER FLOOR CROSSMEMBER, RH
57522ABRACKET, CENTER FLOOR CROSSMEMBER, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57652EMEMBER, REAR FLOOR CROSS, NO.1
57653AMEMBER, REAR FLOOR CROSS, NO.2
90119C0555
main90119-C0555
91673L1025
main91673-L1025
37 parts on this diagram · 3 diagrams in section
