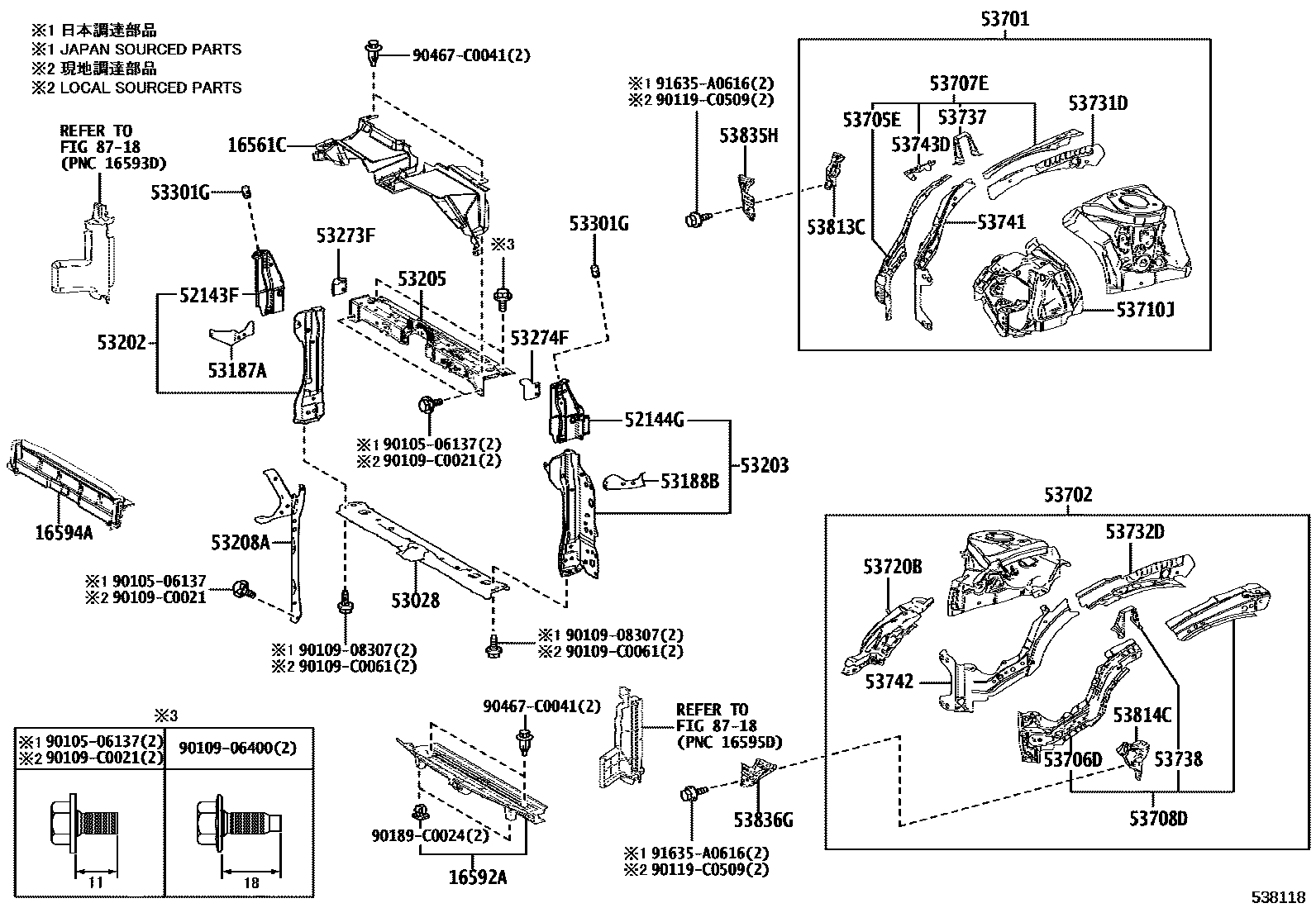

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT & FENDER APR0002 1DASH PANEL 0003 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-F2060iM20..MXGA10202201-202304

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F2110iM20..MXGA10202201-202304

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F2130iM20..MXGA10202201-202304

52143FBRACKET, FRONT BUMPER SIDE, RH

main52143-0A030iMXGA10202201-202304

52144GBRACKET, FRONT BUMPER SIDE, LH

main52144-0A030iMXGA10202201-202304

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-F4040iMXGA10202201-202304

53187ASTAY, RADIATOR SUPPORT, RH

main53187-0A030iMXGA10202201-202304

53188BSTAY, RADIATOR SUPPORT, LH

main53188-0A030iMXGA10202201-202304

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0A100iMXGA10202201-202304

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0A100iMXGA10202201-202304

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0A080iMXGA10202201-202304

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0A040iMXGA10202201-202304

53273FBRACKET, FRONT BUMPER RETAINER MOUNTING, RH

main53273-0A030iMXGA10202201-202304

53274FBRACKET, FRONT BUMPER RETAINER MOUNTING, LH

main53274-0A030iMXGA10,MXGH10202304

53301GCUSHION, HOOD BUMPER

main53384-0R090×2iMXGA10202201-202304

(L)

main90541-15037×2iMXGA10202201-202304

(J)

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0A100iMXGA10202201-202304

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0A090iMXGA10202201-202304

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-F4040iMXGA10202201-202304

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-F4040iMXGA10202201-202304

main53706-F4041iMXGA10,MXGH10202403

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-0A060iMXGA10202201-202304

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-0A060iMXGA10202201-202304

53710JAPRON ASSY, FRONT FENDER, RH

main53710-F4040iMXGA10202201-202304

53720BAPRON ASSY, FRONT FENDER, LH

main53720-F4040iMXGA10202201-202304

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-F4040iMXGA10202201-202304

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-F4040iMXGA10202201-202304

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-0A030iMXGA10202201-202304

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-0A030iMXGA10,MXGH10202304

53741PLATE, FRONT FENDER APRON WIND GUIDE, RH

main53741-F4040iMXGA10,MXGH10202304

53742PLATE, FRONT FENDER APRON WIND GUIDE, LH

main53742-F4040iMXGA10202201-202304

53743DREINFORCEMENT, FRONT FENDER APRON FRONT EXTENSION, RH

main53743-0A040iMXGA10202201-202304

53813CEXTENSION, FRONT FENDER, RH

main53813-F4040iMXGA10202201-202304

53814CEXTENSION, FRONT FENDER, LH

main53814-F4040iMXGA10202201-202304

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-0A030iMXGA10202201-202304

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-0A030iMXGA10202201-202304

8718

9010506137

main90105-06137

9010906400

main90109-06400

9010908307

main90109-08307

90109C0021

main90109-C0021

90109C0061

main90109-C0061

90119C0509

main90119-C0509

90189C0024

main90189-C0024

90467C0041

main90467-C0041

91635A0616

main91635-A0616

44 parts on this diagram · 3 diagrams in section
