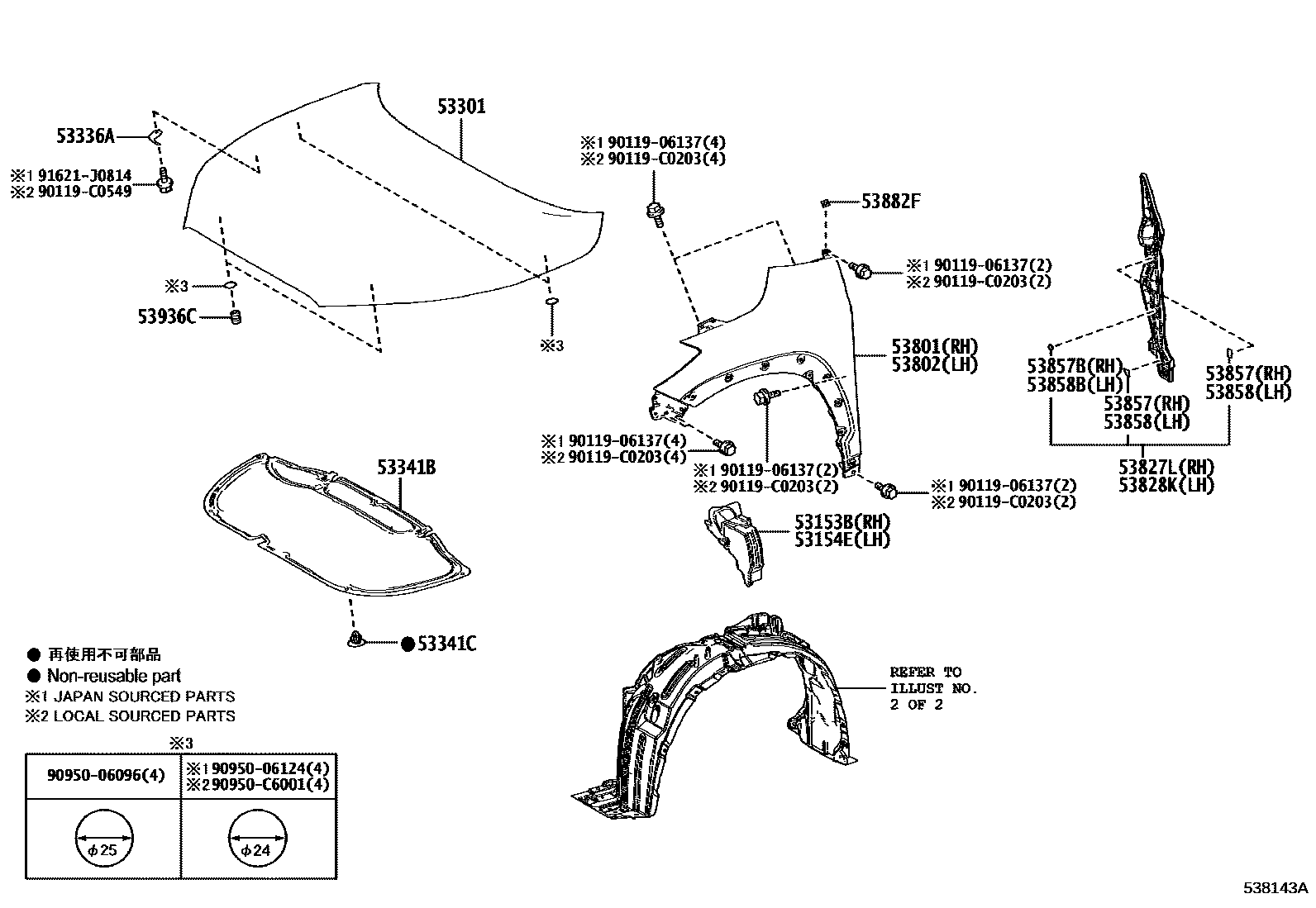

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-0A060iMXGA10,MXGH10202201-202304

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-0A060iMXGA10202201-202304

53301HOOD SUB-ASSY

main53301-0A080iMXGA10202201-202304

53336ABRACKET, HOOD STAY

main53336-0A050iMXGA10202201-202304

53341BINSULATOR, HOOD

main53341-0A060iMXGA10..A,E202201-202304

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMXGA10..A,E202201-202304

(J)

main90467-C0006iMXGA10..A,E202201-202304

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-0A040iMXGA10202201-202304

53802FENDER SUB-ASSY, FRONT LH

main53802-0A040iMXGA10202201-202304

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0A060iMXGA10202201-202304

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0A060iMXGA10,MXGH10202201-202304

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMXGA10,MXGH10202201-202304

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06020iMXGA10202201-202304

(L)

main53857-47011iMXGA10202201-202304

(J)

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMXGA10202201-202304

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06020iMXGA10202201-202304

(L)

main53857-47011iMXGA10202201-202304

(J)

53882FSEAL, FRONT FENDER

main53882-0D030iMXGA10,MXGH10202201-202304

(L)

main53882-33060iMXGA10202201-202304

(J)

53936CCUSHION

main90541-09145iMXGA10202201-202304

9011906137

main90119-06137

90119C0203

main90119-C0203

90119C0549

main90119-C0549

9095006096

main90950-06096

9095006124

main90950-06124

90950C6001

main90950-C6001

91621J0814

main91621-J0814

23 parts on this diagram · 2 diagrams in section
