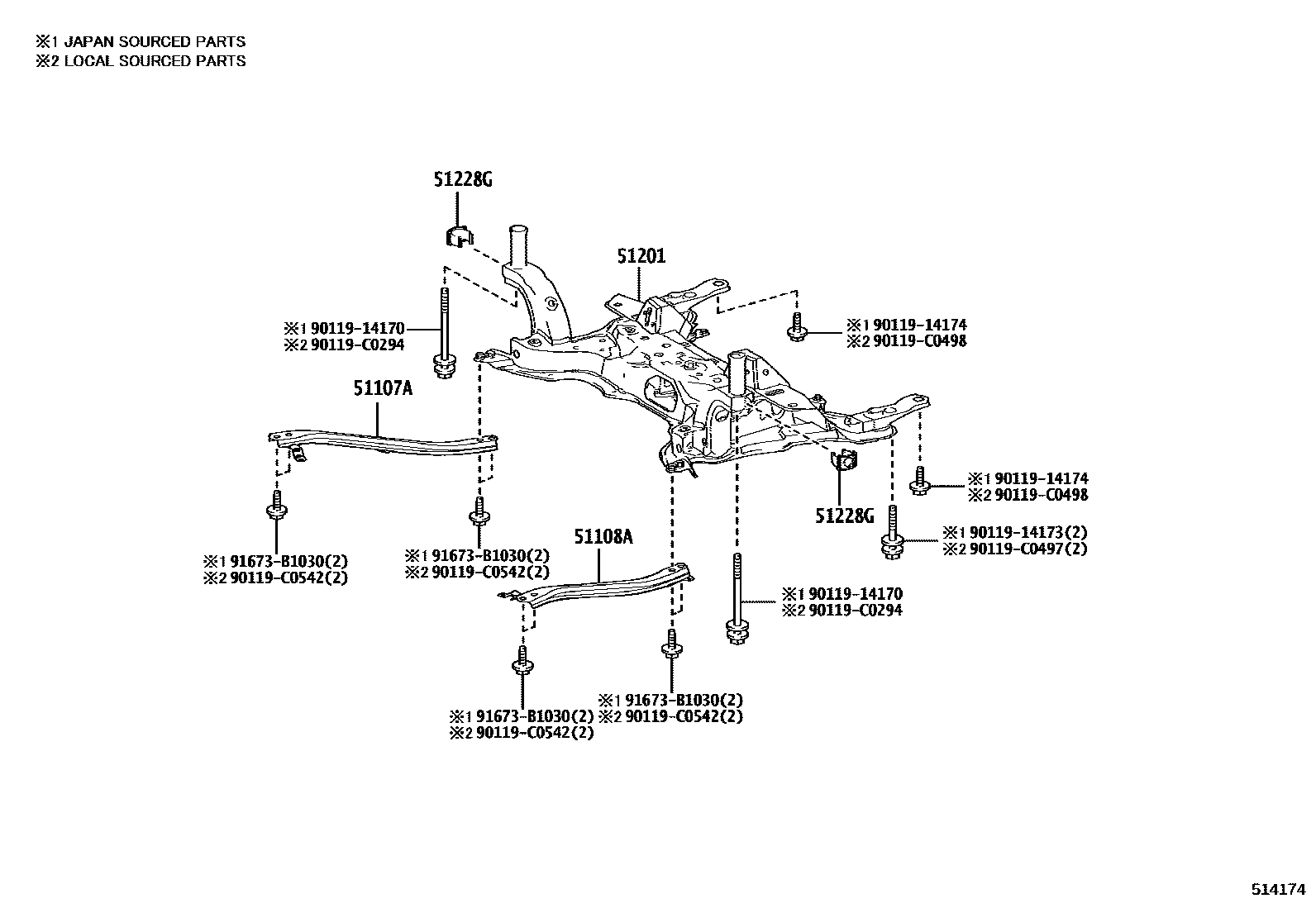

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-0A050iMXGA10202201-202304

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-0A050iMXGA10202201-202304

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-F4042iMXGA10202201-202304

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4040iMXGA10202201-202304

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

90119C0294

main90119-C0294

90119C0497

main90119-C0497

90119C0498

main90119-C0498

90119C0542

main90119-C0542

91673B1030

main91673-B1030

12 parts on this diagram · 2 diagrams in section
