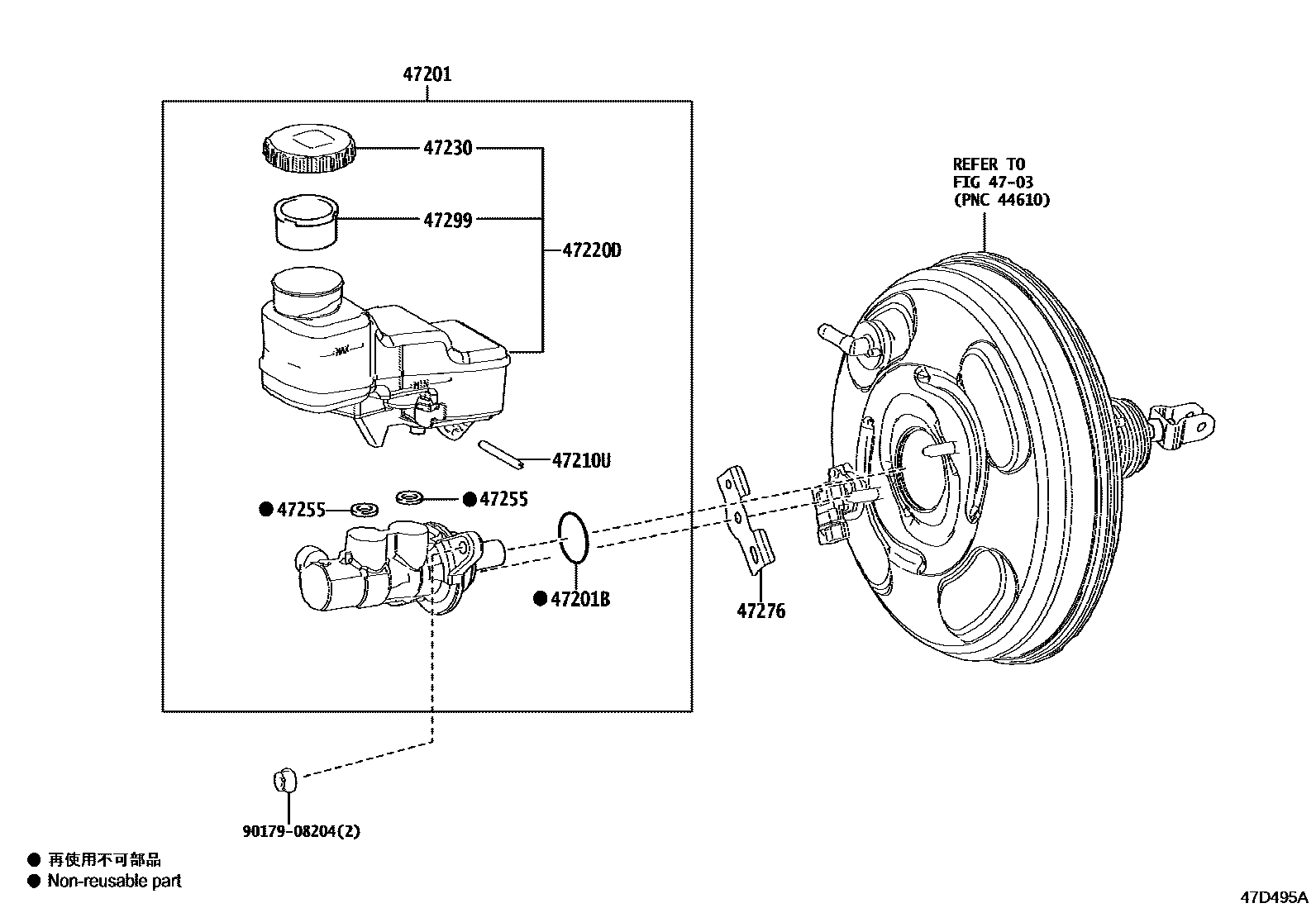

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-F4040iMXGA10202201-202304

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iMXGA10202201-202304

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iMXGA10202201-202304

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-02530iMXGH10202307

main47220-F4040iMXGA10202201-202304

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0R100iMXGA10202304

main47230-47090iMXGA10202201-202304

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iMXGA10202201-202304

47276BRACKET, BRAKE MASTER CYLINDER

main47276-F4020iMXGA10202201-202304

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMXGA10202201-202304

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
